Product Details:
|
| Viscosity Range: | 10 To 400 Mm²/s | Temperature Range: | -20°C To +80°C |
|---|---|---|---|
| Flow Capacity: | Up To 60 L/min | Max. Inlet Pressure: | 315 Bar |
| Nominal Size: | 10 Mm |
|
Parameter |
Specification |
|---|---|
|

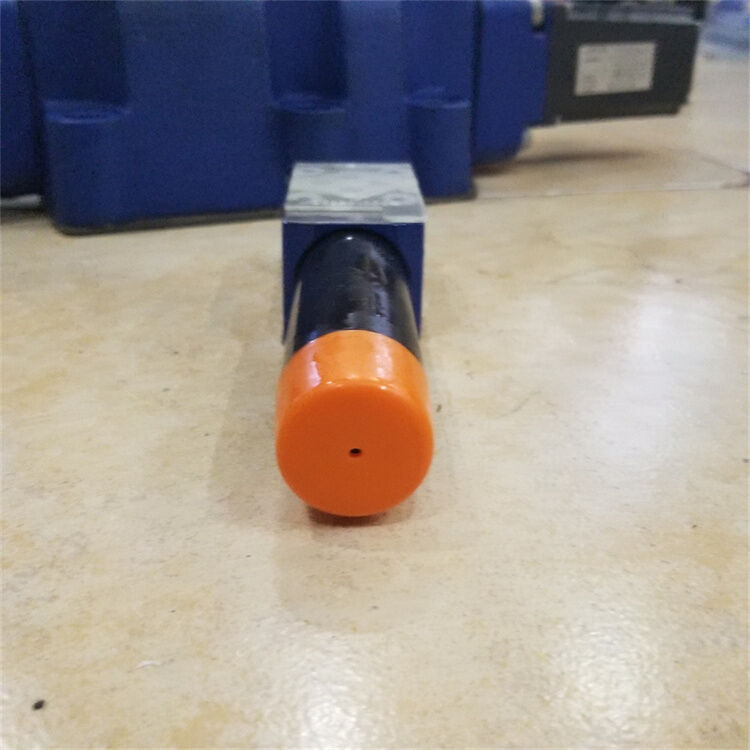

Model |
ZDR 10 D P2-5X/75YM |
|
Order No. |
R900410875 |
|
Type |
Direct-Acting, 3-port Pressure Reducing Valve |
|
Function |
Maintains Constant Secondary Pressure |
|
Nominal Size |
10 mm |
|
Secondary Pressure Range |
Up to 75 bar (Adjustable) |
|
Max. Inlet Pressure (Primary) |
315 bar |
|
Port Designation |
P (Primary Inlet), A (Secondary Outlet), T (Tank) |
|
Port Thread |
P, A, T: 7/8" - 14 UNF |
|
Mounting Interface |
Cartridge Style, Screw-In |
|
Pressure Adjustment |
Via External Screw and Lock Nut |
|
Pressure Medium |
Mineral Oil (HL, HLP per DIN 51524) |
|
Standard Seal Material |
FKM (Viton) |
|
Flow Capacity |
Up to 60 L/min (Dependent on Pressure Drop) |
|
Temperature Range |
-20°C to +80°C |
|
Viscosity Range |
10 to 400 mm²/s |
|
Leakage |
Internal Leakage to Tank (T) |
|
Special Feature |
Integral Over-Pressure Relief (A to T) |
![]()
| R900469594 ZDR6DP3-4X/25YMSO109 |
| R900469405 ZDR10VB5-3X/315YMV |
| R900468829 ZDR10VA4-3X/100Y |
| R900468696 ZDR6DP1-4X/75YMJ |
| R900464323 ZDR10VA6-3X/100Y |
| R900464178 ZDR10DA3-5X/150YM |
| R900463269 ZDR6DB2-4X/210YM |
| R900462912 ZDR10VB5-3X/200Y |
| R900461710 ZDR10DA1-5X/25YM |
| R900460490 ZDR10DA1-5X/150YM |
| R900459126 ZDR6DA2-4X/75YV |
| R900457561 ZDR6DA2-4X/75YMV |
| R900457313 ZDR6DA1-4X/210Y |
| R900457022 ZDR10VB5-3X/100Y |
| R900456019 ZDR6DP2-4X/75YMV/12 |
| R900455586 ZDR6DA3-4X/25YM |
| R900455057 ZDR6DA2-4X/150YSO75 |
| R900454116 ZDR10DA2-5X/150Y/12 |
| R900453668 ZDR6DP3-4X/25YMV |
| R900452815 ZDR6DP2-4X/75YMV |
| R900452728 ZDR10VP7-3X/200YM |
| R900451501 ZDR10VA4-3X/315Y |
| R900450354 ZDR10VP4-3X/315YM |
| R900450066 ZDR6DP1-4X/150YMV |
| R900449839 ZDR6DB2-4X/25YM |
| R900449433 ZDR10DA2-5X/210YV |
| R900449003 ZDR6DB2-4X/75YMSO43 |
| R900448839 ZDR6DP0-4X/40YMJVW80 |
| R900448506 ZDR6DA1-4X/75YM |
| R900448490 ZDR6DA3-4X/25Y |
| R900448143 ZDR6DP2-4X/25YMV |
| R900448079 ZDR6DA2-4X/25YM |
| R900447403 ZDR6DB2-4X/75YM/12 |
| R900445998 ZDR6DA3-4X/150Y |
| R900445958 ZDR6DA2-4X/150YM |
| R900445343 ZDR6DB1-4X/25YM |
| R900445288 ZDR6DA2-4X/210YV |
| R900444003 ZDR10VA5-3X/200Y |
| R900443484 ZDR10DB2-5X/210YM |
| R900442770 ZDR10DA1-5X/75Y/5 |
| R900442769 ZDR10DA1-5X/25Y/5 |
| R900442768 ZDR10DA1-5X/210Y/5 |
| R900442756 ZDR10DA1-5X/75YM |
| R900442678 ZDR10VA5-3X/315Y |
| R900442094 ZDR10VP4-3X/200YM |
| R900441887 ZDR10DB2-5X/75YMV |
| R900441492 ZDR10VP5-3X/200YMSO15 |
| R900441458 ZDR6DB1-4X/75YM |
| R900441104 ZDR10DB2-5X/75YM/5 |
| R900441081 ZDR6DA2-4X/75YM/12 |
| R900440960 ZDR6DA7-4X/150YM |
| R900440715 ZDR10DA3-5X/210YM |
| R900440306 ZDR6DB2-4X/25YM/12 |
| R900440131 ZDR10VA6-3X/100YV |
| R900439548 ZDR10DA2-5X/150YV |
| R900438840 ZDR10VP5-3X/315YM |
| R900438756 ZDR10DA2-5X/75Y/5 |
| R900438237 ZDR10VP6-3X/100YM |
| R900438181 ZDR10VA5-3X/200YV |
| R900438008 ZDR10DA2-5X/75Y |
| R901120744 ZDREE6VP1X-1X/80G24K31A1M |
| 0811J02182 ZDRE6VP1X-1X/180G24-25Z4M |
| 0811J02166 ZDREB10VP4X-1X/250YMG24-8Z4M |
| 0811J02165 ZDRE10VP2X-1X/180LG24-25Z4M-8 |
| 0811J02163 ZDREE10VP3X-1X/250YG24K0B5M |
| 0811A02182 ZDRE6VP1X-1X/180G24-25Z4M |
| 811402185 ZDREE6VP1X-1X/250G24K31A1M |
| 811402184 ZDRE6VP1X-1X/80G24-25Z4M |
| 811402181 ZDREE6VP4X-1X/250YG24K0B5M |
| 811402180 ZDREE6VP1X-1X/250YG24K0B5M |
| 811402174 ZDREB10VP3X-1X/250YMG24-8Z4M-6 |
| 811402173 ZDREB10VP2X-1X/250YMG24-8Z4M-6 |
| 811402172 ZDREB10VP4X-1X/250YMG24-8Z4M-6 |
| 811402171 ZDREB10VP3X-1X/250YMG24-8Z4M |
| 811402170 ZDREB10VP4X-1X/250YMG24-8Z4M-7 |
| 811402168 ZDREE10VP4X-1X/250YMG24K0B5M |
| 811402162 ZDREB10VP1X-1X/250YMG24-25Z4M |
| 811402160 ZDREB10VP2X-1X/180LG24-25Z4M |
| R961000702 DICHTUNGSSATZZDRK10V.-1X/VHV |
| R961000700 DICHTUNGSSATZZDR10V.-3X/VHV |
| R961000699 DICHTUNGSSATZZDR10V.-3X/HV |
Q: This valve is labeled as 10mm size with a 75 bar maximum. How does it compare to the 150Y model?
A: The key difference is the maximum adjustable secondary pressure. The ZDR10DP2-5X/75YM is limited to 75 bar, while the ZDR10DA2-5X/150Y goes up to 150 bar. Both are 10mm size, offering the same high flow capacity. The "P2" vs. "A2" in the code also indicates a different internal spool or performance characteristic. Select based on your required circuit pressure and the specific control curve needed.
Q: The adjustment mechanism has a screw and a lock nut. What is the correct procedure for setting the pressure?
A: The correct procedure is: 1) Loosen the lock nut. 2) With the system active and flow present in the secondary circuit, turn the adjustment screw (clockwise to increase, counter-clockwise to decrease pressure) while monitoring the pressure at the A port with a gauge. 3) Once the desired pressure is reached, hold the adjustment screw steady and securely tighten the lock nut against the valve body. This last step is critical to prevent vibration from changing the setting.
Q: I'm using this to supply a pilot circuit. Is the small constant flow to the T port a problem?
A: For a pilot circuit, the constant internal leakage (P to T) is typically not a functional problem, as pilot flows are usually low. However, it does represent a continuous energy loss and heat generation. If the pilot system is small and the pressure drop is high, this wasted energy can become significant. For the highest efficiency in a pilot circuit, a pilot-operated reducing valve or a dedicated, lower-flow valve might be more suitable.
Q: What could cause the secondary pressure to be unsteady or oscillate?
A: Pressure instability can be caused by: 1) Large fluctuations in the primary inlet pressure (P). 2) A very low or zero flow demand in the secondary circuit; the valve needs a minimum flow to regulate stably. 3) Contamination causing the spool to stick and slip. 4) Excessive backpressure in the tank line (T port), which interferes with the valve's ability to relieve over-pressure. Ensure clean oil, a stable primary pressure, and a free tank return.
Q: The valve is installed, but the downstream equipment isn't getting any pressure. What should I check?
A: Follow this basic checklist: 1) Primary Pressure: Is there adequate pressure at the P port? 2) Valve Setting: Is the adjustment screw turned in enough (clockwise)? It may be set to nearly zero bar. 3) Tank Line: Is the T port connection blocked or under extremely high backpressure? This can prevent the valve from opening. 4) Installation: Is the cartridge installed in the correct orientation? Are the P and A ports connected to the right lines? 5) Mechanical Fault: Is the valve spool stuck due to contamination? Try operating the manual override (if equipped) or gently tapping the valve body.
