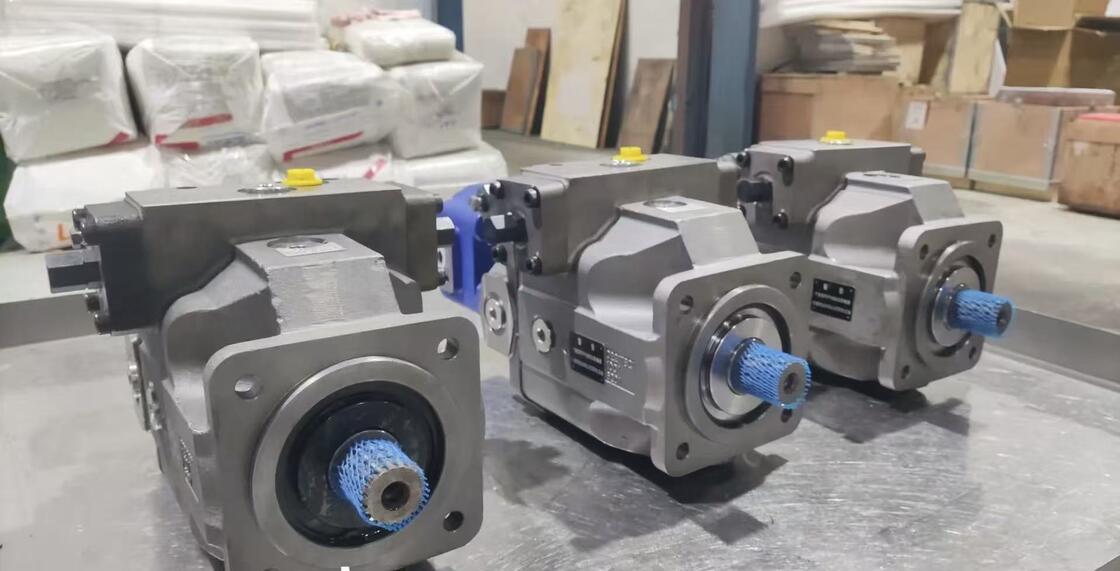

A4VSO500DR/30L-PPB13N00 Hydraulic motor, German Rexroth piston pump, water pump

🔍 Model Code Breakdown

A4VSO  500   DR   /   30   L   -   PPB13   N00
 │      │    │        │   │       │       └── No through-drive
 │      │    │        │   │       └── PPB13: SAE flanged ports / metric screws / Series 13
 │      │    │        │   └── L: Counter-Clockwise (CCW) viewed from shaft end
 │      │    │        └── 30: Series code (size group / design generation)
 │      │    └── DR: Pressure Compensator (constant pressure), local mechanical adjustment
 │      └── 500 cm³/rev geometric displacement
 └── A4VSO: Open Circuit Variable Axial Piston Pump (Heavy-Duty Industrial)

FAQ — Frequently Asked Questions (In-Depth)

Q1: Can this A4VSO500DR be used as a hydraulic motor? Can it pump water?

A:

• ❌ Not usable as a motor:​ The A4VSO is designed exclusively as a pump for open-circuit operation. Driving it in reverse as a motor will not produce useful torque and will cause internal damage.

• ❌ Strictly prohibited for pumping water:​ Axial piston pumps rely on oil film lubrication between moving parts (pistons/cylinder barrel/valve plate). Water will:

  • Destroy lubrication → immediate seizure of copper-steel friction pairs

  • Cause corrosion and rusting of precision surfaces

  • Swell standard NBR seals, causing leakage

  • For high-pressure water applications, use dedicated plunger pumps or centrifugal pumps — never a hydraulic piston pump.

Q2: What is the difference between DR, DFR, and LR2 control? When should I choose DR?

A:

• DR (this model):​ Pressure compensator only. Below set pressure → full flow; at set pressure → pump de-strokes to maintain constant pressure (delivering only leakage compensation flow). Best for:​ Simple pressure-limiting systems (presses, power units) where load sensing is not needed.

• DFR / LR2:​ Adds Load Sensing (LS)​ function. The pump maintains a constant differential pressure (∆p ≈ 14–18 bar) between pump outlet and the LS signal from the valve bank, delivering only the flow demanded by the system. Best for:​ Multi-actuator valve-controlled systems (injection molding, machine tools) where energy saving matters.

• When to choose DR:​ Your system has no LS signal line, requires only pressure limitation, or simplicity/reliability is prioritized over energy efficiency.

Q3: How do I verify counter-clockwise rotation (30L)? What happens if I run it backward?

A:

• L = Counter-Clockwise (CCW):​ Facing the drive shaft end (coupling side looking into the pump), the shaft must rotate counter-clockwise.

• Verify by checking the motor/engine rotation arrow (usually stamped on the fan cover) or perform a brief jog test.

• ❌ Reverse rotation will cause catastrophic failure within seconds:

  • The internal port plate is asymmetrical — reverse rotation misaligns suction and pressure ports

  • Lubrication passages are directional — loss of lubrication causes immediate seizure

  • Cavitation and dry running destroy the cylinder barrel/piston assembly

  • If rotation is wrong, swap motor phases or replace with an "R" (clockwise) pump. Never attempt to run in reverse.

Q4: What are the critical suction (inlet) requirements for this 500 cc pump?

A:​ Large displacement pumps are extremely sensitive to inlet conditions:

1. Minimum absolute inlet pressure ≥ 0.8–1.0 bar​ (gauge ≈ −0.2 to −0.1 bar max vacuum).

2. For speeds above 1200 rpm, a boost pump / charge pump​ providing 1.5–2 bar positive head is strongly recommended.

3. Suction line design:

   • Inner diameter ≥ DN80 (DN100 preferred)

   • Length as short as possible (< 1.5 m), minimize elbows

   • Dedicated 100 mesh (149 µm) suction strainer with pressure loss < 0.05 bar

4. Tank outlet should be above pump inlet or submersion depth > 300 mm.

   Cavitation symptoms: high-frequency noise, pitting on valve plate, flow reduction, premature bearing failure.

Q5: How should the case drain be connected? What if I ignore it?

A:

• Case drain carries internal leakage for cooling and flushing wear debris.

• Must be routed via a dedicated line directly to the reservoir​ (no shared return lines).

• Backpressure must be ≤ 0.5 bar (ideally 0 bar). The second drain port must be plugged.

• ❌ Never:

  • Block the drain port

  • Connect to a pressurized return line

  • Share a long small-diameter return line with other components

  • Consequence of blocked/pressurized drain:​ Housing pressure buildup → shaft seal blowout, valve plate distortion, bearing overheating, and total pump failure.

Q6: What drive motor power is required?

A:​ At 350 bar / 1200 rpm / full displacement:

• Hydraulic power Pₕ = (500 × 10⁻⁶ × 350 × 1200) ÷ 600 ≈ 350 kW

• Including mechanical efficiency (η ≈ 0.90–0.92) → shaft input ≈ 380–390 kW

➡ Recommended drive:​ 400 kW (≈535 HP)​ electric motor with:

• Adequate starting torque for 400 bar peak conditions

• S1 continuous duty rating

• Speed matching the pump's optimal range (avoid prolonged operation below 750 rpm)

Q7: Can standard NBR seals handle HFC (Water Glycol) or HFD (Phosphate Ester)?

A:

• ✅ HFC (Water Glycol):​ NBR is acceptable but requires:

  • Pressure/temperature derating per Rexroth guidelines (typically pressure × 0.8, Tmax limit +5 °C)

  • Reduced lubricity of HFC → shorter oil change intervals

• ❌ HFD (Phosphate Ester):​ NBR will swell and degrade rapidly → FKM (Viton) seals are mandatory​ (specify /V suffix or FKM option when ordering)

• Mineral oil (HL/HLP)​ is the standard intended fluid for this model — no special measures needed.

Q8: What are the essential commissioning steps?

A:

1. Fill and vent:​ Loosen case drain fitting and high-pressure port bleed screw. Manually rotate shaft while filling until oil emerges without bubbles.

2. Confirm case drain return:​ Verify drain line is connected to tank and unobstructed.

3. Jog for rotation check:​ Briefly energize motor to confirm CCW (L) rotation. Listen for abnormal noise.

4. Low-pressure run-in:​ Back off DR adjustment screw (reduce pressure setting). Run at low pressure while cycling system to purge air.

5. Gradual pressurization:​ Slowly turn DR screw clockwise to raise pressure to target. Monitor noise, temperature, and case drain flow.

6. Lock and record:​ Once set, tighten lock nut and record the pressure setting for future reference.
