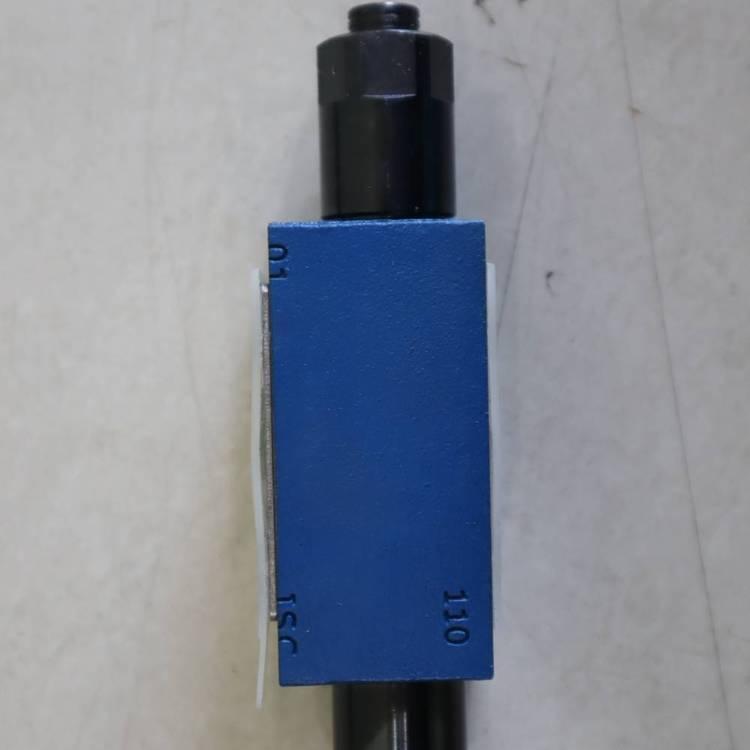

R900523578 Z2FS10A5-3X/S2V Double one-way throttle valve from Rexroth, Germany

I'm Online Chat Now

R900523578 Z2FS10A5-3X/S2V Double one-way throttle valve from Rexroth, Germany

R900523578  Z2FS10A5-3X/S2V Double one-way throttle valve from Rexroth, Germany
R900523578  Z2FS10A5-3X/S2V Double one-way throttle valve from Rexroth, Germany

Large Image :  R900523578 Z2FS10A5-3X/S2V Double one-way throttle valve from Rexroth, Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: R900523578 Z2FS10A5-3X/S2V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100

R900523578 Z2FS10A5-3X/S2V Double one-way throttle valve from Rexroth, Germany

Description
Max. Flow Rate​: 160 L/min​ Max. Operating Pressure​: 315 Bar​
Porting Pattern​: ISO 4401-05-04-0-05 / DIN 24340 Form A Mounting Bolts​: 4 × M6 (ISO 4762, Grade 10.9)
Weight​: Approx. 3.1 Kg​
Highlight:

Rexroth double one-way throttle valve

,

Z2FS10A5-3X/S2V hydraulic valve

,

Rexroth throttle valve with warranty

Parameter Category

Parameter

Specification

General Information

Brand / Model

Rexroth (Germany), Z2FS10A5-3X/S2V


Order Code (Material No.)

R900523578


Valve Type

Twin Throttle Check Valve, Sandwich Plate Design

Performance Parameters

Nominal Size

NG10 (D05 / ISO 4401-05)


Max. Operating Pressure

315 bar


Max. Flow Rate

160 L/min


Throttle Function

One-way throttling A→A₂ / B→B₂, free return flow opposite direction


Version

S2​ = Both A & B ports throttled (Main Flow Limitation), fine-thread adjustment

Mechanical Interface

Mounting Style

Sandwich Plate​ (between directional valve and subplate)


Porting Pattern

ISO 4401-05-04-0-05 / DIN 24340 Form A


Mounting Bolts

4 × M6 (ISO 4762, Grade 10.9)


Adjustment Type

Spindle with Internal Hex & Scale + Lock Nut + Protective Cap ("5" code)


Weight

Approx. 3.1 kg

Media & Environment

Seal Material

FKM (Viton®)​ — suffix V


Compatible Fluids

Mineral Oils (HL/HLP), HFC (Water Glycol), HFD (Phosphate Ester — with FKM)


Operating Temp. Range

-20°C to +80°C​ (with FKM seals)


Fluid Cleanliness

ISO 4406 20/18/15​ or cleaner
