353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC
353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC 353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

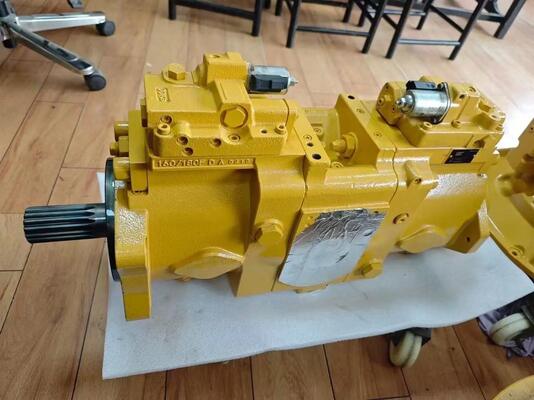

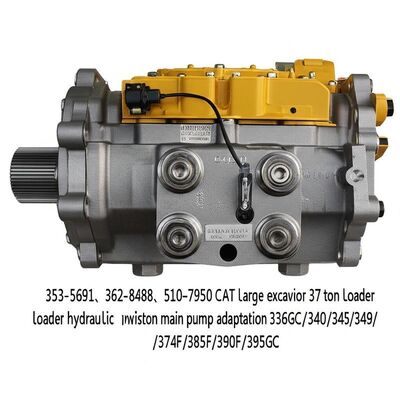

Large Image :  353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 353-5691、362-8488、510-7950
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

Description
Mounting Standard: SAE A/B/C/D, Custom Flange/foot Mounting For Special Equipment Rated Pressure: 21–38 MPa (custom High-pressure Versions Up To 42 MPa For Mining Equipment)
Main Pumps, Pilot Pumps: Confirm Base Plate Dimensions And Bolt Hole Positions Before Customization Oil Cleanliness Grade: Standard: NAS 9; Custom High-purity: NAS 6 (for Precision Control Systems)
All Pump Types: Splined Shafts Offer Better Torque Transmission For Heavy-duty Applications Displacement Range: 8.2–280 Cc/r (adjustable For Variable-displacement Pumps)
Parameter Category: Customizable Options
Highlight:

CAT excavator hydraulic pump 37 ton

,

axial piston main pump 336GC

,

Carter hydraulic pump 390F compatibility

CAT Large Excavator Hydraulic Pump - 353-5691, 362-8488, 510-7950

Axial piston main pump designed for 37-ton loaders and large excavators. Compatible with CAT 336GC, 340, 345, 349, 374F, 385, 390F, and 395GC models.

Technical Specifications
Pump Type OEM Part Number Applicable Equipment Displacement (cc/r) Rated Pressure (MPa) Rotation Direction
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise
Gear Pump (Pilot) 560-0886 Full Range Excavators 8.2 21 Clockwise
Axial Piston Pump 295-9426 349 Series 160 36 Clockwise
353-5691、362-8488、510-7950 CAT large excavator 37 ton loader hydraulic pump axial piston main pump adaptation 336GC/340/345/349/374F/385/390F/395GC 0
Complete Pump System Compatibility
Small Excavators (3-10 tons)

Main Pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

Adaptation: 305.5E/306E/307D/308E/312D/317, etc.

Pilot/Gear Pumps: 126-2016, 284-3536

Medium Excavators (20-36 tons)

Main Pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102

Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.

Rotary Pumps: 204-4916, 204-4922

Pilot/Gear Pumps: 175-6253, 397-6960

Large Excavators (over 37 tons)

Main/Rotary Pumps: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc.

Pilot/Gear Pumps: 564-9801, 234-4638

Loader/Backhoe Applications

Main Pumps: 307-3063 CA3073063, 20R-6569, 161-6634, 235-4110, 100-3259, 121-7385

Adaptation: 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Pilot/Gear Pumps: 175-6253, 397-6960

Bulldozer Applications

Main Pumps: 9T-8647, 9T-8346, 100-6239/OR-7677, 9J-5068, 9T-8647, 6E-5072

Adaptation: D7R/H, D8N/R, D9R, 140G, etc.

Gear Pumps: 9T-1318, 104-1752

Frequently Asked Questions
Can a CAT hydraulic pump's rotation direction be reversed?
No, most CAT pumps are designed for fixed clockwise rotation (viewed from the drive shaft end), and reversing may cause internal damage.
What is the role of a pilot pump in CAT equipment?
The pilot pump supplies low-pressure hydraulic oil to control valves, enabling operator control of equipment movements (e.g., boom lift, bucket tilt).
How often should CAT hydraulic pump filters be replaced?
Follow the equipment maintenance schedule—typically every 500-1000 operating hours, or sooner in harsh working conditions.
What is the application of CAT pump part number 307-3063?
307-3063 is an axial piston pump designed for CAT loaders/backhoes (e.g., 415F/416F), not for excavators.
What temperature range can CAT hydraulic pumps operate in?
The optimal operating temperature is 50-80°C; prolonged operation below 10°C or above 90°C will reduce pump life.
