584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H

584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H
584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H 584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H

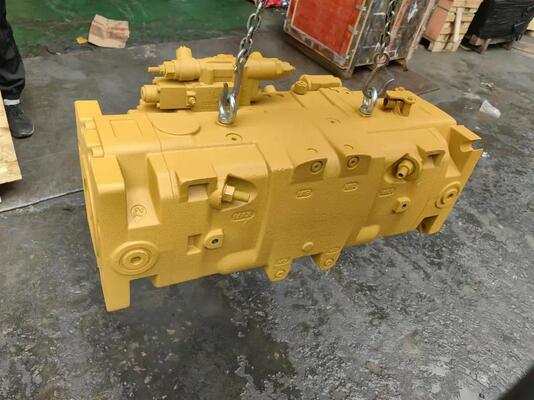

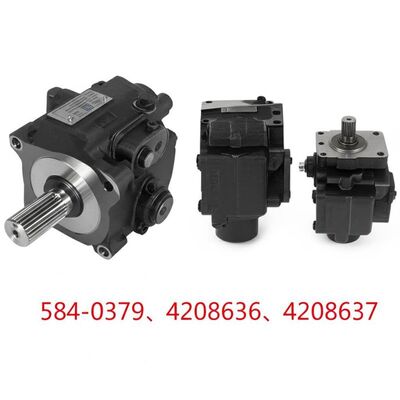

Large Image :  584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 584-0379、4208636、4208637
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H

Description
Applicable Pump Types: Application Notes Axial Piston Pumps, Gear Pumps: Match Displacement To Equipment Power Demand; Higher Cc/r = Larger Flow Rate
Main Axial Piston Pumps: Overpressure Customization Requires Reinforced Internal Components All Pump Types: CCW Pumps Need Matched Drive System And Control Valve Adjustments
Main Pumps, Pilot Pumps: Confirm Base Plate Dimensions And Bolt Hole Positions Before Customization
Highlight:

CAT mining hydraulic pump

,

heavy equipment piston pump

,

Carter gear pump adapter

CAT Mining Heavy Equipment Hydraulic Pump - Axial Piston Main Pump & Gear Pump Pilot Adaptation
Part Numbers: 584-0379, 4208636, 4208637
Compatible with: 374F, 6015B, 988G, 966H
Technical Specifications
Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction Mounting Standard
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise SAE A
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise SAE B
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise SAE C
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise SAE D
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise SAE B
584-0379、4208636、4208637 CAT mining heavy equipment hydraulic pump axial piston main pump gear pump pilot adaptation 374F, 6015B, 988G, 966H 0
1. Mini Excavators

Main Pump: 487-6207 CA4876207, 566-7021, 241-7972, 163-9762, 241-9299

Adaptation: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc.

Pilot/Gear Pump: 560-0886, 211-6626

2. Small Excavators (3-10 tons)

Main Pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

Adaptation: 305.5E/306E/307D/308E/312D/317, etc.

Pilot/Gear Pump: 126-2016, 284-3536

3. Medium Excavators (20-36 tons)

Main Pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102

Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.

Rotary Pumps: 204-4916, 204-4922

Pilot/Gear Pump: 175-6253, 397-6960

4. Large Excavators (over 37 tons)

Main Pump/Rotary Pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc.

Pilot/Gear Pump: 564-9801, 234-4638

5. Loaders & Backhoe Loaders

Main Pump: 307-3063 CA3073063, 20R-6569, 161-6634, 235-4110, 100-3259, 121-7385

Adaptation: 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Pilot/Gear Pump: 175-6253, 397-6960

Frequently Asked Questions
Q1: How to test a Cat hydraulic pump for internal leaks?
A: Perform a pressure holding test: close the outlet valve, maintain pressure for 5 minutes, and check if the pressure drops beyond the allowable range (leaks indicate internal wear).
Q2: What is the application of Cat pump part number 550-4341?
A: 550-4341 is a main pump suitable for mid-to-large excavators like 336GC/340/345GC.
Q3: Can using the wrong hydraulic oil viscosity damage the pump?
A: Yes—oil with too high viscosity increases startup load and friction, while too low viscosity reduces lubrication and causes internal wear.
Q4: What is the warranty period for a new Cat OEM hydraulic pump?
A: The standard warranty period for new Cat OEM pumps is 12 months or 2,000 operating hours, whichever comes first, when installed by an authorized dealer.
Q5: How to dispose of a damaged Cat hydraulic pump?
A: Contact an authorized Cat service provider or a qualified waste disposal company to ensure compliance with local environmental regulations for hydraulic component disposal.
