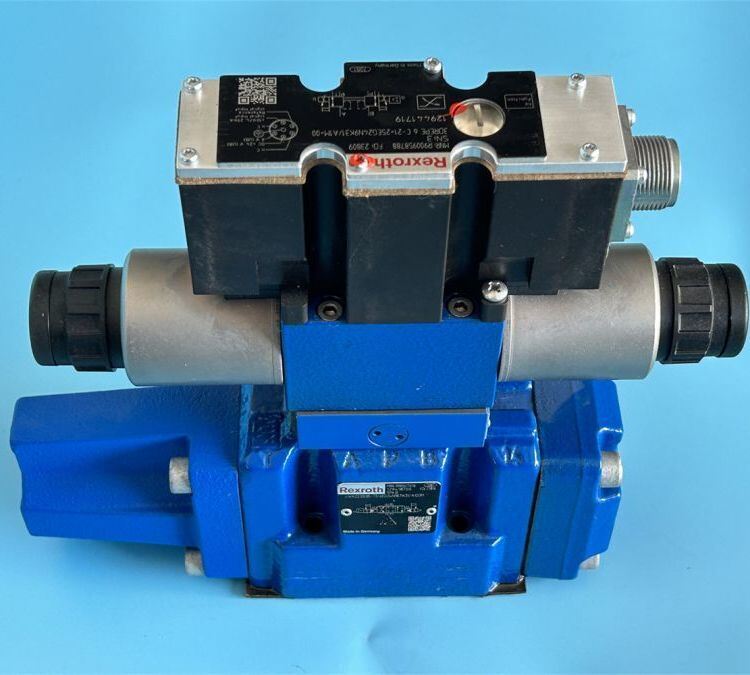

R900753984 4WRZE16E1-150-7X/6EG24N9ETK31/F1M Rexroth hydraulic proportional directional valve

Key Differences & Selection Guide

1. Q: What is the main difference between this valve and the previous R900765378?

   A:​ This valve (R900753984) uses a 4–20 mA current input (/F1)​ and has an internal pilot oil return (T port). The previous R900765378 used a ±10V voltage input (/A1) and required an external pilot drain (Y port). The 4–20 mA signal is more resistant to electrical noise in industrial environments.

2. Q: What does the "E1-spool" mean?

   A:​ The E1-spool​ is a zero-overlap spool​ with an integrated LVDT (Linear Variable Differential Transformer). It provides closed-loop spool position feedback, offering higher control accuracy and repeatability compared to open-loop valves.

3. Q: What is the purpose of the /M suffix?

   A:​ The /M​ suffix indicates standard NBR seals​ and the absence of an integrated pressure reducing valve (/D3). This valve does not have the built-in ZDR 6 pilot pressure regulator.

4. Q: How does the pilot oil configuration work?

   A:​ This valve (/6EG24N9ETK31) requires an external pilot oil supply (X port)​ but uses internal drain (T port)​ for the pilot stage. This simplifies piping compared to valves requiring a separate Y drain, but you must ensure the main T-port backpressure is within limits (max 210 bar).

5. Q: What is the critical installation note?

   A:​ Ensure the main T-port backpressure is below 210 bar. Since the pilot stage drains internally to T, excessive backpressure can cause pilot stage malfunction. Maintain high oil cleanliness (recommended NAS 1638 Class 8 or better for the main stage).
