0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve

0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve
0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve 0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve

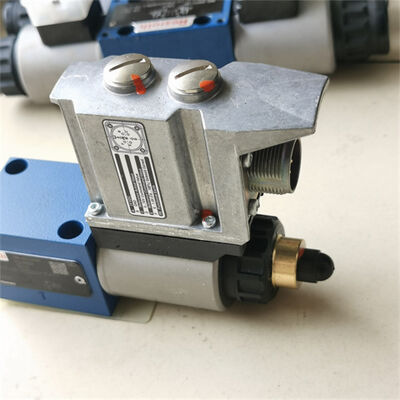

Large Image :  0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: 0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

0811402035 DBETX-1X/250G24-25NZ4M 0811402032 DBETX-1X/315G24-25Z4M Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve

Description
Nominal Pressure: 35Mpa Pumptype: Variable Displacement / Fixed Displacement
Products Name: Rexroth Hydraulic Piston Pump Pressure Rating: 280 Bar
Type: Hydraulic Pump Productname: Rexroth Hydraulic Pump
Highlight:

Rexroth hydraulic relief valve with base plate

,

German Rexroth proportional valve installation

,

Seamless adjustment base plate hydraulic

0811402035DBETX-1X/250G24-25NZ4M
0811402032DBETX-1X/315G24-25NZ4M

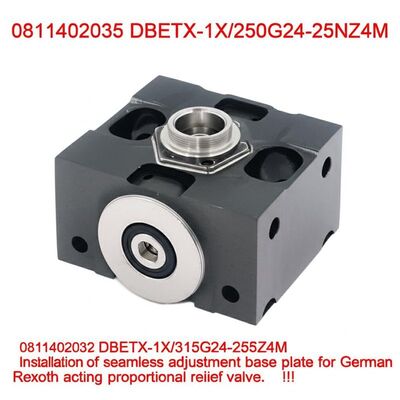

Installation of seamless adjustment base plate for German Rexroth direct acting proportional relief valve

0811402035 DBETX-1X<div class=Product Variants
DBETBX-10/315G24-37Z4M
DBETBX-1X/180G24-16Z4M
DBETBX-1X/180G24-16Z4M-41
DBETBX-1X/180G24-37Z4M
DBETBX-1X/180G24-37Z4MPU1
DBETBX-1X/230G24-16Z4M-37
DBETBX-1X/250G24-37Z4M-38
DBETBX-1X/25G24-16Z4M-37
DBETBX-1X/28G24-37Z4M
DBETBX-1X/315G24-16Z4M
DBETBX-1X/315G24-25Z4M
DBETBX-1X/315G24-37Z4M
DBETBX-1X/315G24-37Z4M-38
DBETBX-1X/80G24-16Z4M-37
DBETBX-1X/80G24-37Z4M-38
DBETX-1X/315G24-8NZ4M
DBETX-1X/250G24-8NZ4M
DBETBX-10/180G24-16Z4M
DBETBX-10/180G24-16Z4M-41
DBETBX-10/180G24-37Z4M
DBETBX-10/180G24-37Z4MPU1
DBETBX-10/230G24-16Z4M-37
DBETBX-10/250G24-37Z4M-38
DBETBX-10/25G24-16Z4M-37
DBETBX-10/28G24-37Z4M
DBETBX-10/315G24-16Z4M
DBETBX-10/315G24-25Z4M
DBETBX-10/315G24-37Z4M-38
DBETBX-10/80G24-16Z4M-37
DBETBX-10/80G24-37Z4M-38
DBETX-10/315G24-8NZ4M
DBETX-10/250G24-8NZ4M
DBETBEX-1X/180G24K31A1M
DBETBEX-1X/180G24K31A1V
DBETBEX-1X/180G24K31F1M
DBETBEX-1X/180G24K31F1V
DBETBEX-1X/250G24K31A1M
DBETBEX-1X/250G24K31A1M-42
DBETBEX-1X/250G24K31A1V
DBETBEX-1X/250G24K31F1M
DBETBEX-1X/30G24K31A1M
DBETBEX-1X/315G24K0B5M
DBETBEX-1X/315G24K31A1M
DBETBEX-1X/315G24K31F1M
DBETBEX-1X/315G24K31F1V
DBETBEX-1X/80G24K31A1M
DBETBEX-1X/80G24K31F1M
DBETBEX-1X/80G24K31F1V
DBE6X-1X/315G24-8NZ4M
DBET-6X/100G24-8K4V
DBET-6X/100G24K4M
DBET-6X/100G24K4V
DBET-6X/100YG24-8K4V
DBET-6X/100YG24-8K4V-7
DBET-6X/100YG24K4M
DBET-6X/100YG24K4V
DBET-6X/200G24-8K4V
DBET-6X/200G24K4M
DBET-6X/200G24K4V
DBET-6X/200G24K4V=LB
DBET-6X/200YG24-8K4V
DBET-6X/200YG24-8K4V-7
DBET-6X/200YG24K4M
DBET-6X/200YG24K4V
DBET-6X/250G24K4M
DBET-6X/250YG24K4M
DBET-6X/315G24-8K4M
DBET-6X/315G24-8K4V
DBET-6X/315G24K4M
DBET-6X/315G24K4V
DBET-6X/315G24K4V=DE
DBET-6X/315G24K4V=LB
DBET-6X/315YG24-8K4M
DBET-6X/315YG24-8K4V
DBET-6X/315YG24-8K4V-7
DBET-6X/315YG24K4M
Technical Specifications
ParameterDBETX-1X/250G24-25NZ4M (Order No.: 0811402035)DBETX-1X/315G24-25NZ4M (Order No.: 0811402032)
Product TypeDirect-operated Proportional Relief Valve (Pilot Valve)Direct-operated Proportional Relief Valve (Pilot Valve)
SeriesDBETX-1XDBETX-1X
Maximum Working Pressure (P Port)315 bar315 bar (31.5 MPa)
Maximum Working Pressure (T Port)250 bar250 bar
Pressure Setting Range0 - 250 bar (proportional to control signal)0 - 315 bar (proportional to control signal)
Nominal Flow Rate (Qn)1 L/min1 L/min
Power Supply24 V DC (G24)24 V DC (G24)
Solenoid Type / Max. Current25NZ4M configuration: 2.5 A25NZ4M configuration: 2.5 A
Control Signal0...10 V or 4...20 mA standard signal input0...10 V or 4...20 mA standard signal input
Pressure-Control RelationshipInput current is proportional to output pressureLinear relationship (Proportional coefficient: 0.8-1.2 MPa/mA)
Pressure Control AccuracyInformation not explicitly specified in search results for this model±0.5% FS (Full Scale)
Response TimeInformation not explicitly specified in search results for this model≤ 20 ms
Manual OverrideYes (N)Yes (N)
Electrical ConnectionPlug conforming to DIN 43650 (included in delivery)Plug conforming to DIN 43650 (included in delivery)
Seal MaterialNBR (Nitrile Rubber), suitable for mineral oils (HL, HLP) per DIN 51524Information not explicitly specified in search results for this model
MountingSubplate mounting, conforming to ISO 4401-03-02-0-94 standardSubplate mounting, conforming to ISO 4401 standard
Port SizeNG6NG6
Compatible FluidsMineral oils (HL, HLP)Mineral oils, HFC/HFD-type flame-resistant hydraulic oils (fluid contamination level ≤ NAS 1638 Class 8)
Frequently Asked Questions
Q1: What is the main difference between the 250G24 and 315G24 models?
A: The primary difference is the maximum pressure setting capability. The DBETX-1X/250G24-25NZ4M has a 0-250 bar pressure setting range, while the DBETX-1X/315G24-25NZ4M offers 0-315 bar. Both models share identical mechanical dimensions, electrical interfaces, and mounting configurations, but are calibrated for different pressure ranges to suit various system requirements.
Q2: Why would I choose a 25NZ4M configuration over other electrical interfaces?
A: The 25NZ4M configuration provides higher current capability (up to 2.5A) compared to standard interfaces, resulting in faster response times and better dynamic performance. This makes it suitable for applications requiring rapid pressure changes, high-viscosity fluids, or systems where precise dynamic control is critical. The trade-off is slightly higher power consumption and the need for compatible control electronics.
Q3: Do these valves require external electronics for operation?
A: Yes, both models require an external proportional amplifier or controller. The valve itself contains the solenoid and position feedback sensor but does not include internal control electronics. The external amplifier provides the 24V DC power supply, processes the control signal (0-10V or 4-20mA), and handles the position feedback signal for closed-loop control if required.
Q4: Can I use the 315 bar model for applications that only require 200 bar?
A: Yes, but it is not recommended for optimal performance. While technically possible to operate at lower pressures, the pressure resolution and control accuracy will be reduced. The 315 bar model has a resolution of approximately 3.15 bar per volt, while using a model closer to your maximum operating pressure (such as the 250 bar model) would provide better resolution and control precision.
Q5: What is the purpose of the position feedback signal?
A: The integrated position sensor provides a 0-10V DC signal proportional to the valve spool position. This feedback can be used for closed-loop control applications, system monitoring, fault detection, or diagnostic purposes. It allows the control system to verify that the valve is responding correctly to the command signal and can help detect issues like spool sticking or solenoid failure.
Q6: Are these valves compatible with water-glycol or phosphate ester fluids?
A: The standard models come with NBR seals, which are compatible with mineral oils (HL, HLP) but may not be suitable for water-glycol or phosphate ester fluids. For alternative fluid types, special seal materials (such as FKM or EPDM) may be required. Please consult the manufacturer's fluid compatibility guide or contact technical support to confirm seal material suitability for your specific fluid type before installation.
