PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16 Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany

PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16 Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany
PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16 Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16 Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany

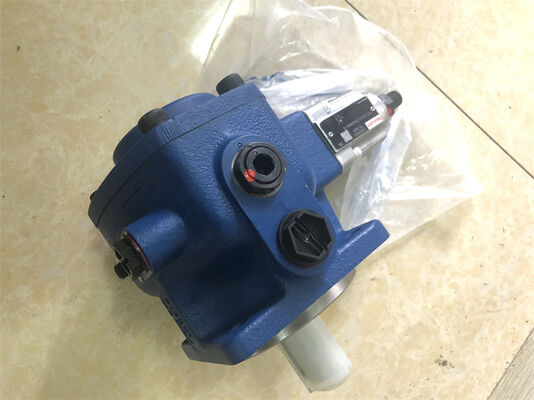

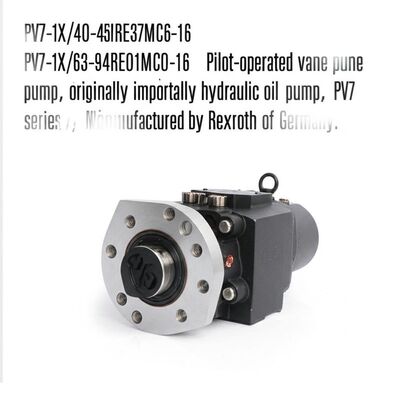

Large Image :  PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16 Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16 Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany

Description
Material: High-grade Steel And Aluminum Drive Mode: 6-250m3
Efficiency: Up To 95% Standard Or Nonstandard: Standard
Productname: Rexroth Hydraulic Pump Theory: Rotary Pump
Origin: Germany Power: Hydraulic
Highlight:

Rexroth PV7 vane pump

,

original imported hydraulic pump

,

pilot-operated vane oil pump

Rexroth PV7 Series Pilot-Operated Vane Pumps
PV7-1X/40-45RE37MC6-16 PV7-1X/63-94RE07MW0-08 PV7-1X/16-20RE01MC0-16
Pilot-operated vane pump, originally imported hydraulic oil pump, PV7 series, manufactured by Rexroth of Germany.
Technical Specifications
Parameter Min Max Unit Notes
Displacement per Revolution 10-25 14-150 cm³/rev Displacement varies by specific model suffix
Max. Continuous Working Pressure 100 160 bar PV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure 120 200 bar Short-term (≤5s) overload only
Speed Range 600-2800 600-3600 rpm Higher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm) 36 270 l/min Calculated at rated displacement
Volumetric Efficiency (Rated Condition) ≥90% ≥92% % At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation) ≥80% ≥82% % Includes mechanical & volumetric efficiency
Suction Pressure Range 1 -0.8 to +1 bar Absolute pressure: 0.2-1.1 bar
Fluid Compatibility Mineral oil (HLP), synthetic oil (HETG/HEES) Mineral oil (HLP), synthetic oil (HETG/HEES) - Use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 (operation); 2-1500 (start-up) 10-1000 (operation); 2-1500 (start-up) mm²/s Optimal: 16-160 mm²/s
Fluid Temperature Range -20 to +80 -20 to +80 °C Storage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation) ≤63 ≤65 dB(A) Pilot-operated models have optimized noise reduction
Mounting Standard ISO 3019-2 flange ISO 3019-2 flange - Optional foot mounting for some models
Shaft Connection ISO 4162 splined shaft ISO 4162 splined shaft - Keyed shaft available on request
Seal Material NBR (standard); FKM (optional) NBR (standard); FKM (optional) - NBR for mineral oil; FKM for synthetic oil
PV7-1X/4 <div class=Available Model Variants
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
Frequently Asked Questions
What is the "zero stroke" condition?
This is the state where the pump regulates the flow to virtually zero while maintaining system pressure, minimizing energy loss and fluid heating.
What is the case drain flow at zero stroke?
For Frame Size 06, it's 1.7 L/min, and for Frame Size 20, it's 2.0-2.4 L/min, measured at maximum outlet operating pressure.
What are the control times for pressure regulation?
Control times vary by model and pressure setting. For example, a PV7../06-10 pump has a control-down time (t2 down) of around 90 ms and a control-up time (t2 up) of about 60 ms at 100 bar.
What is the weight of these pumps?
Frame Size 06 pumps weigh approximately 6.3 kg, while Frame Size 20 pumps weigh about 11.4 kg.
How do I interpret the PV7 ordering code?
The code specifies type, series, frame size, displacement, rotation direction, shaft type, connections, seals, control unit, and zero stroke pressure setting. For example, 'PV7-1X/06-10RA01MA0-05' decodes to a specific configuration.
