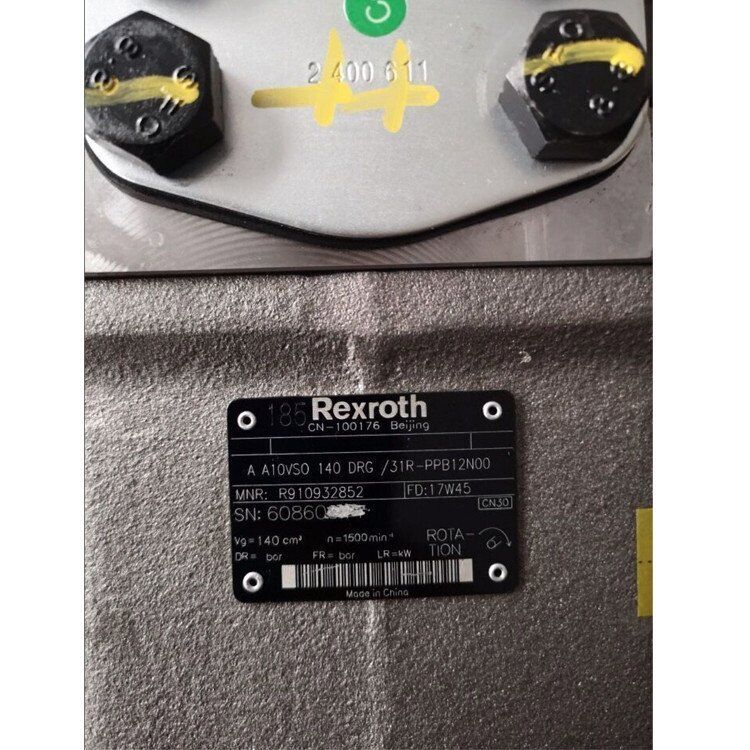

Product Details:
|
| Weight: | 69 Kg | Recommended Viscosity: | 16 – 68 Mm²/s (ISO VG 32–68) |
|---|---|---|---|
| Fluid Temperature: | -20°C To +80°C | Port Configuration: | VPB12 |
| Mounting Flange: | ISO 3019-2 / Series 32 | ||
| Highlight: | Rexroth variable piston pump,German Rexroth piston pump,AA10VS0100DRS piston pump |
||
|
Parameter |
Specification |
|---|---|
|
Order Number |
R902436353 |
|
Model |
A10VSO100DRS/32R-VPB12N00-S1439 |
|
Type |
Swashplate-type axial piston variable pump (Open circuit) |
|
Displacement |
100 cm³/rev |
|
Control Type |
DRS (Pressure cut-off + Load Sensing) |
|
Rated Pressure |
280 bar (Continuous) |
|
Peak Pressure |
350 bar (Intermittent) |
|
Recommended Speed |
1500 – 1800 rpm (Rated operation) |
|
Maximum Speed |
Approx. 2000 – 2400 rpm (Limited by suction conditions) |
|
Rotation Direction |
R (Clockwise viewed from shaft end) |
|
Mounting Flange |
ISO 3019-2 / Series 32 |
|
Shaft Type |
Splined shaft (SAE standard) |
|
Through-drive Capability |
No (Code N00, cannot drive a second pump) |
|
Port Configuration |
VPB12 (SAE flange, suction and pressure ports opposite) |
|
Seal Material |
FKM (Fluoroelastomer, standard for mineral oil and HFC fluids) |
|
Fluid Temperature |
-20°C to +80°C |
|
Recommended Viscosity |
16 – 68 mm²/s (ISO VG 32–68) |
|
Weight |
Approx. 69 kg |
![]()
| R910986932 A A10VSO 71 DFR1/31R-VPA12K01 |
| R910992519 A A10VSO 71 DFR1/31R-VPA12N00 |
| R902473183 A A10VSO 71 DFR1/31R-VPA42K27 |
| R902488176 A A10VSO 71 DFR1/31R-VPA42KB5 -SO 52 |
| R902501568 A A10VSO 71 DFR1/31R-VSA12N00 |
| R910960333 A A10VSO 71 DR /31L-VPA12N00 |
| R910998793 A A10VSO 71 DR /31R-PPA12N00 -SO108 |
| R910947219 A A10VSO 71 DR /31R-VPA12N00 |
| R902473969 A A10VSO 71 DR /31R-VPA42KB5 |
| R902482660 A A10VSO 71 DR /31R-VPA42N00 |
| R910947898 A A10VSO 71 DRG /31R-PPA12N00 |
| R910992951 A A10VSO 71 DRG /31R-PSA12N00 |
| R902411494 A A10VSO 71 DRG /31R-VPA12K02 |
| R910947258 A A10VSO 71 DRG /31R-VPA12N00 |
| R902452789 A A10VSO 71 DRS /32R-VPB22U99 |
| R902486410 A A10VSO 71 DRS /32R-VRB32U01 -SO 52 |
| R902486409 A A10VSO 71 DRS /32R-VRB32U68 -SO 52 |
| R910961157 A A10VSO 71 FHD /31R-PPA12N00 |
| R902460926 A A10VSO100 DFLR/31R-VPA12N00 |
| R910907813 A A10VSO100 DFR /31L-PPA12N00 |
| R910917313 A A10VSO100 DFR /31R-PPA12K01 |
| R910998331 A A10VSO100 DFR /31R-PPA12K07 |
| R910942637 A A10VSO100 DFR /31R-PPA12K27 |
| R902417327 A A10VSO100 DFR /31R-PPA12KB4 |
| R902416469 A A10VSO100 DFR /31R-PPA12KB5 |
| R910939643 A A10VSO100 DFR /31R-PPA12N00 |
| R910991002 A A10VSO100 DFR /31R-PSA12N00 |
| R910920969 A A10VSO100 DFR /31R-VPA12N00 |
| R910986270 A A10VSO100 DFR1/31L-PPA12KB4 -SO 32 |
| R910911394 A A10VSO100 DFR1/31R-PPA12K01 |
| R910927083 A A10VSO100 DFR1/31R-PPA12K02 |
| R910983124 A A10VSO100 DFR1/31R-PPA12KB3 |
| R910984741 A A10VSO100 DFR1/31R-PPA12KB4 |
| R910985609 A A10VSO100 DFR1/31R-PPA12KB5 |
| R902403231 A A10VSO100 DFR1/31R-PPA12KB6 |
| R910922744 A A10VSO100 DFR1/31R-PPA12N00 |
| R902418759 A A10VSO100 DFR1/31R-PSA12KB4 |
| R910971805 A A10VSO100 DFR1/31R-PSA12KB6 |
| R910949826 A A10VSO100 DFR1/31R-PSA12N00 |
| R910922681 A A10VSO100 DR /31L-VPA12N00 |
| R910968839 A A10VSO100 DR /31R-PPA12K04 |
| R910916809 A A10VSO100 DR /31R-VPA12N00 |
| R910943447 A A10VSO100 DRG /31R-PPA12N00 |
| R902420121 A A10VSO100 DRG /31R-VPA12K25 |
| R910930899 A A10VSO100 DRG /31R-VPA12N00 |
| R902448357 A A10VSO100 DRG /32R-VPB12N00 |
| R902454561 A A10VSO100 DRS/32R-VPB22U99 |
| R910968510 A A10VSO140 DFLR/31L-PPB12N00 |
| R910972152 A A10VSO140 DFLR/31R-PPB12K02 |
| R910935974 A A10VSO140 DFLR/31R-PPB12N00 |
A10VSO: Axial piston variable pump (Open circuit).
100: Geometric displacement 100 cm³/rev.
DRS: Control type (Pressure cut-off + Load Sensing).
32R: Series 32, Right-hand rotation.
VPB12N00: Mounting and connection.
VPB12: SAE flange, suction and pressure ports opposite.
N00: No through-drive (This model cannot be used in a tandem configuration).
S1439: Special manufacturing code (typically refers to a specific seal/bearing package or factory batch).
DRS is a combined Pressure cut-off + Load Sensing (LS) control.
Pressure Cut-off: When system pressure reaches the set value (e.g., 280 bar), the pump automatically reduces its displacement to maintain constant pressure.
Load Sensing (LS): The pump automatically senses the flow required by the actuator and delivers only the matching flow, maintaining a constant pressure differential (Δp, typically 10-20 bar) between the pump outlet and the load pressure. The advantage is energy savings and reduced heat generation from overflow.
No.
The N00 code in the model number explicitly indicates that this pump has no through-drive. The drive shaft is enclosed within the rear cover and cannot extend to drive a second pump. If you need to mount a gear pump or another piston pump in series, you must select a variant with a through-drive code, such as VPB22U....
Case Drain Port (L Port): Must be connected separately and directly to the tank, with a backpressure not exceeding 0.5-2 bar. It is strictly forbidden to connect it in series with the main return line (T port) or downstream of a return line filter. Doing so will cause shaft seal leakage and pump overheating.
Suction Conditions: The absolute pressure at the suction port (S port) must not fall below -0.8 bar (vacuum) to prevent cavitation. It is recommended to use a short, large-diameter suction line, and monitor the pressure drop across the suction filter.
Noise (Cavitation): Check for air leaks in the suction line, clogged suction filter, or oil temperature being too low (causing excessively high viscosity).
Overheating: The most common causes are excessive case drain backpressure (undersized or restricted drain line) or prolonged operation at high pressure with small displacement (high power loss).
Locate the pressure adjustment screw on the control head (usually with a locknut, under a cap).
Always adjust with the system running under controlled conditions and a pressure gauge installed.
Loosen the locknut.
Turn the screw clockwise to increase pressure, counterclockwise to decrease.
Tighten the locknut and recheck the setting.
Yes, absolutely. While the DRS control limits pressure, it is a control function, not a safety device. You must install a separate system safety relief valve (e.g., a DB/DBW type) in the main pressure line as a backup in case of control failure.
Disclaimer: For precise installation, commissioning, and maintenance, always refer to the official Rexroth technical documentation, specifically the data sheet RE 25700 for the A10VSO Series.
