PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany

PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany
PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany

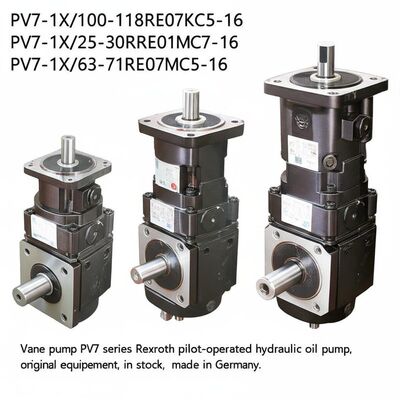

Large Image :  PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany

Description
Material: High-grade Steel And Aluminum Applications: Mobile Machinery, Industrial Hydraulics, Construction Equipment
Pump: Rexroth Products Name: Rexroth Hydraulic Piston Pump
Seal Type: Lip Seal Or Mechanical Seal Mountingtype: Flange Mount
Pumptype: Variable Displacement / Fixed Displacement Operatingtemperaturerange: -20°C To 80°C
Pressurerating: Up To 350 Bar
Highlight:

Rexroth PV7 hydraulic vane pump

,

original Rexroth PV7 oil pump

,

German-made Rexroth PV7 pump

Rexroth PV7 Series Vane Pumps
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany
Technical Specifications
Parameter/Property CategoryDirect-Acting (PV7-A) SeriesPilot-Operated (PV7-C/D/N/W) SeriesUnitRemarks
Model RangePV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16#VALUE!1X/2X=component series; 06/14/20=frame size
Displacement per Revolution10-2514-150cm³/revDisplacement varies by specific model suffix
Max. Continuous Working Pressure100160barPV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure120200barShort-term (≤5s) overload only
Speed Range600-2800600-3600rpmHigher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm)36270l/minCalculated at rated displacement
Volumetric Efficiency (Rated Condition)≥90%≥92%%At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation)≥80%≥82%%Includes mechanical & volumetric efficiency
Suction Pressure Range1-0.8 to +1barAbsolute pressure: 0.2-1.1 bar
Fluid CompatibilityMineral oil (HLP), synthetic oil (HETG/HEES)Mineral oil (HLP), synthetic oil (HETG/HEES)-Use FKM seals for synthetic fluids
Fluid Viscosity Range10-1000 (operation); 2-1500 (start-up)10-1000 (operation); 2-1500 (start-up)mm²/sOptimal: 16-160 mm²/s
Fluid Temperature Range-20 to +80-20 to +80°CStorage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation)≤63≤65dB(A)Pilot-operated models have optimized noise reduction
Mounting StandardISO 3019-2 flangeISO 3019-2 flange-Optional foot mounting for some models
Shaft ConnectionISO 4162 splined shaftISO 4162 splined shaft-Keyed shaft available on request
Seal MaterialNBR (standard); FKM (optional)NBR (standard); FKM (optional)-NBR for mineral oil; FKM for synthetic oil
Weight8-1210-35kgDepends on displacement and control type
PV7-1X/100<div class=Available Models
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
PV7-1X/40-45RE37MW5-16WH
PV7-1X/10-14RE01MC0-16-P45
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
Frequently Asked Questions
Does Rexroth PV7 vane pump provide precise hydraulic power transmission?
Yes, it ensures precise and stable hydraulic power transmission for precision equipment.
What is the power-to-weight ratio of Rexroth PV7 vane pump like?
It has a high power-to-weight ratio, making it suitable for applications where weight is a concern.
Can Rexroth PV7 vane pump be customized?
Yes, it can be customized with different control options to meet specific application needs.
Is Rexroth PV7 vane pump compatible with other Rexroth hydraulic components?
Yes, it has excellent compatibility with other Rexroth hydraulic components for seamless system integration.
Does Rexroth PV7 vane pump have pressure fluctuations during operation?
No, it provides smooth flow without obvious pressure fluctuations.
