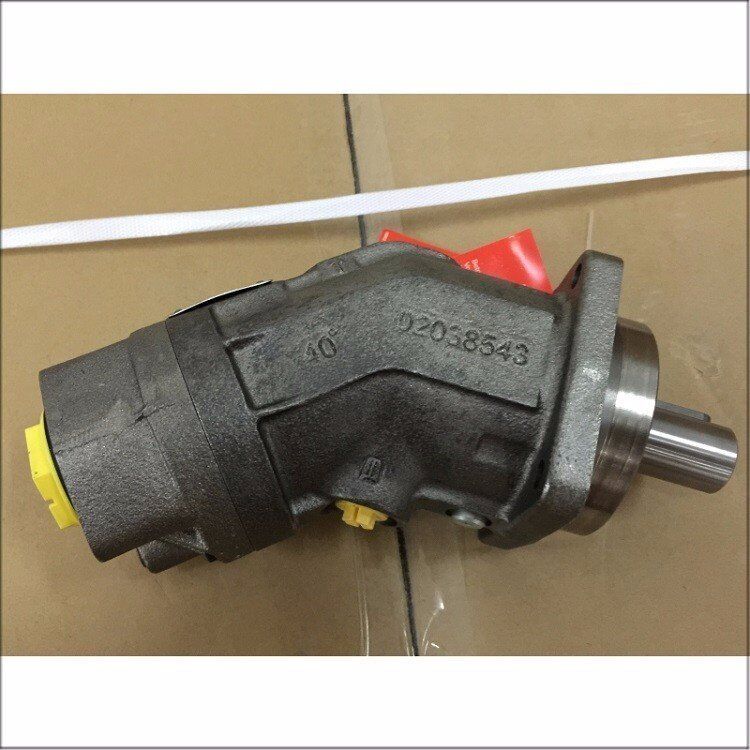

R902197748 A2FO10/61R-VPB06 German Rexroth plunger pump motor

R902197748 A2FO10/61R-VPB06 German Rexroth plunger pump motor
R902197748 A2FO10/61R-VPB06 German Rexroth plunger pump motor

Large Image :  R902197748 A2FO10/61R-VPB06 German Rexroth plunger pump motor

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: R902197748 A2FO10/61R-VPB06
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R902197748 A2FO10/61R-VPB06 German Rexroth plunger pump motor

Description
Order Code​: R902197748 Full Model​: A2FO10/61R-VPB06
Component Type​: Axial Piston Fixed Pump​ (Bent-Axis Design) Displacement​: 10 Cm³/rev
Nominal Pressure​: 350 - 400 Bar
Highlight:

Rexroth plunger pump motor

,

German Rexroth piston pump

,

A2FO10 plunger pump with warranty

R902197748 A2FO10/61R-VPB06 German Rexroth Plunger Pump Motor
Product Specifications
Manufacturer / Series Rexroth A2FO Series 6x
Order Code R902197748
Full Model A2FO10/61R-VPB06
Component Type Axial Piston Fixed Pump (Bent-Axis Design)
Primary Function Converts mechanical power into hydraulic power for open circuit systems
Displacement 10 cm³/rev
Nominal Pressure 350 - 400 bar
Peak Pressure 400 - 450 bar
Nominal Size NG 10
Rotation Direction Right-hand (Clockwise, viewed from shaft end)
Shaft Type Tapered shaft 1:5 (Code P)
Ports S (Suction), B (Pressure), L (Case Drain)
Port Size Code 06 (Metric threads)
Mounting Flange SAE 2-bolt
Max. Speed (n max) 3150 rpm
Seal Material FKM (Viton)
Hydraulic Fluid Mineral oils (HL, HLP), HETG, HEES, HFDU
Operating Temperature -20°C to +80°C
Weight Approx. 6 kg
Country of Origin Germany
Product Image
Rexroth A2FO Series axial piston fixed pump - industrial hydraulic component
Related Models
A2FO28/61R-PPB05 A2FO28/61L-PPB05
A2FO28/61R-PZB05 A2FO28/61L-PZB05
A2FO32/61R-PBB05 A2FO32/61L-PBB05
A2FO32/61R-PAB05 A2FO32/61L-PAB05
A2FO32/61R-VAB05 A2FO32/61L-VAB05
A2FO45/61R-PPB05 A2FO45/61L-PPB05
A2FO45/61R-PZB05 A2FO45/61L-PZB05
A2FO56/61R-PBB05 A2FO56/61L-PBB05
A2FO56/61R-PAB05 A2FO56/61L-PAB05
A2FO56/61R-PPB05 A2FO56/61L-PPB05
A2FO56/61R-PZB05 A2FO56/61L-PZB05
A2FO56/61R-VPB05 A2FO56/61L-VPB05
A2FO56/61R-VAB05 A2FO56/61L-VAB05
A2FO63/61R-PBB05 A2FO63/61L-PBB05
A2FO63/61R-PAB05 A2FO63/61L-PAB05
A2FO63/61R-VAB05 A2FO63/61L-VAB05
A2FO80/61R-PBB05 A2FO80/61L-PBB05
A2FO80/61R-PAB05 A2FO80/61L-PAB05
A2FO80/61R-PPB05 A2FO80/61L-PPB05
A2FO80/61R-PZB05 A2FO80/61L-PZB05
A2FO80/61R-VPB05 A2FO80/61L-VPB05
A2FO80/61R-VAB05 A2FO80/61L-VAB05
A2FO90/61R-PBB05 A2FO90/61L-PBB05
A2FO90/61R-PAB05 A2FO90/61L-PAB05
A2FO107/61R-PPB05 A2FO107/61L-PPB05
A2FO107/61R-PZB05 A2FO107/61L-PZB05
A2FO125/61R-PBB05 A2FO125/61L-PBB05
A2FO125/61R-PAB05 A2FO125/61L-PAB05
A2FO160/61R-PBB05 A2FO160/61L-PBB05
A2FO160/61R-PAB05 A2FO160/61L-PAB05
A2FO160/61R-PPB05 A2FO160/61L-PPB05
A2FO160/61R-PZB05 A2FO160/61L-PZB05
A2FO180/61R-PBB05 A2FO180/61L-PBB05
A2FO180/61R-PAB05 A2FO180/61L-PAB05
A2FO180/61R-VAB05 A2FO180/61L-VAB05
A2FO180/61R-VBB05 A2FO180/61L-VBB05
Frequently Asked Questions
Is this a pump or a motor?
This is a fixed displacement hydraulic pump. It is designed to be driven by an external prime mover (e.g., electric motor or engine) to generate flow in an open circuit. While A2FO units can sometimes operate as motors, this specific configuration (61R-VPB06) is primarily intended for pump duty.
What is the key difference between the "VPB06" and the previous "PBB06" model?
The main differences are the seal material and shaft type:
  • V (Seals): Indicates FKM (Viton) seals, which offer superior chemical and temperature resistance compared to the standard NBR (P) seals found in the PBB06 variant.
  • P (Shaft): Indicates a tapered shaft (1:5) instead of a splined shaft. This requires a different coupling or pulley arrangement.
What is the maximum system pressure I can run?
The pump is rated for a continuous nominal pressure of 350-400 bar. It can handle short-term peak pressures up to 450 bar, but the total duration of peak pressure operation should be limited to ensure bearing and seal longevity.
Does this pump require a case drain line?
Yes. The "L" port is a case drain and must be connected directly to the tank with minimal backpressure (typically max 2 bar). This is critical to prevent shaft seal failure by relieving internal case pressure from internal leakage.
What type of hydraulic fluid is recommended?
The pump is compatible with standard mineral oils (HL, HLP), biodegradable oils (HETG, HEES), and fire-resistant fluids (HFDU). The use of FKM (Viton) seals provides broader fluid compatibility compared to standard NBR seals.
