PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16 Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany

PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16 Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany
PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16 Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16 Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany

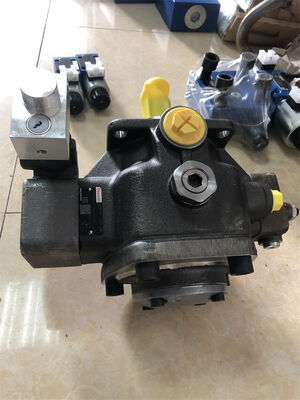

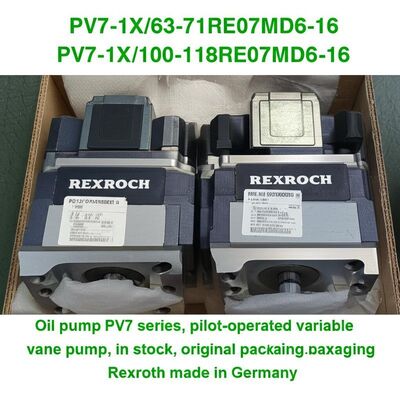

Large Image :  PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16 Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/63-71RE07MD6-16 PV7-1X/100-118RE07MC3-16 Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany

Description
Sizes: 18 To 140 Certifisaarion: ISO9001
Fluidtype: Hydraulic Oil Drivetype: Shaft Driven
Mounting Type: Flange, Foot, And Face Connection: Subplate Connection
After Serive: Online Video Inlet Connection: Threaded Or Flanged
Highlight:

Rexroth PV7 vane pump

,

variable vane pump with warranty

,

German-made PV7 oil pump

PV7-1X/63-71RE07MD6-16 & PV7-1X/100-118RE07MC3-16
Oil pump PV7 series, pilot-operated variable vane pump, in stock, original packaging, Rexroth, made in Germany
Technical Specifications
Parameter Value Unit Notes
Volumetric Efficiency (Rated Condition) ≥90% | ≥92% % At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation) ≥80% | ≥82% % Includes mechanical & volumetric efficiency
Suction Pressure Range 1 | -0.8 to +1 bar Absolute pressure: 0.2-1.1 bar
Fluid Compatibility Mineral oil (HLP), synthetic oil (HETG/HEES) - Use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 (operation); 2-1500 (start-up) mm²/s Optimal: 16-160 mm²/s
Fluid Temperature Range -20 to +80 °C Storage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation) ≤63 | ≤65 dB(A) Pilot-operated models have optimized noise reduction
Mounting Standard ISO 3019-2 flange - Optional foot mounting for some models
Shaft Connection ISO 4162 splined shaft - Keyed shaft available on request
Seal Material NBR (standard); FKM (optional) - NBR for mineral oil; FKM for synthetic oil
Weight 8-12 | 10-35 kg Depends on displacement and control type
PV7-1X/63 <div class=Available Models
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
PV7-1X/100-118RE07MC7-16
PV7-1X/10-14RE01MC0-16-P90
PV7-1X/16-20RE01MC7-16WH
PV7-1X/40-45RE37MD0-16-C3.1
PV7-1X/40-45RE37MW0-16WG
PV7-1X/40-45RE37KD0-16
PV7-1X/40-45RE37MC0-16-P80
PV7-1X/16-30RE01MC5-08
PV7-1X/100-150RE07KD0-08
PV7-1X/40-45RE37MW0-16WH
PV7-1X/10-14RE01MD0-16
PV7-1X/100-150RE07MC5-08WG
PV7-1X/16-30RE01MC7-08
PV7-1X/63-71RE07MC0-06-A460
PV7-1X/10-14RE01MC0-16
PV7-1X/16-30RE01MN0-08
PV7-1X/25-45RE01KC0-08
PV7-1X/63-71RE07MD0-16-Q85
PV7-1X/100-150RE07MN0-08
PV7-1X/63-94RE07MC3-08
PV7-1X/16-20RE01MW0-16WG
PV7-1X/25-30RE01MD0-16
PV7-1X/10-14RE01MW0-16WG
PV7-1X/25-30RE01MD5-16WH
PV7-1X/10-14RE01MC0-16-P140Q10
Frequently Asked Questions
Can the pump be repaired?
While spare parts like rotor assemblies, vanes, and seals are available, the documentation states that damaged products should be replaced as repair is not possible, implying limited field repairability.
Where can I find spare parts?
Spare parts and repair kits for Rexroth hydraulic pumps, including PV7 series internal components, are available from various suppliers.
Applications & Compatibility
What are typical applications for the PV71x series?
These pumps are suitable for various industrial hydraulic systems, including those in agricultural machinery, construction equipment, and machine tools.
Can the pump be used with fluids other than mineral oil?
Yes, but this is subject to request. The standard seals (NBR) are compatible with HLP mineral oil. Fluid compatibility must be verified for alternative fluids.
Is the pump suitable for mobile equipment?
Its compact design and pressure capabilities make it suitable for some mobile hydraulic applications, but specific suitability depends on the requirements of the equipment.
