Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool

Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool
Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool

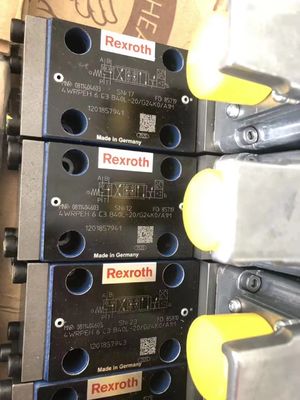

Large Image :  Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: 4WRA6WA10-1X/24NZ4/M 4WRA6WB20-1X/24NZ4/M 4WRA6W05-1X/24Z4/V 4WRA6W05-1X/24NZ4/V 4WRA6WA05-1X/24NZ4/M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool

Description
Structure: Piston Pump Pump: Piston
Axial Piston Unit: Swashplate Design, Fixed Displacement Usage: Oil
Transport Package: Wooden Box Rotation Speed: 1800-2200 Rpm
Weight: 10-20 Kg Maximum Pressure: 315 Bar
Origin: Germany Power: Hydraulic
Displacement: 28cc-140cc
Highlight:

30 L/min Flow Rate Proportional Hydraulic Valve

,

Direct-Operated Design Rexroth Hydraulic Valve

,

Spring-Centered Spool Proportional Directional Valve

REXROTH 4WRA6 Proportional Hydraulic Valve Series
Product Models
  • 4WRA6WA10-1X/24NZ4/M
  • 4WRA6WB20-1X/24NZ4/M
  • 4WRA6W05-1X/24Z4/V
  • 4WRA6W05-1X/24NZ4/V
  • 4WRA6WA05-1X/24NZ4/M
Product Specifications
Processing & CustomizationYes
TypeProportional valve
MaterialCast steel
BrandREXROTH
Scope of ApplicationHydraulic system
Product AliasProportional directional valve
Applicable MediumOil products
Applicable TemperatureNormal temperature (℃)
Nominal PressureNormal pressure (MPa)
Nominal Diameter6-way diameter (mm)
Installation TypeThreaded installation
Operating TemperatureRoom temperature
Type (channel location)Straight through type
Related Models
  • 4WRA6E07-2X/G24N9K4/VL
  • 4WRA6EA20-1X/24NZ4/M
  • 4WRA6EA10-1X/24Z4/M
  • 4WRA6EB10-1X/24Z4/M
  • 4WRA6EA20-1X/24Z4/M
  • 4WRA6E1-20-1X/24NZ4/M
  • 4WRA6EB05-1X/24NZ4/M
  • 4WRA6E10-1X/24N9Z4/M
  • 4WRA6E05-1X/24NK4/M
  • 4WRA6EA20-1X/24NK4/M
  • 4WRA6EB20-1X/24NZ4/M
  • 4WRA6E05-1X/12NZ4/M
  • 4WRA6E05-1X/24NZ4/V
  • 4WRA6E10-1X/24NZ4/V
  • 4WRA6EB20-1X/24Z4/M
  • 4WRA6EA05-1X/24NZ4/M
  • 4WRA6E20-1X/24Z4/V
  • 4WRA6E20-1X/24NZ4/V
  • 4WRA6E20-1X/24NJ/M
  • 4WRA6EA20-1X/24NZ4/V
  • 4WRA6E05-1X/24N9Z4/M
  • 4WRA6EA05-1X/24Z4/M
  • 4WRA6E20-1X/24N9Z4/M
  • 4WRA6E20-1X/24N9K4/M
  • 4WRA6EA10-1X/24NZ4/V
  • 4WRA6EA05-1X/24N9Z4/M
  • 4WRA6E10-1X/24Z4/V
  • 4WRA6E05-1X/24NJ/M
  • 4WRA6EB20-1X/24N9Z4/M
  • 4WRA6E05-1X/24Z4/M
  • 4WRA6E10-1X/24Z4/M
  • 4WRA6E20-1X/24Z4/M
  • 4WRA6E05-1X/24NZ4/M
  • 4WRA6E20-1X/24NZ4/M
  • 4WRA6E10-1X/24NZ4/M
  • 4WRA6E1-20-1X/24Z4/M
  • 4WRA6EA10-1X/24NZ4/M
  • 4WRA6EA05-1X/24Z4/V
  • 4WRA6EB10-1X/24NZ4/M
  • 4WRA6E10-1X/24NZ4/MR
  • 4WRA6E05-1X/24Z4/MR
  • 4WRA6E10-1X/24Z4/MR
  • 4WRA6E05-1X/24N9Z4/V
  • 4WRA6E05-1X/24NZ4/MR
  • 4WRA6E05-1X/24Z4/V
  • 4WRA6E20-1X/24NZ4/MR
  • 4WRA6EA20-1X/24NJ/V
  • 4WRA6E1-10-1X/24Z4/M
  • 4WRA6E20-1X/24N9Z4/V
  • 4WRA6E1-10-1X/24N9Z4/V
  • 4WRA6E2-20-1X/24N9Z4/M
  • 4WRA6E1-10-1X/24NZ4/M
  • 4WRA6E15-2X/G24N9Z4/V
  • 4WRA6EA20-1X/24K4/VR
  • 4WRA6EB05-1X/24Z4/M
  • 4WRA6E1-20-1X/24NK4/M
  • 4WRA6E30-2X/G24N9Z4/V
  • 4WRA6E10-1X/24N9Z4/V
  • 4WRA6E2-20-1X/24NZ4/M
  • 4WRA6EA20-1X/24N9Z4/M
  • 4WRA6EB20-1X/24NK4/M
  • 4WRA6EA05-1X/24K4/M
  • 4WRA6E1-07-2X/G24K4/V
  • 4WRA6EB15-2X/G24K4/V
  • 4WRA6EA07-2X/G24K4/V
  • 4WRA6E30-2X/G24N9K4/V
  • 4WRA6EA30-2X/G24N9Z4/V
  • 4WRA6E15-2X/G24Z4/V
  • 4WRA6E15-2X/G24K4/V
  • 4WRA6E30-2X/G24K4/V
  • 4WRA6E1-15-2X/G24N9K4/V
  • 4WRA6E07-2X/G24N9K4/V
  • 4WRA6E1-30-2X/G24N9Z4/V
  • 4WRA6E07-2X/G24K4/V
  • 4WRA6EB20-1X/24N9K4/M
  • 4WRA6EA15-2X/G24N9Z4/V
  • 4WRA6E15-2X/G24N9K4/V
  • 4WRA6EA30-2X/G24Z4/V
  • 4WRA6EB30-2X/G24N9K4/V
  • 4WRA6E10-1X/24K4/M
  • 4WRA6EA07-2X/G24N9K4/V
  • 4WRA6E20-1X/24K4/M
  • 4WRA6E1-07-2X/G24N9K4/V
  • 4WRA6EB15-2X/G24N9K4/V
  • 4WRA6E1-30-2X/G24N9K4/V
  • 4WRA6EA30-2X/G24N9K4/V
  • 4WRA6EA15-2X/G24N9K4/V
  • 4WRA6EA10-1X/24NK4/M
  • 4WRA6E20-1X/24NK4/MR
  • 4WRA6E10-1X/24NK4/MR
  • 4WRA6E05-1X/24NK4/MR
  • 4WRA6EA05-1X/24NK4/V
  • 4WRA6E15-2X/G24EXJ/V
  • 4WRA6E03-2X/G24N9K4/V
  • 4WRA6EB30-2X/G24K4/V
  • 4WRA6E1-30-2X/G24K4/V
  • 4WRA6EA30-2X/G24NJK31/V
  • 4WRA6WA30-2X/G24N9K4/V
  • 4WRA6W1-10-1X/24N9K4/M
  • 4WRA6W10-1X/24NZ4/M
  • 4WRA6W05-1X/24NZ4/M
  • 4WRA6WA05-1X/24Z4/M
  • 4WRA6W1-20-1X/24NZ4/M
  • 4WRA6WA10-1X/24Z4/M
Rexroth Proportional Hydraulic Valve with 30 L/min Flow Rate Direct-Operated Design and Spring-Centered Spool 0
Frequently Asked Questions
1. What is the 4WRA6 valve?
The 4WRA6 is a series of direct-operated proportional directional valves manufactured by REXROTH. It is designed as a subplate-mounted component and is typically used to control both the direction and flow rate of hydraulic fluid in a system, thereby managing the direction and speed of hydraulic actuators.
2. What are the main features of the 4WRA6 series?
  • Direct-Operated Design: The valve spool is moved directly by proportional solenoids without the need for a pilot pressure stage.
  • Spring-Centered Spool: When the solenoids are de-energized, the spool returns to and is maintained in the center position by compression springs.
  • Mounting: Subplate mounting with porting interface according to ISO 4401.
  • Two Configurations: Available with external control electronics (4WRA type) or with integrated onboard electronics (OBE) (4WRAE type).
  • Flow Control: Provides proportional flow control with a progressive flow characteristic (metering notch) in addition to direction control.
3. What is the difference between 4WRA and 4WRAE?
The key difference lies in the location of the control electronics.
  • 4WRA: Requires an external, separate amplifier to function. The amplifier processes the input signal (e.g., from a PLC) and provides the necessary power to the valve's solenoids.
  • 4WRAE: Features Integrated OnBoard Electronics (OBE). The control electronics are built into the valve, allowing it to accept standard analog input signals (e.g., ±10 V or 4-20 mA) directly.
4. How do I read the model number?
A typical 4WRA6 model code is structured as follows:
  • 4WRA: Series designation for proportional directional valve without OBE. "E" after WRA (4WRAE) indicates integrated electronics.
  • 6: Nominal size (06). Alternative size is 10.
  • W / E / etc.: Spool symbol/type (e.g., W, E, EA), which defines the flow characteristics and center position condition.
  • 07 / 15 / 30: Nominal flow rate in liters per minute at a pressure drop (Δp) of 10 bar. For size 06, common values are 7, 15, or 26/30 L/min.
  • 2X: Component series (20-29).
  • G24: Supply voltage (24 V DC).
  • K4 / K31: Electrical connection type (e.g., without plug, with specific component socket).
  • V: Seal material (e.g., FKM for mineral oil).
  • A1 / F1 (for 4WRAE): Control value input type (A1 for ±10V, F1 for 4-20mA).
5. What are the key technical specifications?
  • Maximum Operating Pressure: Up to 350 bar for P, A, B ports.
  • Maximum Flow: Varies with model (e.g., 42 L/min for some 4WRAE6 models).
  • Recommended Fluid Cleanliness: ISO 4406 20/18/15.
  • Voltage: Typically 24 V DC.
6. What are common applications for the 4WRA6 valve?
These valves are used in various industrial hydraulic systems requiring precise control, such as:
  • Plastic injection molding machines.
  • Presses and bending machines.
  • Mobile equipment.
  • Industrial automation systems where proportional control of speed and direction is needed.
