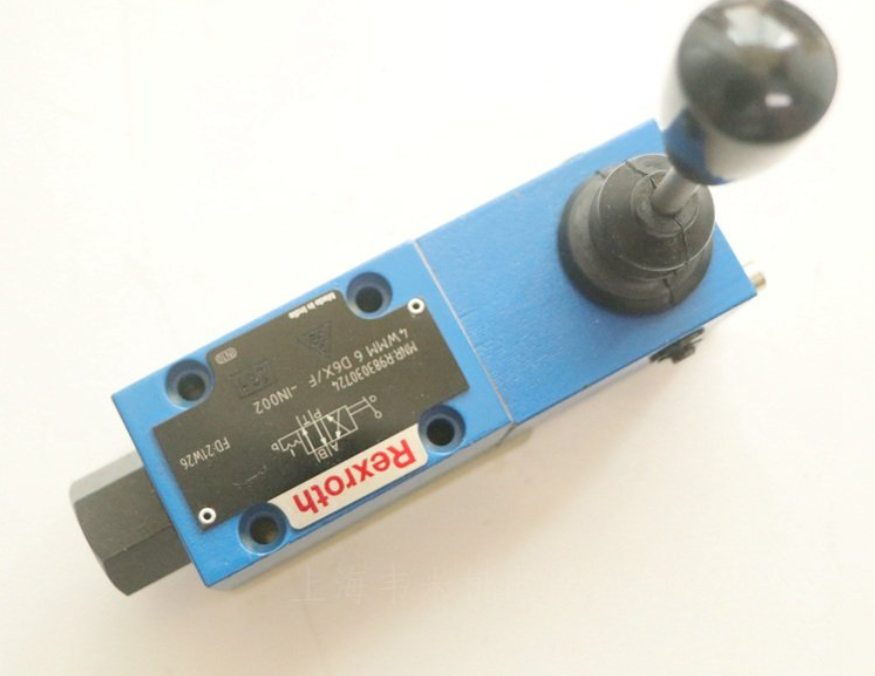

R983030770 4WMM10D3X/F Manual directional valve made in Germany by Rexroth

Frequently Asked Questions (FAQ)

1. Basic Parameters & Selection

Q: What is the key feature of the "D" spool in 4WMM10D3X/F?

A: The letter "D"​ denotes the spool type, which defines the internal flow path pattern in the center (neutral) position. For the D-type spool, the typical configuration is P port connected to T (tank), while A and B ports are blocked. This provides a "Tandem Center"​ function, which unloads the pump​ (P→T) in neutral, reducing heat generation, while holding the actuator​ (A/B blocked) to prevent drift.

Q: What does the "/F" suffix mean?

A: The "/F" suffix​ indicates that this valve is equipped with a detent mechanism (定位机构). This means the lever will mechanically lock into each position (left, center, right) and stay there without the operator needing to hold it. This is ideal for applications requiring sustained pressure or position hold.

Q: What is the maximum flow and pressure?

A: This NG10 size valve is rated for a maximum working pressure of 315 bar​ on P, A, B ports, but the return port (T) is limited to 160 bar. The recommended maximum flow is 120 L/min​ to avoid excessive pressure drops.

2. Installation & Commissioning

Q: How is this valve mounted?

A: It is a subplate-mounted valve. It requires a separate NG10 base plate (mounting interface per ISO 4401-05-04-0-05) that is screwed onto the manifold or tank. The valve then mounts onto this base plate.

Q: What are the critical installation warnings?

A:

• Port T Pressure:​ The return port (T) has a significantly lower pressure rating (160 bar) than the P, A, B ports (315 bar). Ensure your system's backpressure does not exceed this limit, as high backpressure can damage the valve and cause leakage.

• Cleanliness:​ The valve contains precision spools. Install it only in a clean environment and flush the system thoroughly before commissioning.

Q: How do I connect the ports?

A: The standard port configuration is:

• P: Pressure In (from pump)

• T: Tank Return

• A, B: Work ports (to cylinder or motor)

3. Operation & Troubleshooting

Q: The lever is very hard to operate or won't stay in position.

A: High operating force or failure to lock is usually due to:

1. High System Pressure:​ The spool is under pressure, creating a hydraulic lock. Operate the lever only when the system pressure is low or relieved.

2. Detent Mechanism Issue:​ The detent ball or spring inside the /F mechanism may be worn or damaged, preventing proper locking.

3. Contamination:​ Dirt or varnish inside the valve can cause the spool to stick. Check the oil cleanliness (ISO 4406 Class 20/18/15 or cleaner is recommended).

Q: The cylinder drifts slowly when the valve is in the center position.

A: This is typically not a valve failure​ but a function of the D-type spool. The D-spool is designed to block A and B in the center, which should hold the actuator. If drift occurs, it is likely due to:

• Actuator Leakage:​ Worn seals in the cylinder or motor itself.

• Spool Wear:​ Contamination causing erosion of the spool edges, allowing internal leakage past the lands.

Q: There is external leakage from the shaft or mounting area.

A: This indicates worn shaft seals or a damaged O-ring between the valve and the subplate. The valve requires disassembly and resealing. Ensure the mounting bolts are torqued correctly to avoid warping the subplate.

4. Maintenance

Q: What type of oil and cleanliness are required?

A: Use ISO VG 32/46/68 mineral-based oils (HL, HLP). The oil cleanliness must be NAS Class 9 or cleaner​ (ISO 4406 18/16/13) for long service life. Contamination is the primary cause of spool sticking and wear.

Q: Can I repair this valve myself?

A: Limited repair is possible.​ Seal kits are available for replacing external O-rings and shaft seals. However, repairing the internal spool, body, or detent mechanism requires specialized equipment. For critical applications, replacing the valve is often more reliable than attempting a field repair.

Q: What is the expected service life?

A: Under correct conditions (clean oil, within pressure ratings), the mechanical life can be several million cycles. The primary failure modes are seal wear​ and spool sticking due to contamination.

Disclaimer:​ This data is based on standard Rexroth WMM series documentation. The exact center position flow pattern is defined by the "D" code, which should be verified with the supplier's datasheet. Always refer to the official technical data (RE 25706 or similar) for your specific application and safety guidelines.
