0510425009 AZPF-1X-008RCB20MB German Rexroth gear oil pump

0510425009 AZPF-1X-008RCB20MB German Rexroth gear oil pump
0510425009 AZPF-1X-008RCB20MB German Rexroth gear oil pump

Large Image :  0510425009 AZPF-1X-008RCB20MB German Rexroth gear oil pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: 0510425009 AZPF-1X-008RCB20MB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

0510425009 AZPF-1X-008RCB20MB German Rexroth gear oil pump

Description
Viscosity Range​: 12 - 800 Mm²/s (Optimal: 20 - 100 Mm²/s) Port Connection​: Square Flange (ISO 8434-1)
Housing Material​: Aluminum Sealing Material​: NBR (Standard)
Hydraulic Fluid​: Mineral-based Oils (HL, HLP), HFC, HFD, HETG, HEPG, HEES
Highlight:

Rexroth gear oil pump

,

German Rexroth hydraulic pump

,

AZPF-1X gear pump

0510425009 AZPF-1X-008RCB20MB German Rexroth Gear Oil Pump
High-performance external gear pump designed for demanding industrial applications with robust construction and reliable operation.
Technical Specifications
Manufacturer Part No.0510425009
Pump TypeExternal Gear Pump, Fixed Displacement
Series / PlatformAZPF Series F (High Pressure)
Geometric Displacement8.0 cm³/rev
Rotation (viewed from shaft end)Clockwise (Right-Hand)
Pressure RatingsMax. Continuous: 250 bar
Max. Intermittent: 280 bar
Peak Pressure: 300 bar
Speed RangeRecommended: 1000 - 3000 rpm
Maximum: 3500 rpm (dependent on suction conditions)
Drive ShaftTapered 1:5 with Key (Ø18 mm)
Port ConnectionSquare Flange (ISO 8434-1)
Mounting FlangeRectangular Flange, Ø80 mm
Housing MaterialAluminum
Sealing MaterialNBR (Standard)
WeightApprox. 3.4 kg
Hydraulic FluidMineral-based oils (HL, HLP), HFC, HFD, HETG, HEPG, HEES
Viscosity Range12 - 800 mm²/s (Optimal: 20 - 100 mm²/s)
Fluid CleanlinessNAS 1638 Class 10 (Recommended: Class 9)
Product Image

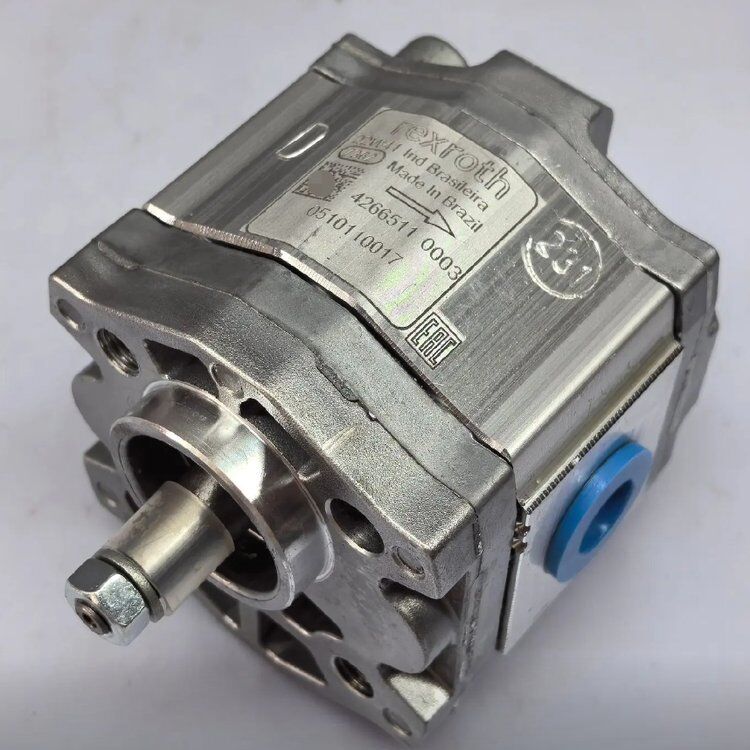

Rexroth AZPF series external gear oil pump - model 0510425009
Related Models
AZPB Series Compatible Models:
AZPB-10-002LNY02MB
AZPB-10-1,0LCP2MB
AZPB-10-1,0LHO01MB
AZPB-10-1,0LNEXXMA
AZPB-10-1,0LNEXXMA-S0073
AZPB-10-1,0LNEXXMB
AZPB-10-1,0LNM02MB-S0071
AZPB-10-1,0LNY02MB
AZPB-10-1,0RCM2MB
AZPB-10-1,0RCP2MB
AZPB-10-1,0RNM02MB-S0071
AZPB-10-1,0RNY02MB
AZPB-10-1.0RHO01MB
AZPB-10-2,0LCP20MB
AZPB-10-2,0LCP2MB
AZPB-10-2,0LNEXXMA
AZPB-10-2,0LNEXXMA-S0073
AZPB-10-2,0LNEXXMA-S0074
AZPB-10-2,0LNEXXMB
AZPB-10-2,0LNM02MB
AZPB-10-2,0LNM02MB-S0071
AZPB-10-2,0LNY20MB
AZPB-10-2,0RCM2MB
AZPB-10-2,0RCP2MB
AZPB-10-2,0RCPXXMA-S0072
AZPB-10-2,0RHO01MB
AZPB-10-2,0RNM02MB
AZPB-10-2,0RNM02MB-S0071
AZPB-10-2,0RNM1MB-S0008
AZPB-10-2,0RNY02MB
AZPB-10-2,0UCP2MB
AZPB-10-2,6LNEXXMA
AZPB-10-2,6LNEXXMA-S0073
AZPB-10-3,0LCP2MB
AZPB-10-3,0LHO01MB
AZPB-10-3,0LNEXXMA
AZPB-10-3,0LNEXXMA-S0073
AZPB-10-3,0LNEXXMB
AZPB-10-3,0LNM02MB
AZPB-10-3,0LNM02MB-S0071
AZPB-10-3,0LNM1MB
AZPB-10-3,0LNM20MB-S0071
AZPB-10-3,0LNY02MB
AZPB-10-3,0RCM2MB
AZPB-10-3,0RCP2KB
AZPB-10-3,0RCP2MB
AZPB-10-3,0RCPXXMA-S0072
AZPB-10-3,0RHO01MB
AZPB-10-3,0RNM02MB-S0071
AZPB-10-3,0RNM1MB-S0008
AZPB-10-3,0RNY02MB
AZPB-10-3,8LNEXXMA
AZPB-10-3,8LNEXXMA-S0073
AZPB-10-3,8LNM20MB-S0071
AZPB-10-4,3RNM1MB-S0008
AZPB-10-4,3RNM2MB
AZPB-10-4,6LNEXXMA
AZPB-10-4,6LNEXXMA-S0073
AZPB-10-4,6LNM20MB-S0071
AZPB-11-2,0L
AZPB-11-2,0R
AZPB-20-3.15LNXXXMX-S045
AZPB-20-6.3LNXXXMX-S0454
AZPB-20-6.3LNXXXMX-S0460
AZPB-21-1.0RXXXXMX-S0310
AZPB-21-10.0RXXXXMX-S0310
AZPB-21-2.0RXXXXMX-S0310
AZPB-21-3.15RXXXXMX-S0310
AZPB-21-4.0RXXXXMX-S0310
AZPB-21-5.0RXXXXMX-S0310
AZPB-21-6.3RXXXXMX-S0310
Frequently Asked Questions
Product & Selection
What does the model code "AZPF-1X-008RCB20MB" mean?
It decodes as follows:
  • AZPF: Series code for high-pressure external gear pumps
  • 1X: Frame size / bearing specification
  • 008: Nominal displacement (8.0 cm³/rev)
  • R: Clockwise rotation
  • C: Tapered shaft 1:5
  • B20: Port and flange configuration (Square flange per ISO 8434-1)
  • MB: Variant code for seals and covers
Is this pump suitable for high-pressure applications?
Yes. The AZPF series is designed for heavy-duty use. This model can handle continuous pressures up to 250 bar and intermittent peaks up to 280 bar, making it ideal for industrial machinery and mobile hydraulics.
Can I get this pump in counter-clockwise rotation?
Yes. Rexroth typically offers a left-hand rotation version (denoted by an 'L' in the suffix, e.g., `...LCB...`). Always verify the rotation direction before installation.
Installation & Operation
What is the recommended operating viscosity?
Operate within 12 to 800 mm²/s. For optimal efficiency and service life, maintain viscosity between 20 and 100 mm²/s. Avoid prolonged operation below 12 mm²/s to prevent internal wear.
What is the maximum allowable speed?
The absolute maximum speed is 3500 rpm. However, the recommended continuous operating range is 1000 to 3000 rpm. Exceeding 3000 rpm may require special suction conditions (e.g., pressurized inlet) to avoid cavitation.
How do I calculate the flow output?
Use the formula:
Flow (L/min) = Displacement (8.0 cm³/rev) × Speed (rpm) / 1000
Actual flow will be slightly less due to volumetric losses (typically 90-95% efficiency).
Maintenance & Troubleshooting
What are common failure signs?
Watch for:
  • Noise: High-pitched whining indicates cavitation (check inlet suction); knocking suggests bearing wear
  • Reduced Flow: Often caused by worn gears or side plates due to contamination
  • External Leakage: Usually from the shaft seal (NBR), often due to age or excessive shaft play
Can this pump be repaired in the field?
While Rexroth provides seal kits, the AZPF pump uses precision sliding bearings and pressure-compensated side plates. Replacing seals is possible, but rebuilding the internal gear set requires specialized tools and pressure testing. For critical applications, an exchange unit is often recommended.
What is the #1 cause of premature failure?
Oil contamination. This pump requires very clean oil (NAS Class 9-10). Always use a pressure filter with a beta ratio (β10) ≥ 100. Running with a clogged suction filter or low oil level can cause cavitation and catastrophic damage.
Disclaimer: This data is based on standard Rexroth documentation for the AZPF series. Always refer to the official RE 10 250 datasheet for your specific application and safety guidelines.
