Product Details:
|
| Mounting Interface: | ISO 5781-AG-06-2-A (NG10 Subplate) | Electrical Connector: | 6-pin + PE (K31) Per DIN EN 175201-804 |
|---|---|---|---|
| Control Signal: | 4 – 20 MA (F1) | Max. Flow Capacity: | 200 L/min |

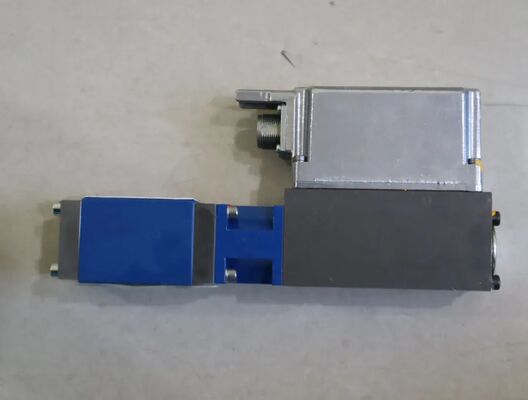

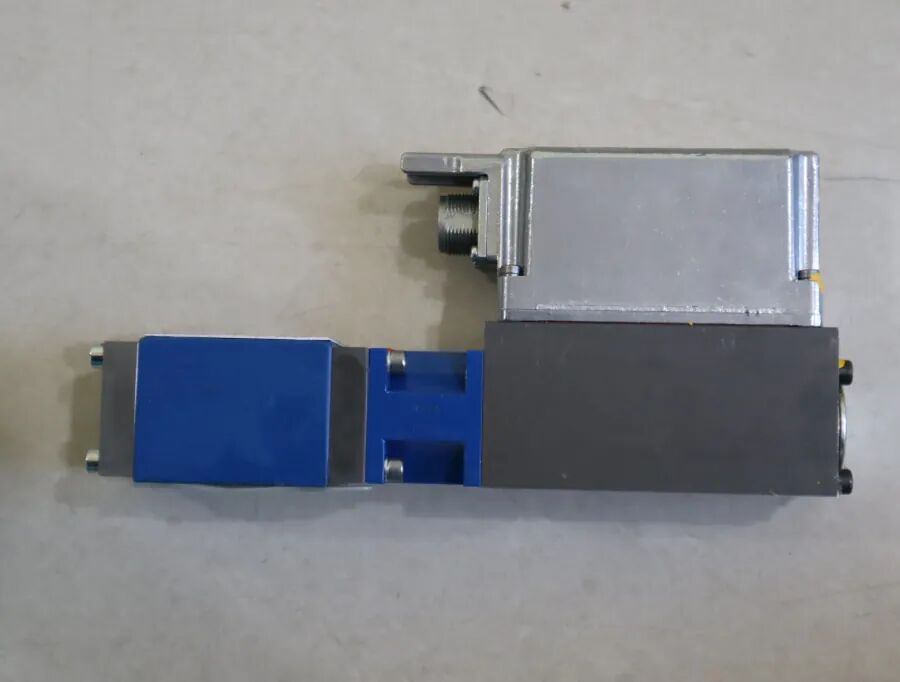

| Model: | DREE10-6X/200YG24K31F1M |
|
Parameter |
Specification |
|---|---|
|
Order Number |
R901278156 |
|
Model |
DREE10-6X/200YG24K31F1M |
|
Type |
Pilot-operated proportional pressure reducing valve (2-way, B→A) |
|
Function |
Reduces inlet pressure (B) to controlled secondary pressure (A); excess flow internally drained |
|
Nominal Size |
NG10 (CETOP 5, Size 10) |
|
Max. Operating Pressure |
Port A & B: 315 bar |
|
Adjustable Pressure Range |
~2 – 200 bar (Electrically proportional, 4–20mA) |
|
Max. Flow Capacity |
200 L/min |
|
Pilot Flow Consumption |
Approx. 0.8 L/min (Internal pilot supply) |
|
Valve Design |
Pilot-operated spool valve, with integrated electronics (OBE) |
|
Supply Voltage |
24V DC (G24) |
|
Control Signal |
4 – 20 mA (F1) |
|
Electrical Connector |
6-pin + PE (K31) per DIN EN 175201-804 |
|
Special Features |
Integrated electronics (OBE), External pilot drain (Y), No maximum pressure limiter, No check valve |
|
Mounting Interface |
ISO 5781-AG-06-2-A (NG10 subplate) |
|
Seal Material |
NBR (M) |
|
Suitable Media |
Mineral oils (HL, HLP), HLP-D, HVLP, HFC fluids |
|
Media Temperature |
-20°C to +80°C |
|
Viscosity Range |
15 – 380 mm²/s (recommended 30–46 mm²/s) |
|
Ambient Temperature |
-20°C to +50°C (electronics) |
|
Cleanliness Requirement |
ISO 4406 20/18/15 or better |
|
Control Performance |
Hysteresis ≤ ±3.5 %, Repeat accuracy < ±2 % |
|
Weight |
Approx. 4.8 kg |
![]()
| R900524530 DRE6-1X/210MG24Z4M |
| R900578089 DRE6-1X/210MG24Z4V |
| R900954429 DRE6-1X/50MG24K4M |
| R900712624 DRE6-1X/50MG24K4V |
| R901208742 DRE6-1X/50MG24N9K4M |
| R901252621 DRE6-1X/50MG24N9K4V |
| R900916195 DRE6-1X/50MG24NK4M |
| R901206527 DRE6-1X/50MG24NK4V |
| R900535381 DRE6-1X/50MG24NZ4M |
| R900553500 DRE6-1X/50MG24NZ4V |
| R900549737 DRE6-1X/50MG24Z4M |
| R901439283 DRE6-1X=210MG24K4M |
| 0811402055 DRE6X-1X/175MG24-8NZ4M |
| 0811402060 DRE6X-1X/175MG24-8NZ4M-6 |
| 0811402056 DRE6X-1X/245MG24-25NZ4M |
| 0811402057 DRE6X-1X/245MG24-25NZ4M-8 |
| 0811402058 DRE6X-1X/310MG24-8NZ4M |
| 0811402054 DRE6X-1X/70MG24-8NZ4M-7 |
| 0811402053 DRE6X-1X/75MG24-25NZ4M |
| 0811402059 DRE6X-1X/75MG24-8NZ4M |
| R901342340 DRE6X-1X/75MG24-8NZ4M-6 |
| R901319104 DREE6-1X/100MG24K24A1M |
| R901307058 DREE6-1X/100MG24K24F1M |
| R901417081 DREE6-1X/100MG24K24F1V |
| R901307063 DREE6-1X/210MG24K24A1M |
| R901332978 DREE6-1X/210MG24K24F1M |
| R901439771 DREE6-1X/210MG24K24F1V |
| R901307057 DREE6-1X/50MG24K24A1M |
| R901426364 DREE6-1X/50MG24N9K24A1M |
| R901326897 DREE6-1X/50MG24N9K24F1M |
| R901384989 DREE6-1X/50MG24N9K24F1V |
| ZDRE 6, ZDREE 6 |
| R900967050 ZDRE6VP1-1X/100MG24K4M |
| R900958957 ZDRE6VP1-1X/100MG24K4V |
| R901252622 ZDRE6VP1-1X/100MG24N9K4M |
| R901252623 ZDRE6VP1-1X/100MG24N9K4V |
| R900915958 ZDRE6VP1-1X/100MG24NK4M |
| R900933523 ZDRE6VP1-1X/100MG24NK4V |
| R900536114 ZDRE6VP1-1X/100MG24NZ4M |
| R900537078 ZDRE6VP1-1X/100MG24Z4M |
| R900914590 ZDRE6VP1-1X/100MG24Z4V |
| R900966203 ZDRE6VP1-1X/210MG24K4M |
| R900719800 ZDRE6VP1-1X/210MG24K4V |
| R901252624 ZDRE6VP1-1X/210MG24N9K4M |
| R901252625 ZDRE6VP1-1X/210MG24N9K4V |
| R900915959 ZDRE6VP1-1X/210MG24NK4M |
| R900915960 ZDRE6VP1-1X/210MG24NK4V |
| R900536527 ZDRE6VP1-1X/210MG24NZ4M |
| R900551016 ZDRE6VP1-1X/210MG24NZ4V |
| R900569277 ZDRE6VP1-1X/210MG24Z4M |
| R900902595 ZDRE6VP1-1X/210MG24Z4V |
| R901442570 ZDRE6VP1-1X/315MG24N9K4M |
| R900617992 ZDRE6VP1-1X/50MG24K4M |
| R901106374 ZDRE6VP1-1X/50MG24K4V |
FAQ:
Integrated Electronics (OBE)
The "E" in DREE confirms On-Board Electronics (OBE). This means the valve contains its own amplifier. You supply 24V DC power and a 4–20 mA command signal directly to the valve's K31 connector. This simplifies wiring and eliminates the need for an external VT-VSPA amplifier.
4–20 mA Control Signal (F1)
The "F1" suffix indicates the control input is a 4–20 mA current signal. This is different from the common 0–10 V variant (A1) and is often preferred for industrial applications due to its noise immunity over long cable runs.
Pressure Rating & Flow (200 bar / 200 L/min)
The "200" denotes the maximum electrically adjustable reduced pressure at port A. This is a high-flow variant (max flow 200 L/min), suitable for large actuator circuits or secondary pressure control in high-power systems.
External Pilot Drain (Y) & No Maximum Pressure Limiter
"Y": The pilot control oil must be drained externally via port Y. This port must be connected directly to the tank with minimal backpressure. High backpressure at Y will cause inaccurate pressure regulation.
No "M" after "200Y": The absence of an "M" code (e.g., compared to 200YMG24) indicates that this valve does not have a mechanical maximum pressure limiter. The maximum pressure is solely controlled by the electronics.
Critical Installation Notes
Port Y Drain: Must be piped separately to tank with a line diameter ≥ 5 mm and length < 2.5 m to avoid backpressure issues.
Zero Signal Pressure: With a 4 mA command signal (or 0 V equivalent), the valve maintains a minimum pressure of approximately 2 bar at port A.
Subplate: Requires an NG10 subplate according to ISO 5781-AG-06-2-A (e.g., Rexroth RE 45062 series).
Correction: Your description mentioned "proportional relief valve", but this model is specifically a proportional pressure reducing valve. It controls the downstream (A-port) pressure, not the system relief pressure.
