PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump

PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump
PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump

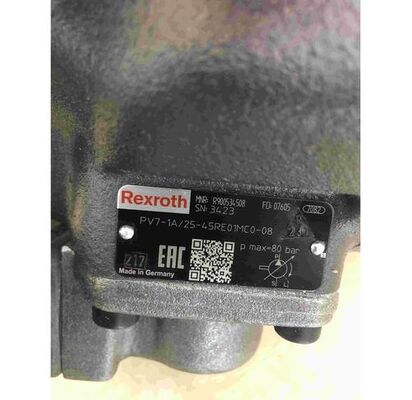

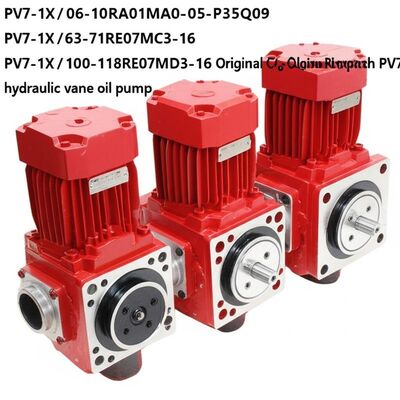

Large Image :  PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: German
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/A,D/P,L/C
Supply Ability: 100
Contact Now

PV7-1X/06-10RA01MA0-05-P35Q09 PV7-1X/63-71RE07MC3-16 PV7-1X/100-118RE07MD3-16 Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump

Description
Speed Range: 600–2800 Mounting Standard: ISO 3019-2 Flange
Minimum Speed: 600 Rpm (ensures Stable Operation) Shaft Connection: Splined Shaft (ISO 4162 Standard) Or Keyed Shaft (customizable)
Weight: 8–15 Kg (varies By Model And Configuration)
Highlight:

Rexroth PV7 hydraulic vane pump

,

German Rexroth PV7 oil pump

,

Rexroth PV7 series vane pump

Rexroth PV7 Series Hydraulic Vane Pumps
Available Models
PV7-1X/06-10RA01MA0-05-P35Q09
PV7-1X/63-71RE07MC3-16
PV7-1X/100-118RE07MD3-16
Spot inventory: Original imported German Rexroth PV7 series hydraulic vane oil pump
Technical Specifications
Parameter/Property CategoryDirect-Acting (PV7-A) SeriesPilot-Operated (PV7-C/D/N/W) SeriesUnitRemarks
Model RangePV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16-1X/2X=component series; 06/14/20=frame size
Displacement per Revolution10-2514-150cm³/revDisplacement varies by specific model suffix
Max. Continuous Working Pressure100160barPV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure120200barShort-term (≤5s) overload only
Speed Range600-2800600-3600rpmHigher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm)36270l/minCalculated at rated displacement
Volumetric Efficiency (Rated Condition)≥90%≥92%%At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation)≥80%≥82%%Includes mechanical & volumetric efficiency
Suction Pressure Range1-0.8 to +1barAbsolute pressure: 0.2-1.1 bar
Fluid CompatibilityMineral oil (HLP), synthetic oil (HETG/HEES)Mineral oil (HLP), synthetic oil (HETG/HEES)-Use FKM seals for synthetic fluids
Fluid Viscosity Range10-1000 (operation); 2-1500 (start-up)10-1000 (operation); 2-1500 (start-up)mm²/sOptimal: 16-160 mm²/s
Fluid Temperature Range-20 to +80-20 to +80°CStorage: -40 to +90 °C
PV7-1X/06-10RA0<div class=Complete Model Listing
PV7-1X/06-10RA01MA0-05-P25Q11
---
PV7-1X/06-10RA01MA0-10-P100Q10
PV7-1X/06-10RA01MA0-05-P35Q09
PV7-1X/63-71RE07MC3-16
PV7-1X/100-118RE07MD3-16
PV7-1X/63-71RE07MW0-16WG
PV7-1X/10-20RE01MD5-10
PV7-1X/25-30RE01MW0-16WG
PV7-1X/40-45RE37MW5-16WG
PV7-1X/100-118RE07MC5-16WG
PV7-1X/63-94RE07MC7-08WG
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
PV7-1X/100-118RE07MC0-16
PV7-1X/63-71RE07MD0-16
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
PV7-1X/40-45RE37MW5-16WH
PV7-1X/10-14RE01MC0-16-P45
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
Frequently Asked Questions
Q: What is the material of the vanes in the PV7 series pumps?
A: The vanes are made of high-strength cast iron or phenolic resin composite materials, which have good wear resistance and self-lubricating properties to adapt to the high-speed sliding environment inside the pump.
Q: Can the PV7 series pump be driven by an electric motor or an internal combustion engine?
A: It can be driven by both; when driven by an internal combustion engine, a flexible coupling with good shock absorption performance should be used, and the engine speed should be stabilized to avoid excessive speed fluctuations affecting the pump's service life.
Q: What is the allowable radial load on the pump shaft of the PV7 series?
A: The allowable radial load is limited; refer to the product manual for specific values. Excessive radial load will cause bearing wear and shaft deflection, so avoid installing pulleys or gears directly on the pump shaft.
Q: How to deal with the problem of shaft seal leakage of PV7 series pumps?
A: First, check whether the shaft seal is worn or aged; if so, replace it in time. In addition, check whether the pump shaft has runout or the oil pressure is too high, and eliminate the root cause before reassembly.
Q: Does the PV7 series pump have a built-in filter?
A: Standard models do not have a built-in filter; it is necessary to configure suction filters, return filters, and high-pressure filters in the system according to the actual needs to ensure oil cleanliness.
