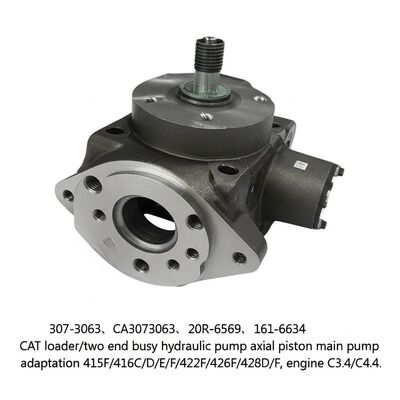

307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4
307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4 307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Large Image :  307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 307-3063、CA3073063、20R-6569、161-6634
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Description
Operating Temperature: Standard: -20°C To 90°C; Custom Low-temperature: -40°C To 90°C (special Oil Seal) Rotation Direction: Clockwise (CW, Standard), Counterclockwise (CCW, Custom Order Only)
Parameter Category: Customizable Options Seal Material: Nitrile Rubber (NBR, Standard), Fluororubber (FKM, Custom For High-temperature Oil)
Highlight:

CAT loader hydraulic pump

,

axial piston main pump

,

Carter hydraulic pump with warranty

307-3063 CAT Loader Hydraulic Pump - Axial Piston Main Pump

Part Numbers: 307-3063, CA3073063, 20R-6569, 161-6634

Compatible with: CAT 415F/416C/D/E/F/422F/426F/428D/F loaders, Engine C3.4/C4.4

Technical Specifications
Pump Type OEM Part Number Applicable Equipment Displacement (cc/r) Rated Pressure (MPa) Rotation Mounting Standard
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise SAE A
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise SAE B
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise SAE C
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise SAE D
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise SAE B
307-3063、CA3073063、20R-6569、161-6634 CAT loader/two end busy hydraulic pump axial piston main pump adaptation 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4 0
Equipment Compatibility & Part Numbers
Mini Excavators (3-10 tons)

Main Pump: 487-6207 CA4876207, 566-7021, 241-7972, 163-9762, 241-9299

Compatible Models: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc.

Pilot/Gear Pump: 560-0886, 211-6626

Small Excavators (3-10 tons)

Main Pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

Compatible Models: 305.5E/306E/307D/308E/312D/317, etc.

Pilot/Gear Pump: 126-2016, 284-3536

Medium Excavators (20-36 tons)

Main Pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102

Compatible Models: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.

Rotary Pumps: 204-4916, 204-4922

Pilot/Gear Pump: 175-6253, 397-6960

Large Excavators (37+ tons)

Main/Rotary Pumps: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

Compatible Models: 336GC/340/345/349/374F/385/390F/395GC, etc.

Pilot/Gear Pump: 564-9801, 234-4638

Loader/Busy at Both Ends

Main Pump: 307-3063 CA3073063, 20R-6569, 161-6634, 235-4110, 100-3259, 121-7385

Compatible Models: 415F/416C/D/E/F/422F/426F/428D/F, Engine C3.4/C4.4

Pilot/Gear Pump: 175-6253, 397-6960

Frequently Asked Questions
Q1: How to check hydraulic pump flow rate?
A: Use a flow meter connected to the pump's outlet port, measure the flow under rated pressure, and compare it to the OEM specifications.
Q2: What is the difference between a main pump and a swing pump in Cat excavators?
A: The main pump supplies hydraulic power for overall movements (boom, arm, bucket), while the swing pump is dedicated to the excavator's upper structure rotation.
Q3: Can Cat hydraulic pumps be repaired on-site?
A: Minor issues (e.g., seal replacement, fitting tightening) can be fixed on-site, but major damage (e.g., internal cylinder block wear) requires workshop disassembly and repair.
Q4: What is the OEM part number for the swing pump of Cat 374F?
A: The common swing pump part number for Cat 374F is 593-3840, a double piston pump.
Q5: Why does a hydraulic pump experience cavitation?
A: Cavitation is caused by low oil level, restricted suction lines, high oil viscosity at low temperatures, or a clogged suction filter.
Q6: Are Cat hydraulic pump parts interchangeable between different equipment models?
A: Only if the models share the same hydraulic system specifications; always verify with the parts manual or dealer before interchange.
