369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC
369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC 369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

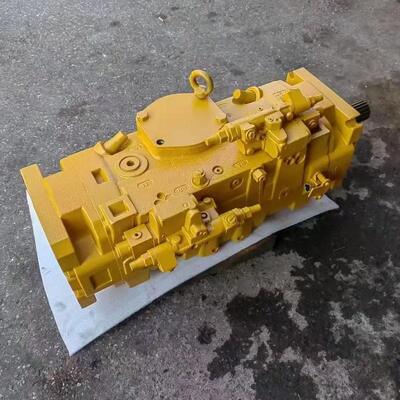

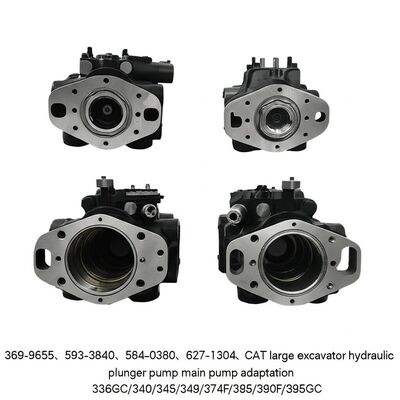

Large Image :  369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 369-9655、593-3840、584-0380、627-1304
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC

Description
Parameter Category: Customizable Options Rated Pressure: 21–38 MPa (custom High-pressure Versions Up To 42 MPa For Mining Equipment)
Operating Temperature: Standard: -20°C To 90°C; Custom Low-temperature: -40°C To 90°C (special Oil Seal) Main Pumps, Pilot Pumps: Confirm Base Plate Dimensions And Bolt Hole Positions Before Customization
All Pump Types: Low-temperature Customization Requires Anti-freezing Hydraulic Oil Matching
Highlight:

CAT excavator hydraulic plunger pump

,

large excavator main pump

,

Carter hydraulic pump with warranty

CAT Large Excavator Hydraulic Plunger Pump Main Pump

369-9655, 593-3840, 584-0380, 627-1304 CAT large excavator hydraulic plunger pump main pump adaptation for 336GC/340/345/349/374F/385/390F/395GC models.

Product Specifications
Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction Mounting Standard
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise SAE A
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise SAE B
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise SAE C
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise SAE D
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise SAE B
369-9655、593-3840、584-0380、627-1304 CAT large excavator hydraulic plunger pump main pump adaptation 336GC/340/345/349/374F/385/390F/395GC 0
Equipment Compatibility by Size Category
Mini Excavators (1-3 tons)

Main Pump: 487-6207 CA4876207, 566-7021, 241-7972, 163-9762, 241-9299

Compatible Models: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc.

Pilot/Gear Pump: 560-0886, 211-6626

Small Excavators (3-10 tons)

Main Pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

Compatible Models: 305.5E/306E/307D/308E/312D/317, etc.

Pilot/Gear Pump: 126-2016, 284-3536

Medium Excavators (20-36 tons)

Main Pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102

Compatible Models: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.

Rotary Pumps: 204-4916, 204-4922

Pilot/Gear Pump: 175-6253, 397-6960

Large Excavators (37+ tons)

Main Pump/Rotary Pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

Compatible Models: 336GC/340/345/349/374F/385/390F/395GC, etc.

Pilot/Gear Pump: 564-9801, 234-4638

Loader/Backhoe Loaders

Main Pump: 307-3063 CA3073063, 20R-6569, 161-6634, 235-4110, 100-3259, 121-7385

Compatible Models: 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Pilot/Gear Pump: 175-6253, 397-6960

Bulldozers (D7/D8/D9 series)

Main Pumps: 9T-8647, 9T-8346, 100-6239/OR-7677, 9J-5068, 9T-8647, 6E-5072

Frequently Asked Questions
Q1: How to extend the service life of a Cat hydraulic pump?

Replace hydraulic oil and filters per the maintenance schedule, keep the system sealed to avoid contamination, monitor operating temperature (50-80°C optimal), and avoid dry starts or prolonged no-load high-speed operation.

Q2: Why is part number 487-6207 not suitable for Cat excavators over 3 tons?

487-6207 is designed for mini-excavators (1-3 tons) with a small displacement that cannot meet the high-power demands of larger excavators.

Q3: What is the difference between a Cat pump's OEM part number and its replacement number?

The OEM number is the original factory code, while replacement numbers (often prefixed with "CA-") are for upgraded/remanufactured versions that are fully compatible with the original equipment.

Q4: How to troubleshoot abnormal noise from a Cat hydraulic pump?

Check for low oil level (cavitation noise), blocked/leaking suction lines (air intake), misaligned/worn couplings (mechanical noise), or internal pump wear (scraping noise requiring repair).

Q5: What is the typical rated pressure range for Cat excavator main hydraulic pumps?

Most Cat excavator main pumps have a rated pressure range of 28-38 MPa, varying by equipment size and application.

Tag:

excavator hydraulic pump for 301.5,

Carter hydraulic pump with warranty,

excavator pump compatible with 302CR
