272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE

272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE
272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE 272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE

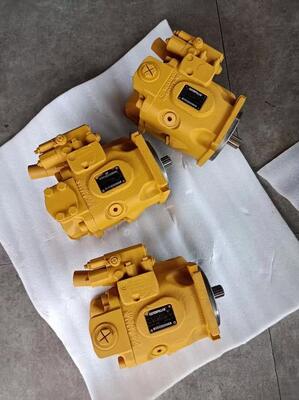

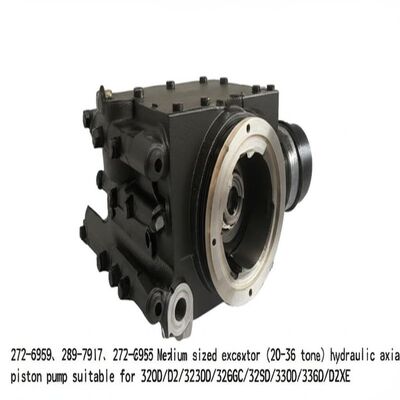

Large Image :  272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 272-6959、289-7917、272-6955
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE

Description
Main Axial Piston Pumps: Overpressure Customization Requires Reinforced Internal Components Applicable Pump Types: Application Notes
Control Mode: Manual Control, Hydraulic Proportional Control, Electric Proportional Control (PLC) Rotation Direction: Clockwise (CW, Standard), Counterclockwise (CCW, Custom Order Only)
Variable-displacement Axial Piston Pumps: Electric Control Enables Remote Flow Adjustment For Automated Equipment Displacement Range: 8.2–280 Cc/r (adjustable For Variable-displacement Pumps)
Highlight:

Caterpillar excavator hydraulic pump

,

320D compatible hydraulic piston pump

,

20-36 ton excavator axial pump

272-6959、289-7917、272-6955 Medium Sized Excavator (20-36 Tons) Hydraulic Axial Piston Pump

Suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE excavators

Technical Specifications
Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction Mounting Standard
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise SAE A
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise SAE B
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise SAE C
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise SAE D
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise SAE B
272-6959、289-7917、272-6955 Medium sized excavator (20-36 tons) hydraulic axial piston pump suitable for 320D/D2/323D2/326GC/329D/330D/336D/D2XE 0
Compatible Pump Systems
Small Excavator (3-10 Tons)
  • Main pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004
  • Adaptation: 305.5E/306E/307D/308E/312D/317, etc.
  • Pilot/gear pump: 126-2016, 284-3536
Medium Sized Excavator (20-36 Tons)
  • Main pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102
  • Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.
  • Rotary pumps: 204-4916, 204-4922
  • Pilot/gear pump: 175-6253, 397-6960
Large Excavator (Over 37 Tons)
  • Main pump/rotary pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950
  • Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc.
  • Pilot/gear pump: 564-9801, 234-4638
Frequently Asked Questions
Q1: What is the service life of a Cat OEM hydraulic pump under normal conditions?
A: Under proper maintenance and operation, Cat OEM pumps typically last 8,000-12,000 operating hours.
Q2: What is the replacement part number for Cat pump 487-6207?
A: The direct replacement part number for 487-6207 is CA4876207, an upgraded remanufactured version.
Q3: How to prevent hydraulic pump contamination?
A: Keep hydraulic oil tanks sealed, replace filters regularly, clean the oil fill cap before refueling, and avoid using contaminated tools during maintenance.
Q4: What is the rated displacement of Cat pump 369-9655?
A: The 369-9655 axial piston pump has a displacement of approximately 280 cc/r, suitable for large excavators like 374F/390F.
Q5: Can cold weather affect Cat hydraulic pump performance?
A: Yes, cold temperatures increase oil viscosity, leading to poor lubrication, reduced flow rate, and increased pump startup load.

Tag:

excavator hydraulic pump for 301.5,

Carter hydraulic pump with warranty,

excavator pump compatible with 302CR
