Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control

Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control
Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control

Image Grand :  Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control

Détails sur le produit:
Lieu d'origine: allemand
Nom de marque: MOOG
Certification: ISO
Numéro de modèle: 743f002B G122-824-002 G122-829-001 G423-604-L25 G413-604A C08428-001 D661-5009 631F751F D122-034-017
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: 2
Détails d'emballage: Boîte en bois
Délai de livraison: 2 semaines
Conditions de paiement: Moneygram, Western Union, T / T, D / P, D / A, L / C
Capacité d'approvisionnement: 30
Contact

Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control

description de
Type de montage: Montage des brides Origine: Chine
Direction de rotation: Dans le sens horaire ou dans le sens antihoraire Couleur: Noir
Carburant: Essence Type de joint: Joint à lèvres ou joint mécanique
Rotation: Dans le sens horaire ou dans le sens antihoraire Cote de pression: 280 bar
Chargement: micro5p Application: Hydraulique mobile et industrielle
Pression: Haute pression Vitesse: 3 paramètres de vitesse
Couleur: Comme votre demande
Mettre en évidence:

3 Speed Settings Moog Servo Valve

,

280 bar Pressure Rating Electro-Hydraulic Servo Valve

,

24V 220V Voltage Proportional Servo Valve

MOOG Electro-Hydraulic Servo Valve

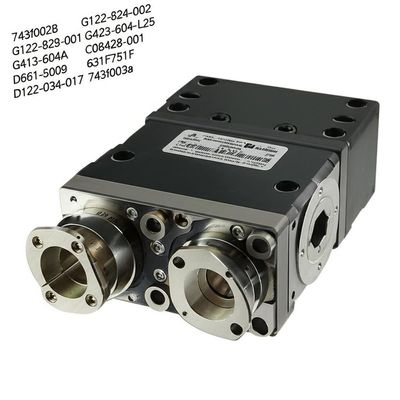

Product Identification
743f002B G122-824-002
G122-829-001 G423-604-L25
G413-604A C08428-001
D661-5009 631F751F
D122-034-017 743f003a
Technical Specifications
ParameterValueParameterValue
Rated current1AVoltage24V/220V
Power0.1 kWModel743f002B G122-824-002
BrandMOOGPlace of originGermany
ApplicationLED touch controlMaterialPVC, Steel, Copper
Rated frequency50 HzTypeServo proportional valve
ControlElectro hydraulic/ProportionalWhatsapp+85267220981
Compatible Models
D633-473B R08K01F0VSX2
D633-481B
D633-500B R02K01MOVSX2
D633-521B/R16K01FONSX2
D633-525B
D633-526B R02KO1DONSP2
D633-593B
D633-594B
D633-595B
D633-596B
D633-597B
D633-598B
D633-599B
D633-602B
D633-603B
D633-604B
D633-605B
D633-606B
D633-607B
D633-608B
D633-610B
D633-611
D633-612
D633-613
D633-615
D633-616
D633-617
D633-618
D633-619
D633-620
D633-621
D633-622
D633-623
D633-624
D633-7213/A02KA4F0VAY
D633-7235
D633-7369
D633-7375/A02KO4F0HNY
D633-D2500B RXXKX1FONSS2
D633-D2501B R04KD1MONSM2
D633K2025
D633-R04KO1MOVSS2
D633Z371B
D634-301C/R40KO2M0NSM2
D634-319C
D634-319C R40KO2M0NSP2
D634-341C
D634-341C D634-319C
D634-341C R40K02M0NSS2
D634-341C R40KO2M0NSS2
D634-383C R24K02MONSX2
D634-501A
D634-520A
D634-528A R40KO2F0NSX2
D634-538A
D634Z1022
D635-124E
D635-671E
D635-671E D635-671E
D635Z681
D638-216-0001 R08UB1F0VSE2MBDK1B1
D656-430D-4 P20KBEAANDA0N
D661-/G35JOAA4VSM2HA
D661-/G75HOC04NSD2HA
D661-011A
D661-027C
D661-030C
D661-031A
D661-039C
D661-043D
D661-053D
D661-061D
D661-1701E
D661-1702E
D661-1703E
D661-1704E
D661-1705E
D661-1705E-5
D661-1709E
D661-1710E
D661-1715E-4
D661-1719F
D661-1722E-5
D661-1727E
D661-1729E
D661-1730E
D661-188D-4
D661-188D-5
D661-1901E
D661-1906E-4
D661-1907E-4
D661-1907E-7
D661-1912E
D661-1913E
D661-1915E-6
D661-1918E
D661-191D-5
D661-1924E
D661-1925E P80HDAAFNVB0
D661-1925E P80HDAAFNVB0 ***
D661-1925E P80HDAAFNVB0 现货
D661-1926E
D661-1927E-4
D661-192D-5
D661-1931E
D661-1932E
D661-1933E-4
D661-1933E-6
D661-1937E-4
D661-1937E-6
D661-1940E
D661-1942E
D661-1943E
D661-1945E-4
D661-1945E-6
D661-1946E
D661-1954E
D661-1955E
D661-1957E
D661-1960E
D661-1962E
D661-1963E
D661-1964E
D661-1965E
D661-1966E
D661-20***
D661-212D
D661-213C
D661-214D
D661-220A
D661-246A
D661-2503/H30KOGMJNSF2
D661-312A
D661-312A-4
D661-318B-5
D661-318D-4
D661-318D-5
D661-319D
D661-323D
D661-324D
D661-326D
D661-344A
D661-350A
D661-351A-4
D661-351A-5
D661-353B
D661-360D
D661-364B-5
D661-36***
D661-369D
D661-371D
D661-386A
D661-393D
D661-4008
D661-4009
D661-4010
D661-4011
D661-4012
D661-4013
D661-4014
D661-4015
D661-4019
D661-4020B
D661-4021
D661-4022
D661-4023
D661-4024
D661-4025
D661-4026
D661-4027
D661-4028
D661-4029
D661-4030
D661-4031
D661-4032B
D661-4033
D661-4033 1156-421 P80HAAF6VSX2-A
D661-4033 P80HAAF6VSX2-A
D661-4034
D661-4035
D661-4036
D661-4038
D661-4039
D661-4040
D661-4041
D661-4042
D661-4043
D661-4044
D661-4045B
D661-4045B/P80HXBF4NSD2-B

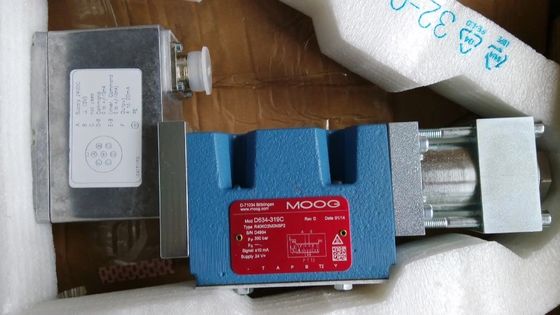

Product Image
Moog Servo Valve with 3 Speed Settings 280 bar Pressure Rating and 24V 220V Voltage for Electro-Hydraulic Control 0
Frequently Asked Questions
1. What is a Moog electro-hydraulic servo valve?

A Moog electro-hydraulic servo valve is a high-precision component that converts electrical signals into hydraulic power output. It controls hydraulic flow and pressure to regulate position, speed, force, or pressure in systems like industrial machinery, aerospace actuators, and turbine controls. Its design typically includes a torque motor, nozzle-flapper pilot stage, and spool valve for accurate performance.

2. What are the key features?
  • High precision: Control accuracy up to ~0.1%
  • Fast dynamic response: Responds within milliseconds
  • Programmability: Customizable control algorithms via embedded electronics
  • Robustness: Operates in harsh environments (-20°C to 80°C) and resists contamination
  • Fail-safe function: Automatic shutdown during power loss or failure
3. What are common failure modes?
  • Torque motor issues:
    • Coil breakage (valve fails to respond)
    • Armature sticking or ball head wear (causing instability)
  • Nozzle/flapper blockages: Clogging from oil contamination reduces response and causes system oscillation
  • Spool amplifier problems:
    • Edge wear (increases leakage and noise)
    • Spool sticking due to contaminated or degraded oil
  • Seal aging: Leads to internal/external leakage
4. How to maintain servo valves?
  • Oil quality management: Use recommended fluids (e.g., phosphate ester fire-resistant oil) and maintain cleanliness per NAS 1638 Class 5 standards. Regularly check acidity and resistivity
  • Routine inspections: Test for electrical issues (e.g., coil resistance), clean filters, and check for loose components
  • Pre-startup checks: Ensure oil circulation before powering the valve to prevent clogging
5. How to troubleshoot unstable operation (e.g., cylinder drift or oscillation)?
  • Check servo valve resolution and zero zone stability
  • Inspect for internal leakage or spool wear
  • Verify control system parameters and calibrate zero bias if needed
6. What if the valve doesn't move?
  • Confirm electrical signals and coil connectivity
  • Check for spool sticking caused by debris in oil
  • Ensure correct startup sequence: oil flow before electrical power
7. Can Moog servo valves be customized?

Yes. Models like the D636/D637 series support fieldbus interfaces and programmable electronics for application-specific tuning.

8. What specifications should I consider?
  • Operating pressure: Up to 350 bar
  • Flow rate: 5-100 L/min (at Δp 35 bar)
  • Voltage/current: Typically 220V, 1.5A
  • Mounting: Complies with ISO 4401 standards
