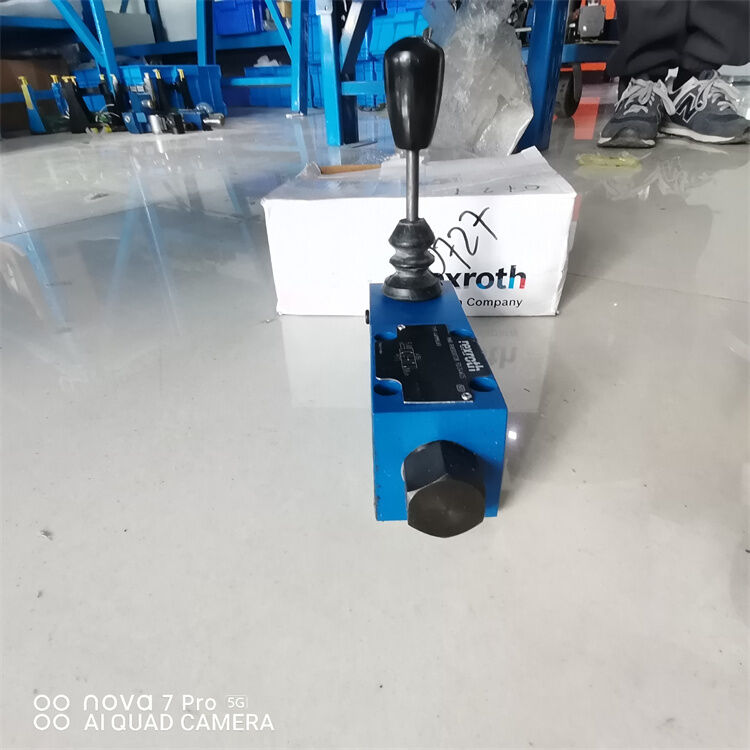

R983030733 4WMM6E6X/F Manual directional valve from Rexroth Germany

I'm Online Chat Now

R983030733 4WMM6E6X/F Manual directional valve from Rexroth Germany

R983030733  4WMM6E6X/F Manual directional valve from Rexroth Germany
R983030733  4WMM6E6X/F Manual directional valve from Rexroth Germany

Large Image :  R983030733 4WMM6E6X/F Manual directional valve from Rexroth Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: R983030733 4WMM6E6X/F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100

R983030733 4WMM6E6X/F Manual directional valve from Rexroth Germany

Description
Fluid Cleanliness​: ISO 4406 Class 20/18/15 (Recommended: Cleaner) Viscosity Range​: 2.8 - 500 Mm²/s (Optimal: 20 - 100 Mm²/s)
Hydraulic Fluid​: Mineral Oils (HL, HLP), HFC, HFD, HETG, HEES Weight​: Approx. 1.4 Kg
Sealing Material​: NBR (Standard For Mineral Oils)
Highlight:

Rexroth manual directional valve

,

Rexroth hydraulic valve 4WMM6E6X/F

,

Germany Rexroth hydraulic valve

Parameter

Specification

Manufacturer Part No.

R983030733

Valve Type

Manual Directional Spool Valve (Direct-Acting)

Series / Platform

WMM Series, Size NG6 (CETOP 03), Component Series 6X

Spool Type

E-Type​ (Defines center position flow pattern)

Max. Operating Pressure

315 bar​ (Ports P, A, B)
160 bar​ (Port T - Return)

Max. Flow Rate

60 L/min​ (Recommended for standard pressure drop)

Port Connection

NG6 Interface (ISO 4401-03-02-0-05 / DIN 24340 Form A)

Mounting

Subplate Mounting (Base plate ordered separately)

Actuation

Manual Lever with Detent / Position Lock​ (/F​ suffix)

Sealing Material

NBR (Standard for mineral oils)

Weight

Approx. 1.4 kg

Hydraulic Fluid

Mineral oils (HL, HLP), HFC, HFD, HETG, HEES

Viscosity Range

2.8 - 500 mm²/s (Optimal: 20 - 100 mm²/s)

Fluid Cleanliness

ISO 4406 Class 20/18/15 (Recommended: Cleaner)

R983030733  4WMM6E6X/F Manual directional valve from Rexroth Germany  0

R987098779 4WREE10E50-2X/G24K31/F1V=CSA
R901356207 4WREE10E75-2X/G24K31/A1M
R900927230 4WREE10E75-2X/G24K31/A1V
R900716433 4WREE10E75-2X/G24K31/A1V-280
R901219782 4WREE10E75-2X/G24K31/A1V=XV
R901354781 4WREE10E75-2X/G24K31/F1M
R900927356 4WREE10E75-2X/G24K31/F1V
R901395952 4WREE10E75-2X=G24K31/A1V
R900967790 4WREE10EA25-2X/G24K31/A1V
R900767561 4WREE10EA25-2X/G24K31/F1V
R900939866 4WREE10EA50-2X/G24K31/A1V
R900971420 4WREE10EA50-2X/G24K31/F1V
R900940191 4WREE10EA75-2X/G24K31/A1V
R900976330 4WREE10EA75-2X/G24K31/F1V
R900710343 4WREE10EB50-2X/G24K31/A1V
R900950497 4WREE10EB75-2X/G24K31/A1V
R900724343 4WREE10EB75-2X/G24K31/F1V
R900927237 4WREE10Q2-50-2X/G24K31/A1V
R900927236 4WREE10Q2-75-2X/G24K31/A1V
R901066046 4WREE10Q5-50-2X/G24K31/A1V
R901113345 4WREE10Q5-50-2X/G24K31/A1V=DE
R901028415 4WREE10R3-75-2X/G24K31/A1V
R901341484 4WREE10R3-75-2X/G24K31/F1V
R901037424 4WREE10R75-2X/G24K31/A1V
R900724591 4WREE10R75-2X/G24K31/F1V
R901007660 4WREE10R75-2X/G24K31/F1V-741
R900950365 4WREE10V1-25-2X/G24K31/A1V
R900976334 4WREE10V1-25-2X/G24K31/F1V
R900943804 4WREE10V1-50-2X/G24K31/A1V
R900972643 4WREE10V1-50-2X/G24K31/F1V
R901233907 4WREE10V1-50-2X/G24K31/F1V-876
R901412403 4WREE10V1-75-2X/G24K31/A1M
R900950902 4WREE10V1-75-2X/G24K31/A1V
R901400160 4WREE10V1-75-2X/G24K31/F1M
R901024870 4WREE10V1-75-2X/G24K31/F1V
R900933075 4WREE10V25-2X/G24K31/A1V
R900779950 4WREE10V25-2X/G24K31/F1V
R900927235 4WREE10V50-2X/G24K31/A1V
R987243696 4WREE10V50-2X/G24K31/A1V-826+3.1K
R901354782 4WREE10V50-2X/G24K31/F1M
R900924975 4WREE10V50-2X/G24K31/F1V
R900924607 4WREE10V75-2X/G24K31/A1V
R987243698 4WREE10V75-2X/G24K31/A1V-826+3.1K
R901354783 4WREE10V75-2X/G24K31/F1M
R900617269 4WREE10V75-2X/G24K31/F1V
R900956458 4WREE10W1-25-2X/G24K31/A1V
R900962405 4WREE10W1-25-2X/G24K31/F1V
R900933077 4WREE10W1-50-2X/G24K31/A1V
R901154931 4WREE10W1-50-2X/G24K31/A1V-280
R901354784 4WREE10W1-50-2X/G24K31/F1M
R900965185 4WREE10W1-50-2X/G24K31/F1V
R901371014 4WREE10W1-75-2X/G24K31/A1M
R900927234 4WREE10W1-75-2X/G24K31/A1V
R901154933 4WREE10W1-75-2X/G24K31/A1V-280
R901354786 4WREE10W1-75-2X/G24K31/F1M
R900976119 4WREE10W1-75-2X/G24K31/F1V
R901185591 4WREE10W2-75-2X/G24K31/A1V
R901377557 4WREE10W25-2X/G24K31/A1M
R900933074 4WREE10W25-2X/G24K31/A1V
R901127151 4WREE10W25-2X/G24K31/A1V-280
R900953102 4WREE10W25-2X/G24K31/F1V
R900935771 4WREE10W3-25-2X/G24K31/A1V
R900931319 4WREE10W3-50-2X/G24K31/A1V
R900969321 4WREE10W3-75-2X/G24K31/A1V
R900244748 4WREE10W3-75-2X/G24K31/F1V
R900931371 4WREE10W50-2X/G24K31/A1V
R900974227 4WREE10W50-2X/G24K31/A1V-280
R901354788 4WREE10W50-2X/G24K31/F1M
R900949806 4WREE10W50-2X/G24K31/F1V
R900927233 4WREE10W75-2X/G24K31/A1V
R901135118 4WREE10W75-2X/G24K31/A1V-280
R900969501 4WREE10W75-2X/G24K31/A1V=DE
R900741017 4WREE10W75-2X/G24K31/A1V=LB
R901354791 4WREE10W75-2X/G24K31/F1M
R900948360 4WREE10W75-2X/G24K31/F1V
R901430295 4WREE10WA25-2X/G24K31/A1V
R901060996 4WREE10WA25-2X/G24K31/F1V
R900247296 4WREE10WA50-2X/G24K31/A1V
R901063131 4WREE10WA50-2X/G24K31/F1V
R901002587 4WREE10WA75-2X/G24K31/A1V
R900963483 4WREE10WA75-2X/G24K31/F1V

Frequently Asked Questions (FAQ)

1. Basic Parameters & Selection

Q: What is the key feature of the "E" spool in 4WMM6E6X/F?

A: The letter "E"​ denotes the spool type, which defines the internal flow path pattern in the center (neutral) position. For the E-type spool, the typical configuration is P port connected to T port (tank), while A and B ports are closed. This provides "Open Center" unloading​ in the neutral position, allowing the pump to unload back to the tank while locking the actuator in place.

Q: What does the "/F" suffix mean?

A: The "/F" suffix​ indicates that this valve is equipped with a detent mechanism (定位机构). This means the lever will mechanically lock into each position (left, center, right) and stay there without the operator needing to hold it. This is ideal for applications requiring sustained pressure or position hold.

Q: What is the maximum flow and pressure?

A: This NG6 size valve is rated for a maximum working pressure of 315 bar​ on P, A, B ports, but the return port (T) is limited to 160 bar. The recommended maximum flow is 60 L/min​ to avoid excessive pressure drops.

2. Installation & Commissioning

Q: How is this valve mounted?

A: It is a subplate-mounted valve. It requires a separate NG6 base plate (mounting interface per ISO 4401-03-02-0-05) that is screwed onto the manifold or tank. The valve then mounts onto this base plate.

Q: What are the critical installation warnings?

A:

  • Port T Pressure:​ The return port (T) has a significantly lower pressure rating (160 bar) than the P, A, B ports (315 bar). Ensure your system's backpressure does not exceed this limit, as high backpressure can damage the valve and cause leakage.

  • Cleanliness:​ The valve contains precision spools. Install it only in a clean environment and flush the system thoroughly before commissioning.

Q: How do I connect the ports?

A: The standard port configuration is:

  • P: Pressure In (from pump)

  • T: Tank Return

  • A, B: Work ports (to cylinder or motor)

3. Operation & Troubleshooting

Q: The lever is very hard to operate or won't stay in position.

A: High operating force or failure to lock is usually due to:

  1. High System Pressure:​ The spool is under pressure, creating a hydraulic lock. Operate the lever only when the system pressure is low or relieved.

  2. Detent Mechanism Issue:​ The detent ball or spring inside the /F mechanism may be worn or damaged, preventing proper locking.

  3. Contamination:​ Dirt or varnish inside the valve can cause the spool to stick. Check the oil cleanliness.

Q: The cylinder drifts slowly when the valve is in the center position.

A: This is typically not a valve failure​ but a function of the E-type spool. The E-spool is designed to close A and B ports in the center. If drift occurs, it is likely due to:

  • Internal Leakage:​ Worn spool seals or a damaged cylinder.

  • Spool Wear:​ Contamination causing erosion of the spool edges, allowing internal leakage past the lands.

Q: There is external leakage from the shaft or mounting area.

A: This indicates worn shaft seals or a damaged O-ring between the valve and the subplate. The valve requires disassembly and resealing. Ensure the mounting bolts are torqued correctly to avoid warping the subplate.

4. Maintenance

Q: What type of oil and cleanliness are required?

A: Use ISO VG 32/46/68 mineral-based oils (HL, HLP). The oil cleanliness must be NAS Class 9 or cleaner​ (ISO 4406 18/16/13) for long service life. Contamination is the primary cause of spool sticking and wear.

Q: Can I repair this valve myself?

A: Limited repair is possible.​ Seal kits are available for replacing external O-rings and shaft seals. However, repairing the internal spool, body, or detent mechanism requires specialized equipment. For critical applications, replacing the valve is often more reliable than attempting a field repair.

Q: What is the expected service life?

A: Under correct conditions (clean oil, within pressure ratings), the mechanical life can be several million cycles. The primary failure modes are seal wear​ and spool sticking due to contamination.

Disclaimer:​ This data is based on standard Rexroth WMM series documentation. The exact center position flow pattern is defined by the "E" code, which should be verified with the supplier's datasheet. Always refer to the official technical data (RE 25706 or similar) for your specific application and safety guidelines.
