0510525033 AZPF-1X-011RQR20MB German Rexroth gear oil pump

0510525033 AZPF-1X-011RQR20MB German Rexroth gear oil pump
0510525033 AZPF-1X-011RQR20MB German Rexroth gear oil pump

Large Image :  0510525033 AZPF-1X-011RQR20MB German Rexroth gear oil pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: 0510525033 AZPF-1X-011RQR20MB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

0510525033 AZPF-1X-011RQR20MB German Rexroth gear oil pump

Description
Pump Type​: External Gear Pump, Fixed Displacement Series / Platform​: AZPF Series F (High Performance)
Geometric Displacement​: 11.0 Cm³/rev Rotation (viewed From Shaft End)​: Clockwise (Right-Hand)
Drive Shaft​: Straight Shaft With Key
Highlight:

Rexroth gear oil pump

,

German Rexroth hydraulic pump

,

AZPF-1X-011RQR20MB gear pump

0510525033 AZPF-1X-011RQR20MB German Rexroth Gear Oil Pump
Product Specifications
Manufacturer Part No. 0510525033
Pump Type External Gear Pump, Fixed Displacement
Series / Platform AZPF Series F (High Performance)
Geometric Displacement 11.0 cm³/rev
Rotation (viewed from shaft end) Clockwise (Right-Hand)
Pressure Ratings Max. Continuous: 250 bar
Max. Intermittent: 280 bar
Peak Pressure: 300 bar
Speed Range Recommended: 1000 - 3000 rpm
Maximum: 3500 rpm (dependent on suction conditions)
Drive Shaft Straight Shaft with Key
Port Connection Rectangular Flange (ISO 3019-2 / DIN 24342)
Mounting Flange Rectangular Flange, Ø80 mm
Housing Material Aluminum
Sealing Material NBR (Standard, for mineral oils)
Weight Approx. 3.5 - 4.0 kg
Hydraulic Fluid Mineral-based oils (HL, HLP), HFC, HFD, HETG, HEES
Viscosity Range 12 - 800 mm²/s (Optimal: 20 - 100 mm²/s)
Fluid Cleanliness NAS 1638 Class 10 (Recommended: Class 9)
Product Image

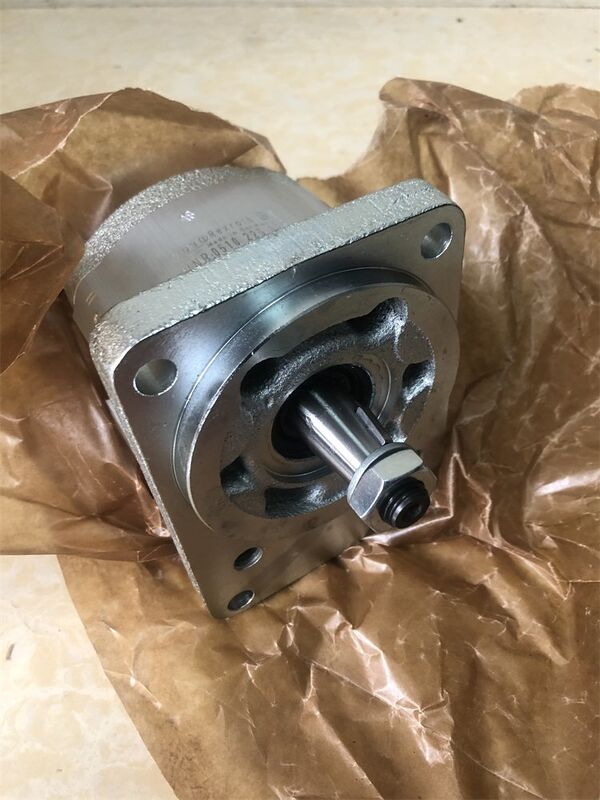

Rexroth AZPF Series Gear Oil Pump - Model 0510525033
Compatible Part Numbers
0510525072 AZPF-11-011RRR20KB-S0023
0510525073 AZPF-11-014RRR20KB-S0023
0510525376 AZPF-11-011LAB1MB
0510625071 AZPF-11-016RRR20KB-S0023
0510665023 AZPFF-10-016/016RCB2020MB
0510725030 AZPF-12-022RCB20KB
0510725102 AZPF-11-022RRR20KB-S0023
0510725105 AZPN-11-028RDC7KB-S0023
0510725324 AZPG-11-032LDC20MB
0510725328 AZPG-11-045LDC20MB
0510725405 AZPN-11-025LDC7KB-S0023
0510725407 AZPN-11-032LDC7KB-S0023
0510765064 AZPNF-11-032/008RDC720KB-S0023
0510765065 AZPNF-11-032/011RDC720KB-S0023
0510765364 AZPFF-11-022/022LRR2020KB-S0023
0510766010 AZPNF-11-025/014RDC2020KB
0510766309 AZPGG-12-028/028LDC2020MB
0510901010 AZPFF-11-019/019LRR2020MB
0511625602 AZMF-10-016UCB20ML
0511645302 AZMF-10-019LSA20MB
0511645603 AZMF-10-019USA20ML
01517222370 AZPF-10-004RCB20MM
R9510290224 AZ-P-F-12-014-RAB01MB
R902650572 AZPF-11-004LRR20KB-S0023
R902650577 AZPF-11-011RRR20KB-S0023
R902650583 AZPF-11-019RRR20KB-S0023
R902650584 AZPF-11-019LRR20KB-S0023
R902650646 AZPN-11-025RDC07KB-S0023
R918A03158 AZPFF-11-011/005RRR2020MB
R918BJ0786 AZPF-11-011RRR20KB-S0023
R918C00023 AZPB-10-1,0RCP2MB
R918C00042 AZPB-10-2,0LCP2MB
R918C00052 AZPB-10-3,0RCPXXMA-S0072
R918C00074 AZPF-11-004RCN20MB
R918C00094 AZPF-12-004RCB20KB
R918C00106 AZPF-10-004RRR20MB
R918C00108 AZPF-10-004RQR20MB
R918C00123 AZPF-11-004RAB1MB
R918C00140 AZPF-11-004LSA20MB
R918C00143 AZPNN-11-032/032RDC0707KB-S0023
R918C00212 AZPGG-11-038/032RDC0707KB S0023
R918C00213 AZPF-10-005RRR20MB
R918C00217 AZPF-10-005RQR20MB
R918C00229 AZPF-11-005RRR20KB-S0023
R918C00237 AZPF-10-005LFB20MB
R918C00250 AZPF-11-005LRR20KB-S0023
R918C00355 AZMF-13-022RCB20PG220XX
R918C00356 AZPF-10-008RCB20MB
R918C00375 AZPF-10-008RQR20MB
R918C00421 AZPF-10-008LCB20MB
R918C00437 AZPF-10-010LRR12MB
R918C00503 AZPFFF-10-008/005/005RRR202020MB
R918C00690 AZPF-10-011RCB20MB
R918C00700 AZPF-10-014RCB20MB
R918C00704 AZPF-10-014RRR20MB
R918C00786 AZPF-11-011RRR20KB-S0023
R918C00787 AZPF-11-014RRR20KB-S0023
R918C00793 AZPF-11-011RAB1MB
R918C00804 AZPF-10-011LCB20MB
R918C00806 AZPF-10-011LFB20MB
R918C00826 AZPF-12-014LRR20MB
R918C00937 AZMF-13-019RCB20PG220XX
R918C01018 AZPFF-10-014/004RCB2020MB-S0014
R918C01105 AZPFF-11-014/014RRR2020KB-S0023
R918C01130 AZPG-22-028LDC07KB
R918C01395 AZPF-11-016LCP20KB-S0007
Frequently Asked Questions
Basic Parameters & Selection
Q: What is the displacement and pressure rating of this pump?
A: The geometric displacement is 11.0 cm³/rev. It has a maximum continuous working pressure of 250 bar, an intermittent pressure of 280 bar, and a peak pressure of 300 bar.
Q: What type of shaft does this model have?
A: This model (RQR) features a straight shaft with a keyway, which is different from the tapered shafts found in some other AZPF models (like RCB).
Q: What is the rotation direction?
A: Clockwise rotation when viewed from the shaft end.
Installation & Commissioning
Q: What are the critical installation requirements?
A:
  • Shaft Alignment: Use a flexible coupling. Radial runout should be < 0.1 mm, angular error < 1 degree. Rigid connections cause bearing failure.
  • Suction Conditions: Inlet absolute pressure must be ≥ 0.7 bar to prevent cavitation. Use a flooded suction or boost pump for high-speed operation.
  • Priming: Never run the pump dry. Fill the housing with clean oil before the first start.
Q: How should the case drain port be connected?
A: The drain line must connect directly to the tank (no valves/filters), below the fluid level but above the pump centerline. Backpressure must not exceed 1 bar.
Operation & Troubleshooting
Q: The pump is very noisy. What is the cause?
A: Noise is usually cavitation (whining) or aeration (crackling).
  • Cavitation: Check for clogged inlet filters, high oil viscosity, or low oil level.
  • Aeration: Check for air leaks in the suction line.
  • Mechanical Noise: Check for shaft misalignment or worn bearings.
Q: How do I calculate the actual flow output?
A: Theoretical flow = 11.0 (cm³/rev) × Speed (rpm) / 1000. Actual flow will be 5-10% lower due to internal leakage. A drop of more than 15% indicates significant wear.
Q: The pressure does not reach the rated value. What is wrong?
A: Common causes include:
  1. Internal Wear: Increased clearance between gears and side plates.
  2. System Leakage: Check relief valves and actuators.
  3. Low Motor Speed or incorrect system settings.
Maintenance
Q: What type of oil and cleanliness are required?
A: Use ISO VG 32/46/68 mineral-based oils (HL, HLP). The oil cleanliness must be NAS Class 9 or cleaner (ISO 4406 18/16/13) for long bearing life.
Q: Can I repair this pump myself?
A: Not recommended for critical applications. While seals can be replaced, rebuilding the precision sliding bearings and pressure-compensated side plates requires special tools and testing. An exchange unit is often safer.
Q: What is the expected service life?
A: Under correct conditions (clean oil, proper viscosity, rated load), the B10 life can reach several thousand hours. Oil contamination is the primary cause of premature failure.
Disclaimer: This data is based on standard Rexroth AZPF series documentation. Always refer to the official datasheet (RE 10 250) for your specific application and safety guidelines.
