R902418820 A4VSO40DR/10R-PPB13N00 German Rexroth variable displacement piston pump

R902418820 A4VSO40DR/10R-PPB13N00 German Rexroth variable displacement piston pump
R902418820 A4VSO40DR/10R-PPB13N00 German Rexroth variable displacement piston pump

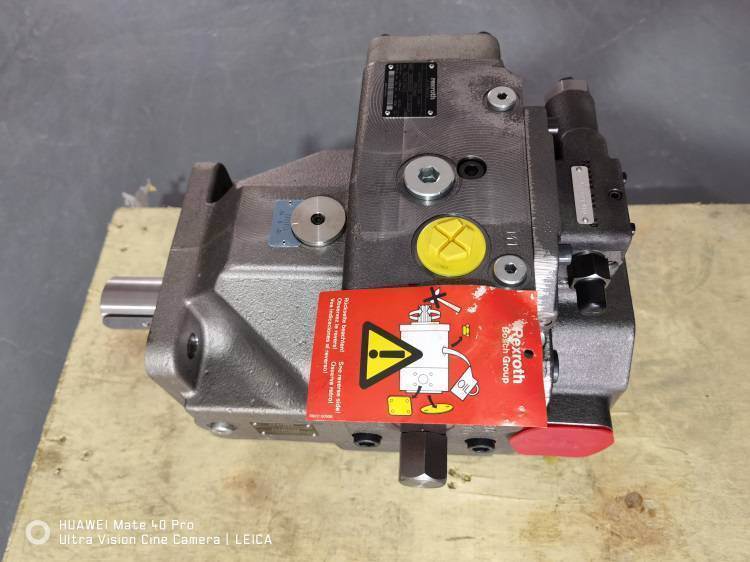

Large Image :  R902418820 A4VSO40DR/10R-PPB13N00 German Rexroth variable displacement piston pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: R902418820 A4VSO40DR/10R-PPB13N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R902418820 A4VSO40DR/10R-PPB13N00 German Rexroth variable displacement piston pump

Description
Weight: 39 Kg Hydraulic Fluid​: Mineral Oils (HL, HLP), Water Glycol (HFC)
Mounting Flange​: ISO 3019-2 (4-bolt, Metric) Rotation Direction​: Clockwise (R)​ (viewed From Shaft End)
Nominal Speed​: 1500 Rpm​
Highlight:

Rexroth variable displacement piston pump

,

A4VSO40DR piston pump with warranty

,

German Rexroth hydraulic piston pump

R902418820 A4VSO40DR/10R-PPB13N00 German Rexroth Variable Displacement Piston Pump
Product Overview

The A4VSO40DR/10R-PPB13N00 is a high-performance variable displacement axial piston pump from Rexroth, designed for demanding industrial applications requiring reliable hydraulic power and precise pressure control.

Technical Specifications
Parameter Category Parameter Specification / Description
General Information Manufacturer / Model Rexroth, Type A4VSO Series 10
Part Number R902418820
Pump Type Variable Displacement Axial Piston Pump (Swashplate Design)
Circuit Type Open Circuit
Hydraulic Performance Nominal Displacement 40 cm³/rev
Nominal Pressure (Continuous) 280 bar (Standard), 350 bar (DR Control Rated)
Peak Pressure (Intermittent) 400 bar
Nominal Speed 1500 rpm (Max ~2600 rpm, dependent on suction conditions)
Max Flow @ 1500 rpm ~60 L/min
Control Type DR - Pressure Control (Pressure Compensator)
Mechanical Interface Shaft Type Standard Splined Shaft (Series 10)
Rotation Direction Clockwise (R) (viewed from shaft end)
Mounting Flange ISO 3019-2 (4-bolt, metric)
Port Configuration PPB13: SAE flanged ports, metric screws, 13 series port plate
Through Drive N00: No through-drive capability
Sealing & Media Seal Material NBR (Standard for mineral oil)
Hydraulic Fluid Mineral oils (HL, HLP), water glycol (HFC)
Weight Approx. 39 kg
Rexroth A4VSO series variable displacement piston pump
Related Models
A4VSO40DP/10R-PPB13N00
A4VSO250LR2/30R-PZB13K34
A4VSO250LR2Z/30R-PPB13N00
A4VSO250DRG/30R-PPB13K04
A4VSO500LR2/30R-PPH13N00
A4VSO250HSE/30R-PPB13N00
A4VSO250DR/30R-PPB13K26
A4VSO71EM1018/10R-PPB13N00
A4VSO71LR2/10R-PPB13K06
A4VSO40EO1/10R-PPB25K01
A4VSO250EO1/30R-PPB13N00
A4VSO40DR/10R-PZB13N00
A4VSO250LR2DN/30R-PZB13N00
A4VSO250LR2DN/30R-PPB13K35
A4VSO40LR2D/10R-PZB13N00
A4VSO250LR2DN/30R-PPB13K31
A4VSO250DS1E/30W-PZB13T100N
A4VSO250LR3D/30R-PZB13K99
A4VSO500HS/30R-PPH13N00
A4VSO71DR/10R-PPB13K01
A4VSO250HD1P/30R-PPB13N00
A4VSO500HSE/30L-PPH13N00
A4VSO500HSE/30R-PPH13N00
A4VSO250LR2D/30R-PPB13K27
A4VSO250EM1035/30R-PPB13N00
A4VSO40DRG/10R-PPB13K01
A4VSO250HD1B/30R-VZB13N00
A4VSO180EM1035/30R-PPB13N00
A4VSO250HD1GBT/30R-PPB13N00
A4VSO71HSE/10R-PPB13K33
A4VSO71HSE/10R-PZB13N00
A4VSO250EO2/30R-PPB13K35
A4VSO250EO2/30R-PZB13N00
A4VSO71DFR/10R-PZB13K27
A4VSO250EO1/30R-PPB13K51
A4VSO500HS/30L-PPH13N00
A4VSO40EM2007/10R-PPB13N00
A4VSO71DS1/10W-PPB13T041N
A4VSO180DFR/30R-PPB13K33
A4VSO250LR2/30R-PPB13K04
A4VSO71LR2N/10R-PPB13KB2
A4VSO71LR2S/10R-PPB13N00
A4VSO250DRG/30R-PZB13N00
A4VSO125DR/30R-PZB13N00
A4VSO250DP/30L-PPB13N00
A4VSO40LR2/10L-PPB13K01
A4VSO250DRG/30R-PPB13K51
A4VSO250EO2/30R-PPB25K99
A4VSO500LR2N/30R-PPH13N00
A4VSO250LR2GN/30R-PPB13N00
A4VSO250LR2N/30R-PPB13K33
A4VSO125DRG/30R-PPB13K33
A4VSO71LR3G/10R-PPB13K27
A4VSO71HSE/10R-PZB13K99
A4VSO250EO1/30R-VPB13K01
A4VSO250LR2F/30R-PPB13N00
A4VSO250HD1/30R-PPB13K35
A4VSO71DR/10R-PZB13K33
A4VSO250HSE/30R-PZB13K35
A4VSO250HSE/30R-PZB13K99
A4VSO71DR/10R-PZB13K99
A4VSO71DR/10R-VPB13N00
A4VSO71DRG/10R-PPB13K33
A4VSO40LR2D/10R-PPB13K57
A4VSO250DRG/30R-PPB13K33
A4VSO71DR/10R-VZB13N00
A4VSO71DFR/10R-PZB13N00
A4VSO71DRG/10R-PPB13K27
A4VSO71DRG/10R-PPB13K26
A4VSO250LR3H/30R-PPB13N00
A4VSO71EM3035/10R-PPB13N00
A4VSO40LR2S/10R-PPB13N00
A4VSO500MA/30R-PPH13N00
A4VSO71DR/10R-PZB13K31
A4VSO71LR2/10R-PPB13K33
A4VSO250LR3N/30R-PZB13K99
A4VSO40DP/10R-PZB13N00
A4VSO71DRG/10R-PPB13K99
A4VSO250HSE/30R-PZB13K34
A4VSO71DRG/10R-PPB13K24
A4VSO125EO1/30R-PPB13N00
A4VSO71DRG/10R-PPB13K04
A4VSO40EM1039/10R-PPB13N00
Frequently Asked Questions
What is the main application difference between A4VSO and A10VSO?
A4VSO is a heavy-duty industrial pump designed for 350 bar continuous pressure (vs. A10VSO's typical 280 bar). It features a robust bearing design for high radial loads and is commonly used in metal forming, injection molding, and heavy machinery where high pressure and reliability are critical.
How does the DR control work on this pump?
The DR control is a pressure compensator. Below the set pressure, the pump delivers maximum flow (40 cm³/rev). When system pressure reaches the set point (adjusted via the control cover screw), the swashplate automatically de-strokes to maintain constant pressure, delivering only the flow needed to compensate for leaks. This saves energy compared to a fixed pump with a relief valve.
What is the recommended drive motor power?
At 1500 rpm and 350 bar, the pump requires approximately 35 kW of mechanical input power. It is recommended to use a 37 kW (50 HP) electric motor for safe continuous operation. Always check the torque requirements at your specific operating pressure.
Can I add a gear pump to the through-drive?
No. This specific variant has the code N00, which means no through-drive. The shaft does not protrude from the rear housing to drive an auxiliary pump. If you need a multi-pump configuration (e.g., for a charge pump), you must select a version with a through-drive code (e.g., K01, K02, etc.).
What are the critical suction conditions?
The A4VSO requires good inlet conditions. At 1500 rpm, the inlet pressure should be ≥ 0.8 bar absolute (≈ -0.2 bar gauge) to avoid cavitation. For higher speeds (up to 2600 rpm), a pressurized inlet or a boost pump is mandatory. The optimal viscosity range is 16-160 mm²/s.
