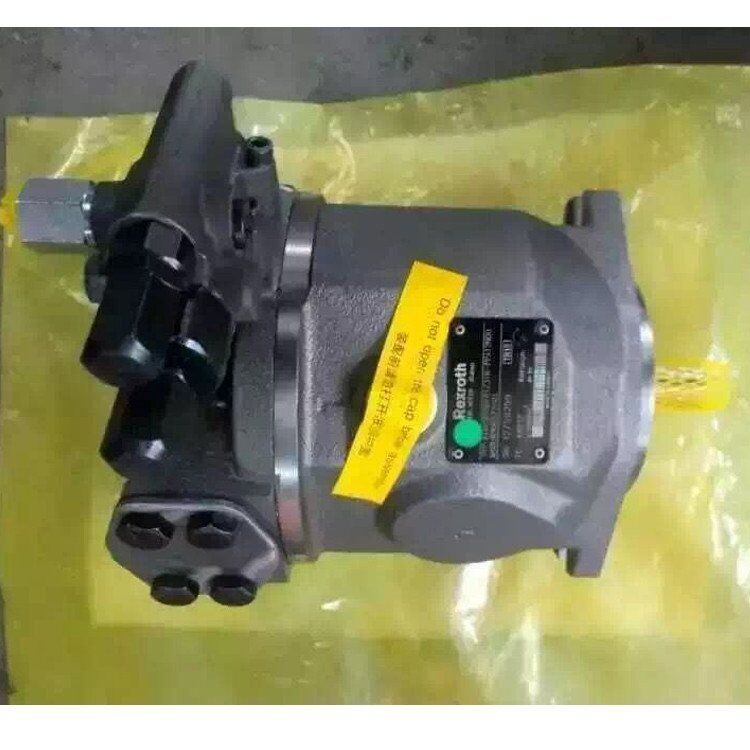

R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth hydraulic piston pump

I'm Online Chat Now

R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth hydraulic piston pump

R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth hydraulic piston pump
R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth hydraulic piston pump

Large Image :  R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth hydraulic piston pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: R910920969 AA10VS0100DFR/31R-VPA12N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100

R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth hydraulic piston pump

Description
Rotation Direction​: Right-hand (R)​ (viewed From Shaft End) Shaft Type​: Splined Shaft​ (SAE Standard)
Port Connection​: VPA12N Mounting Flange​: ISO 3019-2​
Weight: 45 – 50 Kg
Highlight:

Rexroth hydraulic piston pump

,

German Rexroth piston pump

,

AA10VS0100DFR piston pump

R910920969 AA10VS0100DFR/31R-VPA12N00 German Rexroth Hydraulic Piston Pump
Technical Specifications
Parameter Specification
Order Number R910920969
Model AA10VSO100DFR/31R-VPA12N00
Type Variable displacement axial piston pump (swashplate design, open circuit)
Nominal Displacement 100 cm³/rev
Control Type DFR (Pressure Cut-off + Flow Control / Load Sensing)
Pressure Rating 280 bar (Continuous)
350 bar (Peak, intermittent)
Speed Range 1500 - 1800 rpm (Recommended)
Max. speed 2000 - 2400 rpm (limited by inlet conditions)
Rotation Direction Right-hand (R) (viewed from shaft end)
Shaft Type Splined shaft (SAE standard)
Port Connection VPA12N (SAE flange, side ports, no through-drive)
Mounting Flange ISO 3019-2 (Series 31)
Seal Material NBR (Standard for mineral oil)
Suitable Media Mineral oils (HL, HLP), HLP-D, HVLP
Media Temperature -20 °C to +80°C (Start-up viscosity < 1000 mm²/s)
Recommended Viscosity 16 - 68 mm²/s (ISO VG 32-68)
Cleanliness Requirement ISO 4406 20/18/15 or better
Weight Approx. 45 - 50 kg
Rexroth AA10VSO hydraulic piston pump technical diagram
Frequently Asked Questions
What is DFR control, and how does it work?

DFR is a combined pressure-flow control with load sensing (LS).

  • Pressure Control: Limits system pressure to a set maximum (like a relief valve).
  • Flow Control (LS): The pump automatically adjusts its swashplate angle to deliver only the flow required by the actuators, maintaining a constant pressure differential (Δp) across the control orifice. This results in significant energy savings compared to constant flow pumps.
Can I mount an additional pump on the back?

No. The code N00 in VPA12N00 explicitly indicates no through-drive. The shaft does not extend through the rear cover, so you cannot mount a second pump (gear or piston) on the back of this unit. If you need a tandem pump configuration, you must order a variant with a through-drive code (e.g., ending in K...).

What are the critical installation precautions?
  • Case Drain (L ports): This pump has two case drain ports. They must be connected separately to tank with minimal backpressure (max 2-3 bar). Do not tee them into the main return line. This is critical for flushing heat and preventing seal/bearing failure.
  • Suction Conditions: Ensure inlet pressure at port S is ≥ -0.8 bar (absolute) to avoid cavitation. Use short, large-diameter suction lines.
  • Rotation: Confirm motor rotation matches the pump's "R" (clockwise) designation. Running backwards can destroy the pump.
Why is my pump noisy or overheating?
  • Noise: Usually caused by cavitation. Check suction filter, inlet line for leaks, or oil viscosity being too high at startup.
  • Overheating: Often due to excessive case pressure (blocked or undersized case drain line) or operating for long periods at high pressure with small displacement (high power loss).
How do I adjust the pressure and flow settings?

The DFR control has two adjustment screws (usually under caps on the control housing):

  1. Pressure Limiter: Sets the maximum system pressure (clockwise to increase).
  2. Flow Controller (LS Δp): Sets the pressure differential for load sensing (typically set to 10-20 bar).

Always adjust under controlled conditions with a pressure gauge.

Is an external relief valve still needed?

Yes. While the DFR control limits pressure, it is not a safety valve. You must install a separate system relief valve (e.g., a DB/DBW type) in the main line as a safety backup against control failure.

What is the difference between DFR and DRS?
  • DFR: Typically used in industrial applications with explicit pressure/flow control.
  • DRS: Often used in mobile applications with a stronger emphasis on load sensing. The functional principle is very similar, but the control response and internal pilot circuitry may differ.
Disclaimer: For precise installation and commissioning, always refer to the official Rexroth technical data sheet RE 25700 for A10VSO Series 31 pumps.
