R902193366 A2FO10/61R-PBB06 German Rexroth piston pump

R902193366 A2FO10/61R-PBB06 German Rexroth piston pump
R902193366 A2FO10/61R-PBB06 German Rexroth piston pump

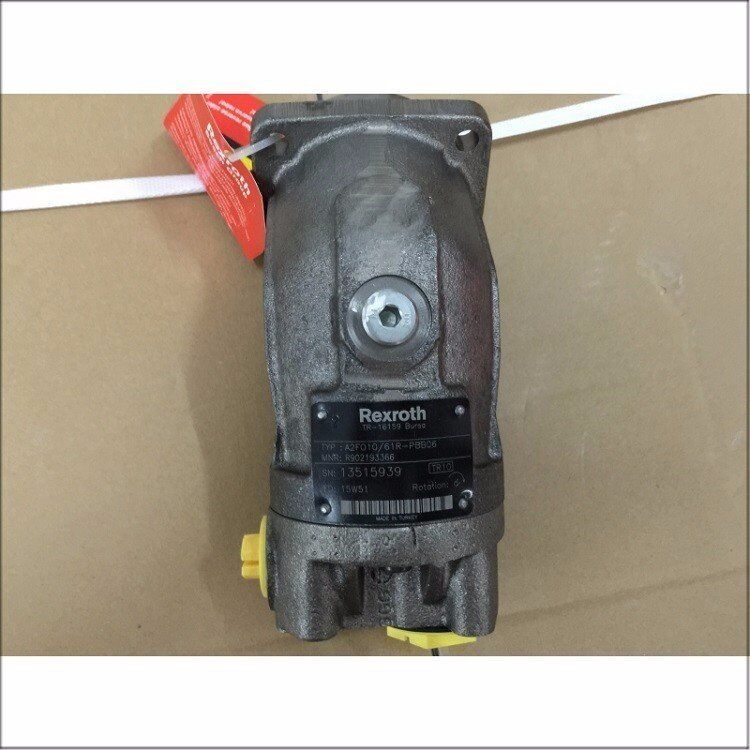

Large Image :  R902193366 A2FO10/61R-PBB06 German Rexroth piston pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: R902193366 A2FO10/61R-PBB06
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R902193366 A2FO10/61R-PBB06 German Rexroth piston pump

Description
Hydraulic Fluid​: Mineral Oil (HL, HLP), HETG, HEES, HFDU Case Drain (L Port)​: Max. 2 Bar Abs (Must Be Drained To Tank Separately)
Min. Inlet Pressure (pS Min)​: 0.8 Bar Abs (dependent On Speed & Viscosity) Max. Speed (nmax)​: 3150 Rpm
Mounting Flange​: SAE 2-bolt (Code B)
Highlight:

Rexroth A2FO10 piston pump

,

German Rexroth hydraulic pump

,

R902193366 piston pump with warranty

R902193366 A2FO10/61R-PBB06 German Rexroth Piston Pump
Product Overview

The A2FO10/61R-PBB06 is a high-performance bent-axis fixed displacement axial piston pump manufactured by Rexroth. Designed for open circuit hydraulic systems, this German-engineered pump delivers reliable performance in demanding industrial applications.

Technical Specifications
Manufacturer / Series Rexroth A2FO Series 6x
Order Code R902193366
Full Model A2FO10/61R-PBB06
Pump Type Bent-Axis Fixed Displacement Axial Piston Pump
Primary Function Converts mechanical power into hydraulic power for open circuit systems
Displacement 10 cm³/rev
Nominal Pressure 400 bar
Peak Pressure 450 bar
Nominal Size 10
Rotation Direction Right-hand rotation (viewed from shaft end)
Shaft Type Splined shaft (Standard DIN 5480)
Ports S (Suction), B (Pressure), L (Case Drain)
Port Size Code 06 (Metric threads)
Mounting Flange SAE 2-bolt (Code B)
Max. Speed (n max) 3150 rpm
Min. Inlet Pressure (p S min) 0.8 bar abs (dependent on speed & viscosity)
Case Drain (L Port) Max. 2 bar abs (Must be drained to tank separately)
Hydraulic Fluid Mineral oil (HL, HLP), HETG, HEES, HFDU
Operating Temperature -20°C to +80°C
Weight Approx. 32 kg
Country of Origin Germany
Product Image
Rexroth A2FO Series bent-axis piston pump technical diagram
Related Model Variants
A2FO5/61R-PBB06 A2FO5/61L-PBB06
A2FO5/61R-PPB06 A2FO5/61L-PPB06
A2FO5/61R-PZB06 A2FO5/61L-PZB06
A2FO5/61R-VPB06 A2FO5/61L-VPB06
A2FO12/61R-PBB06 A2FO12/61L-PBB06
A2FO12/61R-PAB06 A2FO12/61L-PAB06
A2FO12/61R-PPB06 A2FO12/61L-PPB06
A2FO12/61R-PZB06 A2FO12/61L-PZB06
A2FO16/61R-PAB06 A2FO16/61L-PAB06
A2FO23/61R-PBB05 A2FO23/61L-PBB05
A2FO23/61R-PAB05 A2FO23/61L-PAB05
A2FO23/61R-PPB05 A2FO23/61L-PPB05
A2FO23/61R-PZB05 A2FO23/61L-PZB05
A2FO23/61R-VPB05 A2FO23/61L-VPB05
A2FO28/61R-PBB05 A2FO28/61L-PBB05
A2FO28/61R-PAB05 A2FO28/61L-PAB05
A2FO28/61R-PPB05 A2FO28/61L-PPB05
A2FO28/61R-PZB05 A2FO28/61L-PZB05
A2FO32/61R-PBB05 A2FO32/61L-PBB05
A2FO32/61R-PAB05 A2FO32/61L-PAB05
A2FO32/61R-VAB05 A2FO32/61L-VAB05
A2FO45/61R-PPB05 A2FO45/61L-PPB05
A2FO45/61R-PZB05 A2FO45/61L-PZB05
A2FO56/61R-PBB05 A2FO56/61L-PBB05
A2FO56/61R-PAB05 A2FO56/61L-PAB05
A2FO56/61R-PPB05 A2FO56/61L-PPB05
A2FO56/61R-PZB05 A2FO56/61L-PZB05
A2FO56/61R-VPB05 A2FO56/61L-VPB05
A2FO56/61R-VAB05 A2FO56/61L-VAB05
A2FO63/61R-PBB05 A2FO63/61L-PBB05
A2FO63/61R-PAB05 A2FO63/61L-PAB05
A2FO63/61R-VAB05 A2FO63/61L-VAB05
A2FO80/61R-PBB05 A2FO80/61L-PBB05
A2FO80/61R-PAB05 A2FO80/61L-PAB05
A2FO80/61R-PPB05 A2FO80/61L-PPB05
A2FO80/61R-PZB05 A2FO80/61L-PZB05
A2FO80/61R-VPB05 A2FO80/61L-VPB05
Frequently Asked Questions
Is this a variable or fixed displacement pump?
This is a fixed displacement pump. The output flow is determined solely by the drive speed and the fixed 10 cm³/rev displacement. It cannot vary its displacement like a A2FE or A10VSO variable pump.
What does the "61R-PBB06" suffix mean?
This code defines the configuration:
  • 6: Series 6
  • 1R: Right-hand rotation (viewed from shaft end)
  • P: Standard seals (NBR for mineral oil)
  • BB: Port configuration (S and B ports on same side, SAE flange)
  • 06: Port size code 06 (metric threads)
What is the maximum system pressure I can run?
The pump is rated for a continuous nominal pressure of 400 bar. It can handle short-term peak pressures up to 450 bar, but the total duration of peak pressure operation should not exceed the design limits for bearing life.
Does this pump require a case drain line?
Yes. The "L" port is a case drain and must be connected directly to the tank with minimal backpressure (max 2 bar). This is critical to prevent shaft seal failure by relieving internal case pressure from internal leakage.
Can I use this pump in a closed-loop hydrostatic transmission?
No. The A2FO is designed for open circuits (pump → valve → actuator → tank). For closed-loop applications (where the pump outlet is directly connected to a motor inlet), you would need an A2FM series motor or a dedicated closed-loop pump like an A4VG.
