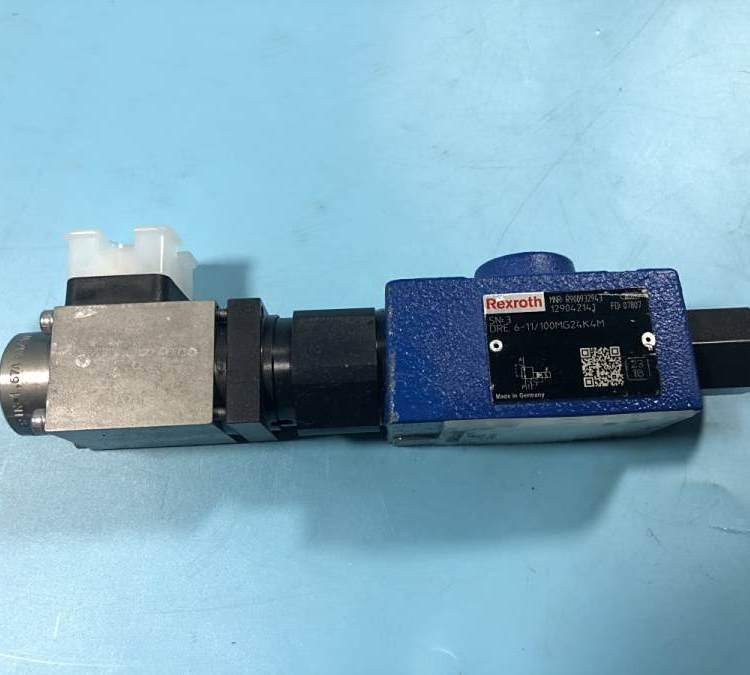

R900932943 DRE6-1X/100MG24K4M Rexroth proportional pressure reducing valve

FAQ:

1. Requires External Amplifier

   Unlike the DBEME/DBETE valves with integrated electronics (OBE), the DRE6​ series typically requires an external proportional amplifier​ (e.g., Rexroth VT-5000 series). The valve's coil is driven by the amplifier, which accepts the command signal (0–10 V or 4–20 mA). The "M"​ in the code indicates a standard proportional solenoid coil.

2. 3-Way Function (P, A, T)

   This valve has three working ports: P​ (inlet), A​ (reduced pressure outlet), and T​ (tank). It continuously compares the A-port pressure with the electrical setpoint. If A-port pressure is too high, it opens a path to T to bleed off excess pressure and maintain the set value.

3. Pressure Reduction Rating (100 bar)

   The "100"​ denotes the maximum electrically adjustable reduced pressure​ at port A. The inlet at port P can be up to 315 bar, but the valve will regulate port A to a maximum of 100 bar. For higher reduced pressures (e.g., 210 bar), a different variant (e.g., DRE6-1X/210...) would be used.

4. Pilot-Operated Design

   This is a pilot-operated valve, not a direct-operated poppet. It uses a small pilot flow (approx. 0.65 L/min) for control, which allows for higher main flow capacity (30 L/min) and faster response compared to direct-operated valves.

5. Critical Installation Notes

   • External Amplifier Needed:​ You must use an external amplifier card to drive the valve. The K4 connector on the valve only carries coil power from the amplifier.

   • Tank Line Backpressure:​ Port T must be connected directly to tank with minimal backpressure. High backpressure at T will be added to the A-port pressure, causing inaccurate regulation.

   • Pilot Flow:​ Ensure your system can supply the small pilot flow required for the valve's internal operation.
