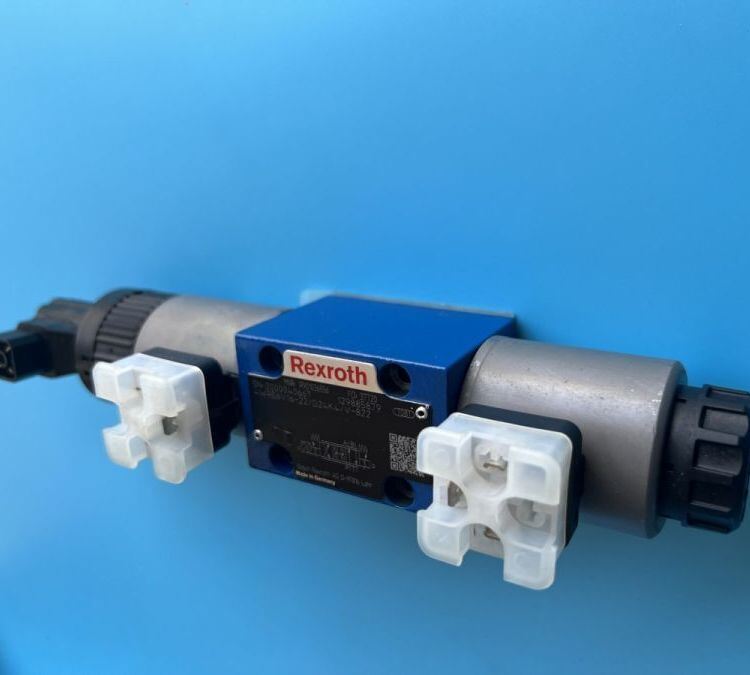

R901496443 4WREE6E16-3X/V/24F1 Hydraulic valve Rexroth proportional valve

FAQs for Rexroth 4WREE6E16-3X/V/24F1

1. Q: What is the key difference between /24F1 and /24A1?

   A:​ The suffix /24F1​ specifies a 4–20 mA current input​ control signal, while /24A1 specifies a ±10V voltage input. This valve is designed for PLC systems that output standard 4–20 mA analog signals. The internal OBE electronics are configured accordingly; do not apply a voltage signal to an F1 variant.

2. Q: Does the 4–20 mA signal correspond to the full spool stroke?

   A:​ Typically, yes. The standard mapping is 4 mA = full spool stroke in one direction​ (e.g., P→A), 12 mA = center position, and 20 mA = full spool stroke in the opposite direction​ (P→B). This provides a fail-safe feature: if the signal is lost (0 mA), the valve will typically return to a defined safe state (often center).

3. Q: Can I use this valve in a system designed for 315 bar pumps?

   A:​ Yes, it is safe and standard.​ The valve's maximum operating pressure is 350 bar, which provides a safety margin when used with 315 bar system components. Always ensure the T (tank) port pressure does not exceed 210 bar.

4. Q: Why is the drain port (Y) mandatory, and how should it be piped?

   A:​ The drain port (Y) is critical for two reasons: 1) It drains internal leakage oil from the solenoid cavities. 2) It provides a reference pressure for the LVDT position sensor. This port must be connected directly to the tank with a dedicated, non-pressurized line.​ A blocked or pressurized drain line can cause valve malfunction or damage.

5. Q: Is the "E" spool suitable for closed-loop servo applications?

   A:​ Yes.​ The "E" spool is a zero-overlap (critical center) spool​ with a linear characteristic, providing high resolution and repeatability. It is an excellent choice for precise position or speed control in closed-loop systems when paired with the internal LVDT feedback.

6. Q: What does the "3X" series indicate?

   A:​ "3X" denotes the component series​ (30-39). This means the valve has standardized installation dimensions (ISO 4401-03). You can directly replace it with any other NG6 "3X" series valve (e.g., 4WREE6...-3X) without modifying the manifold or subplate.
