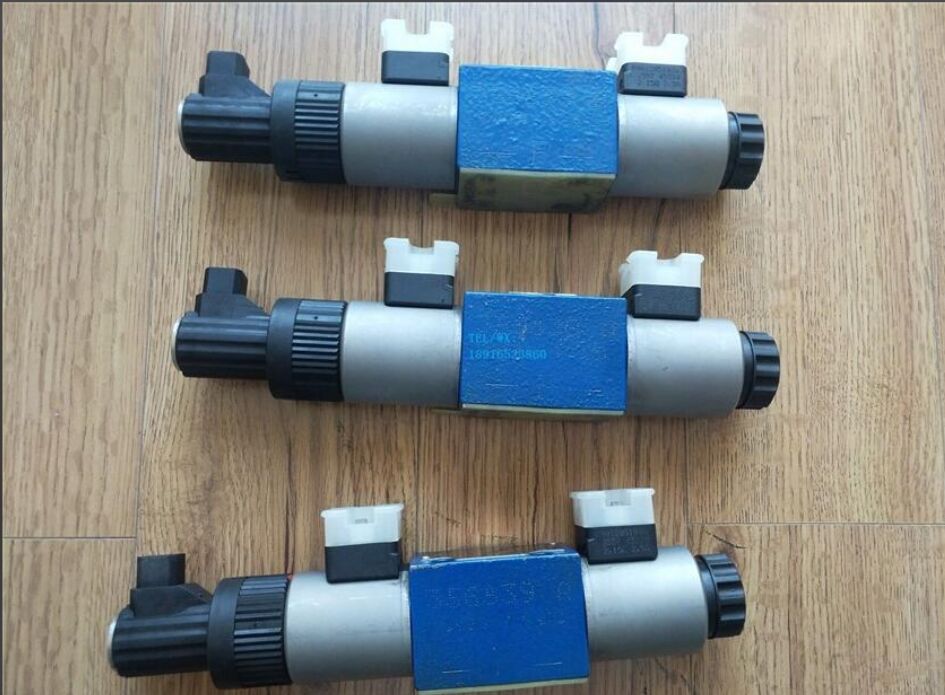

R900913443 4WRA6W15-2X/G24N9K4/V Rexroth hydraulic valve proportional valve

FAQs for Rexroth 4WRA6W15-2X/G24N9K4/V Proportional Directional Valve

1. Q: What is the main advantage of a proportional valve with position feedback (LVDT)?

   A:​ The integrated Linear Variable Differential Transformer (LVDT)​ provides closed-loop spool position control. It constantly measures the exact position of the spool and sends this signal back to the valve's on-board electronics (OBE). The OBE compares this actual position to the command signal and adjusts the solenoid current to correct any error. This results in extremely precise, repeatable, and stable control​ of flow and speed, with minimal hysteresis and drift, regardless of changes in oil temperature, viscosity, or system pressure.

2. Q: The valve has "On-Board Electronics" (OBE). What does this mean for wiring and control?

   A:​ The OBE is a small amplifier and controller integrated into the valve's solenoid housing. This means: 1) Simplified Wiring:​ You typically connect a single multi-pin cable that carries both power (24V DC) and the command signal (e.g., ±10V). 2) Easier Integration:​ The valve can be directly interfaced with a standard motion controller or PLC analog output card. 3) Protected Electronics:​ The OBE is designed for the industrial environment. The external controller only needs to provide a low-power command signal; the OBE handles the high current needed for the solenoid.

3. Q: How is the flow controlled? If I give it a 5V signal, what happens?

   A:​ Flow is controlled proportionally and bidirectionally​ by the spool position. A typical setup is: 0V command = spool centered = zero flow.​ A +5V command​ might move the spool fully in one direction, connecting P to A and B to T, allowing maximum flow to extend a cylinder. A -5V command​ would move the spool fully the opposite way, retracting the cylinder. A +2.5V command​ would move the spool halfway, resulting in approximately 50% of maximum flow. The exact relationship is defined by the valve's characteristic curve.

4. Q: What is the significance of the "W" spool type?

   A:​ The "W" designation indicates a zero-lap (critical center) proportional spool. This means there is virtually no overlap between the spool lands and the valve body sleeves. This provides: 1) High Resolution:​ Allows for very fine control at low flows. 2) Quick Response:​ The cylinder starts moving immediately with a small command signal. 3) No Deadband:​ There is no "dead zone" in the center where a command signal produces no flow. "W" spools are used for precise, high-performance motion control applications.

5. Q: This valve is rated for 15 L/min. How do I determine if it's the right size for my actuator?

   A:​ The 15 L/min rating is typically at a 10 bar pressure drop (Δp)​ across the valve. You must calculate the maximum required flow​ for your cylinder or motor at its desired speed. Then, use the valve's flow vs. pressure drop (Δp) characteristic curve​ from the datasheet. Find your required flow on the curve and check the corresponding Δp. Ensure this Δp, added to other system losses, is acceptable and doesn't require excessive pump pressure. Oversizing​ a proportional valve can make low-speed control difficult; undersizing​ causes high pressure drops, heat, and limited speed.
