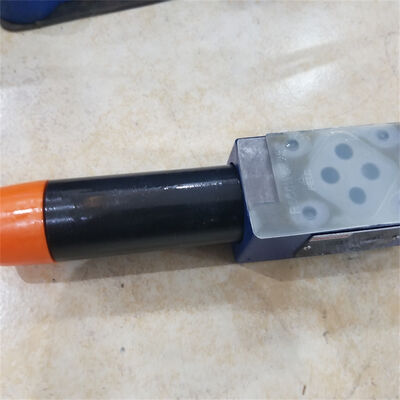

R900410884 ZDR10DA2-5X/150Y Overflow valve German Rexroth direct acting type

FAQs for Rexroth ZDR10DA2-5X/150Y Pressure Reducing Valve

1. Q: This valve has a 10mm nominal size. How is that different from the 6mm models?

   A:​ The nominal size (10mm)​ indicates a larger internal flow path. The primary advantage is a significantly higher flow capacity​ (up to ~60 L/min versus ~20 L/min for a 6mm valve) for the same pressure drop. This makes it suitable for reducing pressure in larger hydraulic circuits that supply more power, such as for a high-flow tool circuit or a larger auxiliary system. The physical port threads (7/8"-14 UNF) are also larger.

2. Q: How do I adjust the pressure setting, and is there a locking mechanism?

   A:​ The pressure is set by turning the external adjustment screw. Typically, clockwise increases pressure, counter-clockwise decreases it. After achieving the desired pressure (measured with a gauge at the A port under flow), the integrated lock nut must be securely tightened​ to prevent the setting from drifting due to vibration. It is a mechanical, manual adjustment.

3. Q: The downstream equipment (at A port) is experiencing pressure surges. Can this valve help?

   A: Yes, indirectly.​ While not its primary function, the valve can help dampen upstream pressure spikes by maintaining a constant, lower secondary pressure. More importantly, its integral over-pressure relief function​ (A to T) provides critical protection: if a downstream force (like a load on a cylinder) causes pressure to exceed the set point, the valve opens to tank, preventing potentially damaging pressure spikes in the secondary circuit.

4. Q: What is the meaning of the "DA2-5X" code in the model number?

   A:​ This is Rexroth's internal design variant code. The "DA2" specifies the valve's particular performance characteristic curve (the relationship between the spool position, flow, and pressure). The "5X" suffix provides further detail on construction features, such as specific damping, adjustment mechanism, or seal configuration. For exact performance data, the technical datasheet for this specific variant must be consulted.

5. Q: The valve feels hot to the touch during operation. Is this normal?

   A:​ It can be normal, as direct-acting reducing valves are inherently energy-inefficient​ when regulating. The constant internal leakage (P to T) represents wasted pump energy that is converted directly into heat. The higher the pressure drop (difference between P and A) and the higher the bypass flow, the more heat is generated. For systems requiring continuous pressure reduction with high flow, a more efficient solution (like a pump with pressure compensation or a pilot-operated valve) should be considered to manage heat generation.
