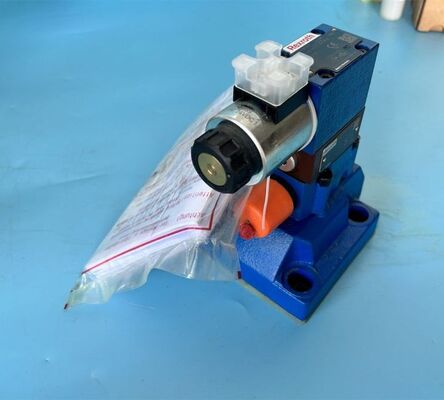

R900906285 DBW10B2-5X/315-6EG24N9K4 German original electromagnetic overflow valve directional valve Rexroth

FAQs for Rexroth DBW10B2-5X/315-6EG24N9K4 Solenoid Relief Valve

1. Q: This is a proportional valve. How do I actually set the pressure to a specific value, like 250 bar?

   A:​ The pressure is set electronically, not manually. You must send a corresponding analog command signal (e.g., 0-10V) to the valve's dedicated proportional amplifier. The amplifier is configured so that the maximum signal (e.g., 10V) corresponds to 315 bar. To achieve 250 bar, you would calculate the required input voltage: (250 bar / 315 bar) * 10V ≈ 7.94V. Your controller (PLC) would then output this 7.94V signal to the amplifier.

2. Q: What is the practical meaning of the "B2" performance curve?

   A:​ The "B2" curve is a specific factory-calibrated characteristic that defines the exact relationship between the electrical input signal to the solenoid and the resulting hydraulic output pressure. It determines parameters like linearity, gradient, and minimum controllable pressure. You must select the "B1" or "B2" (or other) variant that matches the control behavior required by your machine's program. Using the wrong variant can lead to incorrect pressure or poor control stability.

3. Q: Is this valve suitable for dynamic, rapidly changing pressure control?

   A:​ This valve is designed for proportional pressure regulation, not ultra-high-frequency servovalve control. It is suitable for applications where the pressure setpoint changes at a moderate rate, such as between different stages of a machine cycle. For extremely fast pressure oscillations or high-frequency closed-loop pressure control, a specialized servo-proportional valve would be more appropriate.

4. Q: The valve seems slow to respond to a new pressure command. What factors affect its response time?

   A:​ The response time of a proportional relief valve is influenced by several factors: 1) Amplifier Settings:​ Ramp times, dither frequency, and gain settings in the amplifier. 2) System Conditions:​ Pilot pressure supply, the presence of air in the oil, and the load's reaction. 3) Valve Setup:​ Any mechanical preload or the setting of optional damping screws. 4) Command Signal:​ A very rapid change in the input signal may exceed the valve's designed slew rate. Adjusting the amplifier's ramp-up/down times is the first step to tune the response.

5. Q: What specific care is needed for the valve's external drain line (Y port)?

   A:​ The drain line is critical for pilot-operated valves. It must be connected directly to the tank​ with the shortest, largest diameter hose possible, and with absolutely zero backpressure. Any restriction or pressure in this line will prevent the pilot stage from functioning correctly, causing erratic pressure control, inability to reach high pressures, or even valve failure. Never tee this line into another return line under pressure.
