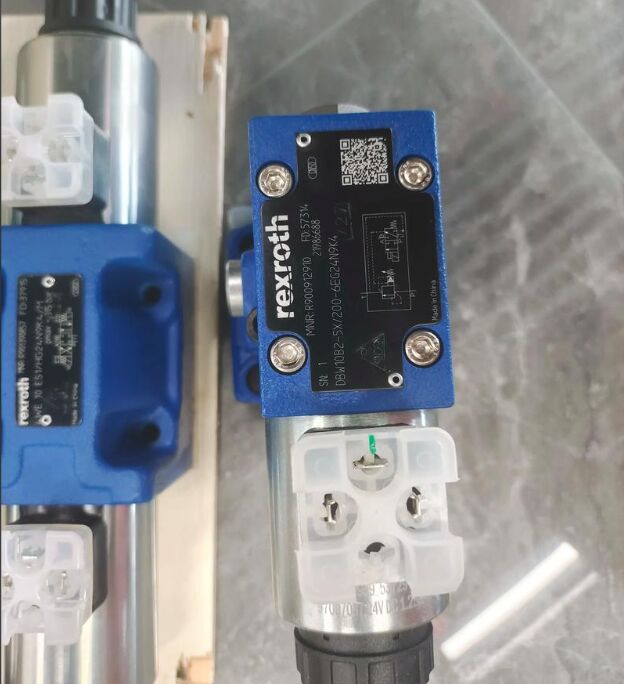

R900923103 DBW10B1-5X/200-6EG24N9K4 German Rexroth electromagnetic overflow valve

FAQs for Rexroth DBW10B1-5X/200-6EG24N9K4 Solenoid Relief Valve

1. Q: This valve is described as "proportional." How is it controlled?

   A:​ This is an electrically controlled, pilot-operated proportional relief valve. Its set pressure is not adjusted manually with a screw, but electronically via an analog input signal (typically 0-10V or 4-20mA) from a programmable logic controller (PLC) or a dedicated amplifier card. The solenoid's force, and thus the relief pressure, changes proportionally to the input current.

2. Q: Do I need additional equipment to operate this valve?

   A:​ Yes. The valve's 6EG24N9K4 solenoid requires an external proportional amplifier card​ (e.g., a Rexroth VT-VSPA or similar) to function. The amplifier provides the correct current to the solenoid, interprets the input command signal, and can provide dither frequency to minimize hysteresis. The valve cannot be operated by applying 24V DC directly.

3. Q: What is the main advantage of a proportional relief valve over a standard manually-adjusted one?

   A:​ The key advantage is programmable, on-the-fly pressure control. It allows a system's maximum pressure to be varied automatically during a machine cycle. This enables functions like pressure profiling, different clamping forces, or energy savings by lowering the system pressure when full power is not needed. A manual valve has a single, fixed set point.

4. Q: The model number includes "B1-5X." What do these codes mean?

   A:​ These are Rexroth's internal design variant codes. The letter/number combination (B1) defines a specific performance characteristic curve (relationship between input signal and output pressure). The suffix (5X) denotes details about the spool design, damping, and other internal features. For exact performance data, the official datasheet for this specific code must be consulted.

5. Q: The valve is not responding to the input signal. What should I check first?

   A:​ Follow this basic diagnostic sequence:

   1. Power:​ Verify 24V DC power to the amplifier card.

   2. Signal:​ Confirm the command signal (e.g., 0-10V) from the controller is present and correct at the amplifier's input terminals.

   3. Amplifier:​ Check the amplifier's output to the solenoid with a multimeter. Ensure the amplifier is configured correctly (e.g., min/max current settings).

   4. Valve:​ Check the solenoid coil resistance. Ensure the valve's drain port (Y) is connected directly to tank with zero backpressure, as this is critical for pilot-operated valves.
