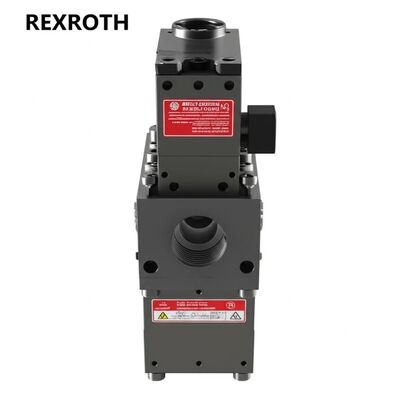

DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth

DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth
DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth

Large Image :  DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO9001
Model Number: DBETE-6X/50G24K31A1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth

Description
Condition: New Drive Mode: Mechanically Driven Pump
Weight: Varies By Model, Typically 10-50 Kg Operatingtemperaturerange: -20°C To +80°C
Rotation: Clockwise Or Counterclockwise Maxpressure: Up To 350 Bar
Highlight:

Rexroth hydraulic relief valve

,

proportional hydraulic valve pilot operated

,

German Rexroth hydraulic valve

DBETE-6X/50G24K31A1V German Proportional Hydraulic Relief Valve Pilot Operated Rexroth
DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth
Technical Specifications
Parameter CategorySpecificationDetails / Notes
Basic Model InfoTypeDirect-operated proportional relief valve with integrated electronics (OBE)
Model SeriesDBETE
Specification Size6
Hydraulic PerformanceMax. Working PressureUp to 420 bar
Max. Flow RateUp to 2 l/min
Pressure Rating50 bar
Operational MediumHydraulic oil (HL, HLP, HVLP, etc.)
Electrical CharacteristicsPower Supply24 VDC
Control SignalProportional input (0-10V)
Solenoid TypeProportional solenoid, 1600 mA coil
Electrical Connection7-pole connector (6 + PE) according to EN 175201-804
Design & MountingConnection TypeSubplate mounting
Mounting StandardISO 4401-03-02-0-05
Port ConfigurationP, T ports (2 ports)
Seal MaterialNBR
Performance FeaturesPressure AdjustmentRemote proportional control via electrical signal
Response TimeTypically < 100 ms (10-90% pressure change)
Linearity±2% of full scale
Hysteresis<3%
Environmental ConditionsOperating Temperature-20°C to +70°C (hydraulic oil)
Storage Temperature-20°C to +80°C
Protection ClassIP65 (with connector)
Physical PropertiesWeightApprox. 1.6 kg
MaterialSteel housing, hardened spool
CompatibilityHydraulic FluidsMineral oils (HL, HLP), synthetic fluids (HETG, HEES)
Control ElectronicsIntegrated electronics (OBE) - no external amplifier required
DBETE-6X/50G24K31A1V German proportional hydraulic relief valve pilot operated Rexroth 0
Related Models
  • DBETR-1X/230G24K4M
  • DBETR-1X/315G24K4M
  • DBETR-1X/350G24K4M
  • DBET-52/50G24K4M
  • DBETE-52/100G24K31F1M
  • DBETE-52/350G24K31F1M
  • DBETE-52/350G24K31A1V
  • DBETE-52/350G24K31A1M
  • DBETE-52/315G24K31F1V
  • DBETE-52/315G24K31F1M
  • DBETE-52/315G24K31A1V
  • DBETE-52/315G24K31A1M
  • DBETE-52/200G24K31F1V
  • DBETE-52/200G24K31F1M
  • DBETE-52/200G24K31A1V
  • DBETE-52/200G24K31A1M
  • DBETE-52/100G24K31F1V
  • DBETE-52/100G24K31A1V
  • DBET-52/50G24K4V
  • DBETE-52/100G24K31A1M
  • DBETE-52/50G24K31F1V
  • DBETE-52/50G24K31F1M
  • DBETE-52/50G24K31A1V
  • DBETE-52/50G24K31A1M
  • DBET-52/350G24K4V
  • DBET-52/350G24K4M
  • DBET-52/315G24K4V
  • DBET-52/315G24K4M
  • DBET-52/200G24K4V
  • DBET-52/200G24K4M
  • DBET-52/100G24K4V
  • DBET-52/100G24K4M
  • DBETE-52/350G24K31F1V
  • DBETE-5X/50G24K31A1M
  • DBETE-5X/100G24K31A1V
  • DBETE-5X/350G24K31F1M
  • DBETE-5X/350G24K31A1V
  • DBETE-5X/350G24K31A1M
  • DBETE-5X/315G24K31F1V
  • DBETE-5X/315G24K31A1V
  • DBETE-5X/315G24K31A1M
  • DBETE-5X/200G24K31F1V
  • DBETE-5X/200G24K31F1M
  • DBETE-5X/200G24K31A1V
  • DBETE-5X/200G24K31A1M
  • DBETE-5X/100G24K31F1V
  • DBETE-5X/100G24K31F1M
  • DBETE-5X/100G24K31A1M
  • DBET-5X/350G24K4V
  • DBETE-5X/50G24K31F1V
  • DBETE-5X/50G24K31F1M
  • DBET-5X/350G24K4M
  • DBET-5X/315G24K4V
  • DBET-5X/315G24K4M
  • DBET-5X/200G24K4V
  • DBET-5X/200G24K4M
  • DBET-5X/100G24K4V
  • DBET-5X/100G24K4M
  • DBET-5X/50G24K4V
  • DBET-5X/50G24K4M
  • DBETE-5X/50G24K31A1V
  • DBETE-5X/315G24K31F1M
  • DBETE-5X/350G24K31F1V
  • DBETBEX-1X/310G24K31A1M
  • DBETFX-1X/80G24-27NZ4M
  • DBETFX-1X/180G24-27NZ4M
  • DBETFX-1X/250G24-27NZ4M
  • DBETFX-1X/315G24-27NZ4M
  • DBETX-10/50G24-8NZ4M
  • DBETX-10/80G24-8NZ4M
  • DBETX-10/180G24-8NZ4M
  • DBETX-10/50G24-25NZ4M
  • DBETX-10/80G24-25NZ4M
  • DBETX-10/180G24-25NZ4M
  • DBETX-10/250G24-25NZ4M
  • DBETX-10/315G24-25Z4M
  • DBET6X/50G24K4V
  • DBET6X/100G24K4V
  • DBETB-6X/315G24K31A1V
  • DBETB-6X/350G24K31A1V
Frequently Asked Questions
1. Q: What is the maximum pressure this valve can control, and what does the "50" indicate?
A: The "50" in the model number indicates a maximum set pressure of 50 bar. This is the lowest pressure rating in the DBETE-6X series, designed for applications requiring precise control at lower system pressures. The valve body can withstand up to 420 bar maximum working pressure, but the proportional control range is specifically calibrated for 0-50 bar.
2. Q: What is the key difference between this DBETE model and the standard DBET series?
A: The DBETE series features integrated electronics (OBE - On-Board Electronics) directly mounted on the valve, eliminating the need for an external amplifier. This model can directly accept a 0-10V analog control signal without requiring a separate amplifier unit, simplifying system wiring and reducing installation space. The standard DBET series requires an external amplifier to convert the control signal.
3. Q: What hydraulic fluids are compatible with this model?
A: This model (without a seal suffix in the model number) typically uses NBR seals as standard. It is compatible with mineral-based hydraulic oils (HL, HLP) and synthetic biodegradable fluids (HETG, HEES). However, it is not recommended for phosphate ester fluids or water-based fluids. For phosphate ester applications, you would need a "V" version with FKM seals. Always maintain hydraulic fluid cleanliness per ISO 4406 class 20/18/15 or better.
4. Q: What does the "K31" code in the model number specify for electrical connections?
A: The "K31" code specifies a 7-pole connector (6 poles + PE) according to EN 175201-804 standard. This connector provides connections for power supply (24V DC), control signal (0-10V), and ground/PE. The integrated electronics eliminate the need for separate amplifier connections.
5. Q: What are the typical applications for this 50 bar low-pressure valve?
A: This 50 bar model is suitable for applications requiring precise low-pressure control, such as pilot pressure systems, clamping circuits, low-pressure testing equipment, and systems where fine pressure adjustment in the lower range is critical. The integrated electronics make it ideal for space-constrained installations where external amplifier mounting is impractical. Ensure the system components are appropriately sized for the lower pressure range.
