Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/16-20RE01MC6-16 PV7-1X/100-118RE07MC5-16 PV7-1X/16-20RE01MC3-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/16-20RE01MC6-16 PV7-1X/100-118RE07MC5-16 PV7-1X/16-20RE01MC3-16 The hydraulic pump is an original imported PV7 series vane pump, manufactured by Rexroth in Germany, featuring a pilot-operated

Description
Mounting Type: Flange, Foot, And Face Pump: Rexroth
Size: 22 To 500 Usage: Oil
Flowrate: Up To 500 L/min Efficiency: Up To 95%
Trademark: MKS Pumptype: Variable Displacement / Fixed Displacement
Highlight:

Rexroth PV7 vane pump

,

German hydraulic vane pump

,

pilot-operated vane pump

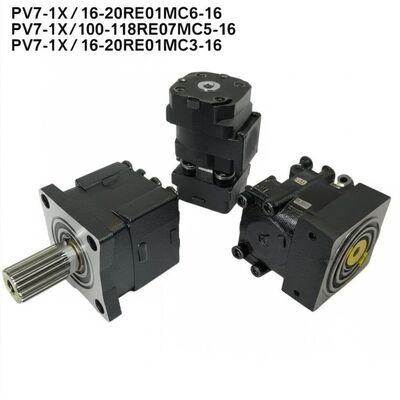

Rexroth PV7 Series Vane Pumps
PV7-1X/16-20RE01MC6-16
PV7-1X/100-118RE07MC5-16
PV7-1X/16-20RE01MC3-16
Product Overview
The hydraulic pump is an original imported PV7 series vane pump, manufactured by Rexroth in Germany, featuring a pilot-operated design for precise control and reliable performance in industrial applications.
Technical Specifications
Parameter Specification
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800-3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2-1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
PV7-1X/1 <div class=Available Models
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
PV7-1X/100-118RE07MC7-16
PV7-1X/10-14RE01MC0-16-P90
PV7-1X/16-20RE01MC7-16WH
PV7-1X/40-45RE37MD0-16-C3.1
PV7-1X/40-45RE37MW0-16WG
PV7-1X/40-45RE37KD0-16
PV7-1X/40-45RE37MC0-16-P80
PV7-1X/16-30RE01MC5-08
PV7-1X/100-150RE07KD0-08
PV7-1X/40-45RE37MW0-16WH
PV7-1X/10-14RE01MD0-16
PV7-1X/100-150RE07MC5-08WG
PV7-1X/16-30RE01MC7-08
PV7-1X/63-71RE07MC0-06-A460
PV7-1X/10-14RE01MC0-16
PV7-1X/16-30RE01MN0-08
PV7-1X/25-45RE01KC0-08
PV7-1X/63-71RE07MD0-16-Q85
PV7-1X/100-150RE07MN0-08
PV7-1X/63-94RE07MC3-08
PV7-1X/16-20RE01MW0-16WG
PV7-1X/25-30RE01MD0-16
PV7-1X/10-14RE01MW0-16WG
PV7-1X/25-30RE01MD5-16WH
PV7-1X/10-14RE01MC0-16-P140Q10
PV7-1X/63-71RE07MD5-16
PV7-1X/40-55RE37MC3-08-A449
PV7-1X/40-45RE37MD3-16
PV7-1X/63-71RE07MC0-16
PV7-1X/40-71RE37MC7-08WG
PV7-1X/40-45RE37KC3-16
Technical FAQ
Can I get custom settings from the factory?
Yes, pumps can be supplied with customer-specific settings for zero stroke pressure or maximum flow, indicated by suffixes like '-P50' or '-Q20' in the ordering code.
What are the permissible inlet pressure conditions?
The absolute inlet pressure should be between 0.8 and 2.5 bar.
Are radial or axial forces allowed on the shaft?
No, radial and axial forces on the drive shaft are not permissible.
What is the required cleanliness level for the hydraulic fluid?
The maximum permissible contamination level is ISO 4406 class 19/16/13. Effective filtration is critical for performance and longevity.
What is the recommended hydraulic fluid?
Standard recommendation is mineral oil HLP according to DIN 51524-2. Other fluids may be used upon request.
