PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16 German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging

PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16 German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging
PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16 German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16 German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging

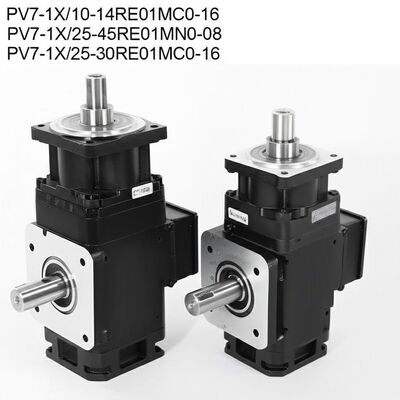

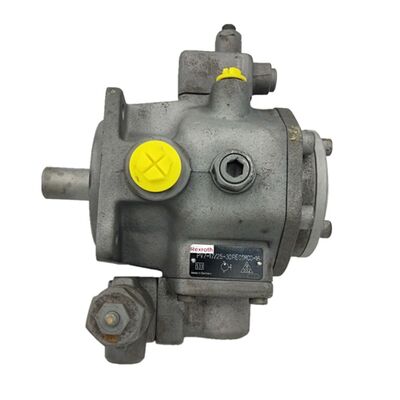

Large Image :  PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16 German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/10-14RE01MC0-16 PV7-1X/25-45RE01MN0-08 PV7-1X/25-30RE01MC0-16 German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging

Description
Fluid Temperature Range: '-20 °C To +80 °C (operation); -40 °C To +90 °C (storage) Viscosity Range: 10–1000 Mm²/s (operation); 2–1500 Mm²/s (start-up)
Suction Pressure: '-0.8 Bar To +1 Bar (absolute Pressure: 0.2–1.1 Bar) Mounting Type: Flange Mounting (ISO 3019-2 Standard), Foot Mounting (optional)
Weight: 8–15 Kg (varies By Model And Configuration)
Highlight:

Rexroth PV7 vane pump hydraulic

,

German Rexroth hydraulic oil pump

,

original packaging Rexroth vane pump

Rexroth PV7 Series Vane Pump
Featured Models
PV7-1X/10-14RE01MC0-16
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
German Rexroth PV7 series vane pump hydraulic oil pump, in stock, imported, original packaging
Technical Specifications
Parameter Specification
Model Series PV7-1X/10-14RE01MC0-16, PV7-1X/16-20RE01MC0-16, PV7-2X/20-25RE01MC0-16 (typical models)
Displacement per Revolution 10-25 cm³/rev (varies by specific model)
Maximum Operating Pressure 210 bar (continuous), 250 bar (peak)
Maximum Speed 1800-3600 rpm (depends on displacement and fluid viscosity)
Minimum Speed 600 rpm (ensures stable operation)
Fluid Medium Mineral oil-based hydraulic fluid (ISO VG 32/46/68 recommended)
Fluid Temperature Range -20 °C to +80 °C (operation); -40 °C to +90 °C (storage)
Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up)
Volumetric Efficiency ≥90% (at rated pressure and speed)
Total Efficiency ≥80% (at rated working condition)
Noise Level ≤65 dB(A) (at 1 m distance under rated operation)
Suction Pressure -0.8 bar to +1 bar (absolute pressure: 0.2-1.1 bar)
Mounting Type Flange mounting (ISO 3019-2 standard), foot mounting (optional)
Shaft Connection Splined shaft (ISO 4162 standard) or keyed shaft (customizable)
Seal Type Viton® or NBR shaft seals (resistant to high temperature and oil)
Inlet/Outlet Port BSPP, BSPT or SAE thread (port size matches displacement)
Weight 8-15 kg (varies by model and configuration)
PV7-1X/1 <div class=Additional Available Models
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
Frequently Asked Questions
Is Rexroth PV7 vane pump compliant with international standards?
Yes, it is fully compliant with international hydraulic industry standards.
How about the heat generation of Rexroth PV7 vane pump during high-pressure operation?
It is designed to reduce heat generation, preventing overheating in high-pressure working conditions.
Does Rexroth PV7 vane pump have a reliable sealing system?
Yes, it is equipped with a reliable sealing system to prevent fluid leakage effectively.
Is Rexroth PV7 vane pump a cost-effective solution?
Absolutely, it offers high performance at a reasonable price, making it cost-effective for hydraulic power needs.
Can Rexroth PV7 vane pump handle high-viscosity hydraulic fluids?
Yes, it can handle high-viscosity hydraulic fluids effectively without affecting performance.
