PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16 Hydraulic pump PV7 blade oil pump imported from Germany by Rexroth in stock

PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16 Hydraulic pump PV7 blade oil pump imported from Germany by Rexroth in stock
PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16 Hydraulic pump PV7 blade oil pump imported from Germany by Rexroth in stock PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16 Hydraulic pump PV7 blade oil pump imported from Germany by Rexroth in stock

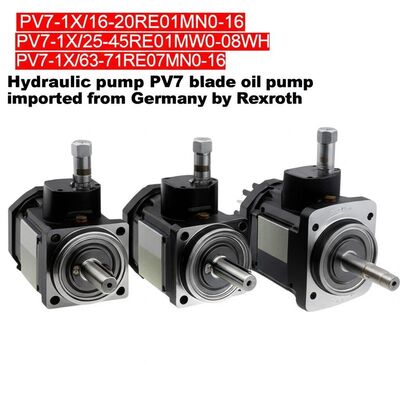

Large Image :  PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16 Hydraulic pump PV7 blade oil pump imported from Germany by Rexroth in stock

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/A,D/P,L/C
Supply Ability: 100
Contact Now

PV7-1X/16-20RE01MN0-16 PV7-1X/25-45RE01MW0-08WH PV7-1X/63-71RE07MN0-16 Hydraulic pump PV7 blade oil pump imported from Germany by Rexroth in stock

Description
Operation Protection: Noise Level Abnormality Threshold Control Signal: PWM Signal Duty Cycle Operating Range*
Highlight:

Rexroth hydraulic vane pump

,

German imported oil pump

,

PV7 blade vane pump

Rexroth PV7 Series Hydraulic Vane Pumps
Available Models
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16

German-engineered hydraulic vane pumps with pressure compensation control, available from stock.

Technical Specifications
Parameter Specification
Suction Pressure Range -0.8 to +1 bar (absolute pressure: 0.2-1.1 bar)
Compatible Hydraulic Fluids Mineral oil (HLP) and synthetic oil (HETG/HEES); use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up); optimal range is 16-160 mm²/s
Fluid Temperature Range -20 to +80 °C (operation); -40 to +90 °C (storage)
Noise Level (Direct-Acting) ≤63 dB(A) at 1 m distance under rated operation
Noise Level (Pilot-Operated) ≤65 dB(A) at 1 m distance under rated operation
Mounting Standard ISO 3019-2 flange; optional foot mounting for some models
Shaft Connection ISO 4162 splined shaft; keyed shaft available on request
Seal Materials NBR (standard, for mineral oil) and FKM (optional, for synthetic oil)
Weight Range (Direct-Acting) 8-12 kg (depends on displacement)
Weight Range (Pilot-Operated) 10-35 kg (depends on displacement and control type)
Control Type (PV7-A Series) Direct-acting pressure compensation
Control Type (PV7-C/D/N/W Series) Pilot-operated pressure/flow control
Pressure Rise Response Time 40-60 ms (both direct-acting and pilot-operated)
Housing Material GG25 cast iron (high strength and vibration resistance)
Rotor and Stator Material 42CrMo4 alloy steel (quenched & tempered for high hardness and wear resistance)
Vane Material Wear-resistant powder metallurgy alloy (self-lubricating and anti-seizure)
Service Life 8000-10000 operating hours (depends on oil cleanliness and maintenance)
Case Drain Flow Range (Direct-Acting) 1.5-2.5 l/min at rated pressure (varies with displacement and pressure)
PV7-1X/16 <div class=Additional Model Variants
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
PV7-1X/40-45RE37MW5-16WH
PV7-1X/10-14RE01MC0-16-P45
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45
PV7-1X/16-20RE01MW0-16
PV7-1X/16-30RE01MD0-08
PV7-1X/25-45RE01MD0-08
PV7-1X/100-118RE07MC7-16
PV7-1X/10-14RE01MC0-16-P90
PV7-1X/16-20RE01MC7-16WH
PV7-1X/40-45RE37MD0-16-C3.1
PV7-1X/40-45RE37MW0-16WG
PV7-1X/40-45RE37KD0-16
PV7-1X/40-45RE37MC0-16-P80
PV7-1X/16-30RE01MC5-08
PV7-1X/100-150RE07KD0-08
PV7-1X/40-45RE37MW0-16WH
PV7-1X/10-14RE01MD0-16
PV7-1X/100-150RE07MC5-08WG
PV7-1X/16-30RE01MC7-08
PV7-1X/63-71RE07MC0-06-A460
PV7-1X/10-14RE01MC0-16
PV7-1X/16-30RE01MN0-08
PV7-1X/25-45RE01KC0-08
Maintenance & Monitoring Guidelines
Optimal Fluid Viscosity Operating Range
Set to 10-40 mm²/s, matching the viscosity specifications of your hydraulic fluid.
Fluid Contamination Particle Count Threshold
Should be set to meet ISO cleanliness standards (≤ ISO 18/15/12) to trigger filter replacement alerts.
Maximum Allowable Fluid Moisture Content Alarm Threshold
Set to ≤0.1% to detect fluid degradation caused by water contamination early.
Fluid Replacement Maintenance Reminder Interval
Set to 100-5000 hours based on your system's operating conditions and fluid maintenance guidelines.
Filter Pressure Drop Clogging Alarm Threshold
Triggers an alert when pressure drop exceeds 2 bar, indicating the hydraulic filter is clogged and needs replacement.
Electrical Configuration

Contact technical support for specific electrical configuration requirements based on your application.
