PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump

PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump
PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump

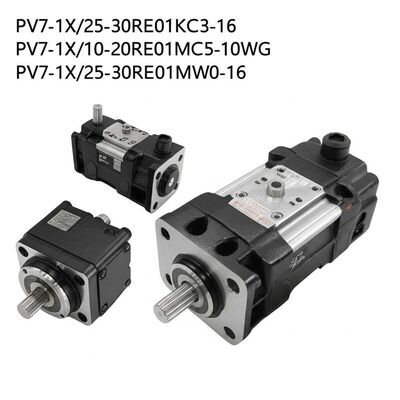

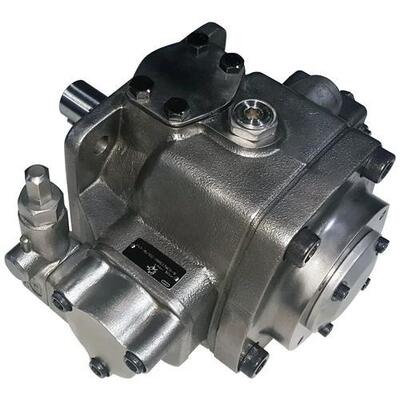

Large Image :  PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

PV7-1X/25-30RE01KC3-16 PV7-1X/10-20RE01MC5-10WG PV7-1X/25-30RE01MW0-16 German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump

Description
Shaft Connection: Viton® Or NBR Shaft Seals (resistant To High Temperature And Oil) Mounting Type: Splined Shaft (ISO 4162 Standard) Or Keyed Shaft (customizable)
Suction Pressure: Flange Mounting (ISO 3019-2 Standard), Foot Mounting (optional) Noise Level: '-0.8 Bar To +1 Bar (absolute Pressure: 0.2–1.1 Bar)
Total Efficiency: ≤65 DB(A) (at 1 M Distance Under Rated Operation)
Highlight:

Rexroth PV7 hydraulic vane pump

,

German imported hydraulic oil pump

,

Rexroth PV7 series blade pump

Rexroth PV7 Series Hydraulic Vane Pumps
Featured Models
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
Product Overview
German hydraulic pump original imported Rexroth PV7 series hydraulic oil pump blade pump
Technical Specifications
Parameter/Property Category Direct-Acting (PV7-A) Series Pilot-Operated (PV7-C/D/N/W) Series Unit Remarks
Model Range PV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10 PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16 #VALUE! 1X/2X=component series; 06/14/20=frame size
Displacement per Revolution 10-25 14-150 cm³/rev Displacement varies by specific model suffix
Max. Continuous Working Pressure 100 160 bar PV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure 120 200 bar Short-term (≤5s) overload only
Speed Range 600-2800 600-3600 rpm Higher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm) 36 270 l/min Calculated at rated displacement
Volumetric Efficiency (Rated Condition) ≥90% ≥92% % At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation) ≥80% ≥82% % Includes mechanical & volumetric efficiency
Suction Pressure Range 1 -0.8 to +1 bar Absolute pressure: 0.2-1.1 bar
Fluid Compatibility Mineral oil (HLP), synthetic oil (HETG/HEES) Mineral oil (HLP), synthetic oil (HETG/HEES) - Use FKM seals for synthetic fluids
Fluid Viscosity Range 10-1000 (operation); 2-1500 (start-up) 10-1000 (operation); 2-1500 (start-up) mm²/s Optimal: 16-160 mm²/s
Fluid Temperature Range -20 to +80 -20 to +80 °C Storage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation) ≤63 ≤65 dB(A) Pilot-operated models have optimized noise reduction
Mounting Standard ISO 3019-2 flange ISO 3019-2 flange - Optional foot mounting for some models
Shaft Connection ISO 4162 splined shaft ISO 4162 splined shaft - Keyed shaft available on request
Seal Material NBR (standard); FKM (optional) NBR (standard); FKM (optional) - NBR for mineral oil; FKM for synthetic oil
Weight 8-12 10-35 kg Depends on displacement and control type
Control Type Direct-acting pressure compensation Pilot-operated pressure/flow control - PV7-A: direct-acting; PV7-C/D/N/W: pilot-operated
PV7-1X/25 <div class=Available Models
PV7-1X/63-71RE07MC3-16
PV7-1X/100-118RE07MD3-16
PV7-1X/63-71RE07MW0-16WG
PV7-1X/10-20RE01MD5-10
PV7-1X/25-30RE01MW0-16WG
PV7-1X/40-45RE37MW5-16WG
PV7-1X/100-118RE07MC5-16WG
PV7-1X/63-94RE07MC7-08WG
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
PV7-1X/100-118RE07MC0-16
PV7-1X/63-71RE07MD0-16
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
Frequently Asked Questions
What types of hydraulic oil are compatible with PV7 series pumps?
It is compatible with mineral-based hydraulic oils, synthetic hydraulic oils, and biodegradable hydraulic oils that meet the requirements of ISO 6743-4 (category HM, HV, HG). The recommended viscosity range is 10-40 mm²/s at operating temperature.
How to select the appropriate displacement model of PV7 series pumps?
Select according to the system's required flow rate and working pressure. The displacement range of PV7 series is 4-180 cm³/rev; calculate the flow rate via the formula: Flow (L/min) = Displacement (cm³/rev) × Speed (rpm) ÷ 1000, and match it with the system's actual flow demand.
Can the PV7 series pumps be operated in both clockwise and counterclockwise directions?
Most standard PV7 models are designed for fixed rotational direction, but customized models with reversible rotation are available upon request; confirm the rotation direction requirements with the supplier before purchase.
What is the recommended oil temperature range for PV7 series pumps during operation?
The optimal operating oil temperature is 40-60 °C; the allowable short-term maximum temperature should not exceed 80 °C, and the minimum temperature should not be lower than 10 °C to avoid viscosity abnormalities affecting performance.
What causes abnormal noise during the operation of PV7 series pumps?
Common causes include insufficient oil suction (such as clogged suction filters, too-small suction pipe diameters), air mixed in the hydraulic oil, excessive oil viscosity, worn pump internal components, or loose mounting bolts.
