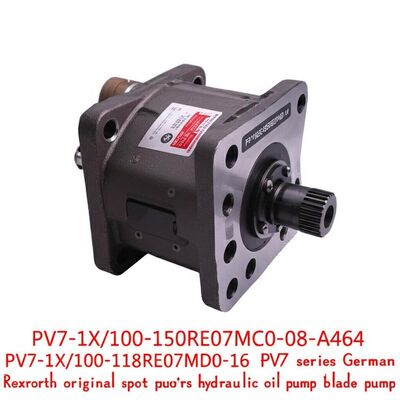

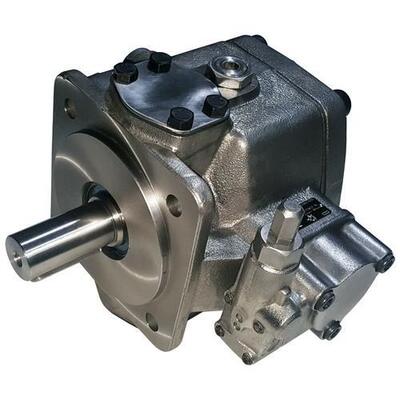

PV7 Series Hydraulic Vane Pumps
Available Models
PV7-1X/25-30RE01MC0-16
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
Technical Specifications
| Parameter |
Direct-Acting Models |
Pilot-Operated Models |
| Maximum Continuous Working Pressure |
100 bar |
160 bar |
| Maximum Peak Pressure |
120 bar (short-term overload ≤5s only) |
200 bar (short-term overload ≤5s only) |
| Speed Range |
600-2800 rpm (higher speed for smaller displacement models) |
600-3600 rpm (higher speed for smaller displacement models) |
| Maximum Flow Rate at 1800 rpm |
36 l/min (calculated at rated displacement) |
270 l/min (calculated at rated displacement) |
| Volumetric Efficiency (at 160 bar, 1800 rpm, ISO VG 46 oil) |
≥90% |
≥92% |
| Total Efficiency |
≥80% (includes mechanical & volumetric efficiency) |
≥82% (includes mechanical & volumetric efficiency) |
| Noise Level at 1 m Distance |
≤63 dB(A) |
≤65 dB(A) |
| Weight Range |
8-12 kg (depends on displacement) |
10-35 kg (depends on displacement and control type) |
Operating Conditions
| Suction Pressure Range |
-0.8 to +1 bar (absolute pressure: 0.2-1.1 bar) |
| Compatible Hydraulic Fluids |
Mineral oil (HLP) and synthetic oil (HETG/HEES); use FKM seals for synthetic fluids |
| Fluid Viscosity Range |
10-1000 mm²/s (operation); 2-1500 mm²/s (start-up); optimal range is 16-160 mm²/s |
| Fluid Temperature Range |
-20 to +80 °C (operation); -40 to +90 °C (storage) |
| Mounting Standard |
ISO 3019-2 flange; optional foot mounting for some models |
| Shaft Connection |
ISO 4162 splined shaft; keyed shaft available on request |
| Seal Materials |
NBR (standard, for mineral oil) and FKM (optional, for synthetic oil) |
Control Types
| PV7-A Series |
Direct-acting pressure compensation |
| PV7-C/D/N/W Series |
Pilot-operated pressure/flow control |
![PV7-1X/25
<div class=]()
Additional Model Variants
PV7-1X/63-71RE07MC3-16
PV7-1X/100-118RE07MD3-16
PV7-1X/63-71RE07MW0-16WG
PV7-1X/10-20RE01MD5-10
PV7-1X/25-30RE01MW0-16WG
PV7-1X/40-45RE37MW5-16WG
PV7-1X/100-118RE07MC5-16WG
PV7-1X/63-94RE07MC7-08WG
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
PV7-1X/100-118RE07MC0-16
PV7-1X/63-71RE07MD0-16
PV7-1X/40-45RE37MC0-16-P90
PV7-1X/25-30RE01MC0-16-P100Q38
PV7-1X/100-150RE07MC0-08-A464
PV7-1X/100-118RE07MD0-16
PV7-1X/10-14RE01MN0-16
PV7-1X/40-45RE37MC5-16
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
Frequently Asked Questions
How to adjust the output flow of the PV7-2X variable-displacement pump?
The PV7-2X is equipped with a pressure compensation or flow compensation control mechanism; adjust the set value of the compensation valve through the adjusting screw on the pump body to change the output flow of the pump.
What causes the PV7 series pump to fail to build pressure?
Possible reasons include severe internal leakage of the pump, incorrect setting of the relief valve, blocked oil suction path, damaged control valve core of the variable-displacement pump, or insufficient oil in the tank.
Can the PV7 series pumps be used in series or parallel connection?
Yes, multiple PV7 pumps can be connected in series (to increase system pressure) or in parallel (to increase system flow) under the condition of matching the motor power and pipeline diameter; it is necessary to set separate check valves and pressure relief devices for each pump.
What maintenance work should be done regularly for the PV7 series pumps?
Regular maintenance includes checking the oil level and cleanliness of the hydraulic oil, cleaning the suction filter and return filter, inspecting the tightness of the shaft seal and pipeline joints, checking the vibration and noise of the pump, and replacing the hydraulic oil and filter elements according to the maintenance cycle.
What is the material of the vanes in the PV7 series pumps?
The vanes are made of high-strength cast iron or phenolic resin composite materials, which have good wear resistance and self-lubricating properties to adapt to the high-speed sliding environment inside the pump.
