247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317

247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317
247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317 247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317

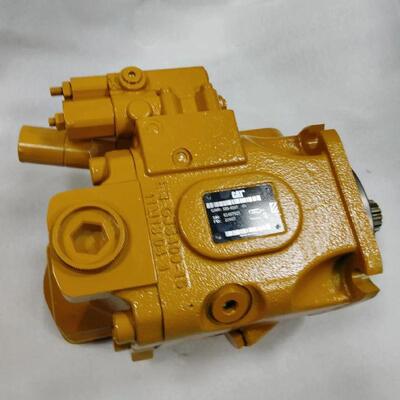

Large Image :  247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 247-7867、358-5004
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317

Description
Rotation Direction: Clockwise (CW, Standard), Counterclockwise (CCW, Custom Order Only) All Pump Types: CCW Pumps Need Matched Drive System And Control Valve Adjustments
Mounting Standard: SAE A/B/C/D, Custom Flange/foot Mounting For Special Equipment Main Pumps, Pilot Pumps: Confirm Base Plate Dimensions And Bolt Hole Positions Before Customization
Seal Material: Nitrile Rubber (NBR, Standard), Fluororubber (FKM, Custom For High-temperature Oil) Axial Piston Pumps, Gear Pumps: Match Displacement To Equipment Power Demand; Higher Cc/r = Larger Flow Rate
Highlight:

small excavator hydraulic piston pump

,

Carter hydraulic pump with warranty

,

3-10 ton excavator axial piston pump

247-7867、358-5004 3-10 Ton Small Excavator Hydraulic Axial Piston Pump
Product Overview

High-performance hydraulic axial piston pump designed for 3-10 ton small excavators, compatible with Cat 305.5E/306E/307D/E/308E/312D/317 models and similar equipment.

Technical Specifications
Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction Mounting Standard
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise SAE A
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise SAE B
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise SAE C
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise SAE D
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise SAE B
Gear Pump (Pilot) 560-0886 Full Range Excavators 8.2 21 Clockwise SAE A
247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317 0
Compatible Part Numbers by Equipment Class
Mini Excavators (1-3 tons)

Main pump: 487-6207 CA4876207, 566-7021, 241-7972, 163-9762, 241-9299

Pilot/gear pump: 560-0886, 211-6626

Compatible Models: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc.

Small Excavators (3-10 tons)

Main pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

Pilot/gear pump: 126-2016, 284-3536

Compatible Models: 305.5E/306E/307D/308E/312D/317, etc.

Medium Excavators (20-36 tons)

Main pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102

Rotary pumps: 204-4916, 204-4922

Pilot/gear pump: 175-6253, 397-6960

Compatible Models: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.

Large Excavators (over 37 tons)

Main pump/rotary pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

Pilot/gear pump: 564-9801, 234-4638

Compatible Models: 336GC/340/345/349/374F/385/390F/395GC, etc.

Frequently Asked Questions
What is the difference between a main pump and a swing pump in Cat excavators?
The main pump supplies hydraulic power for overall movements (boom, arm, bucket), while the swing pump is dedicated to the excavator's upper structure rotation.
Can Cat hydraulic pumps be repaired on-site?
Minor issues (e.g., seal replacement, fitting tightening) can be fixed on-site, but major damage (e.g., internal cylinder block wear) requires workshop disassembly and repair.
What is the OEM part number for the swing pump of Cat 374F?
The common swing pump part number for Cat 374F is 593-3840, a double piston pump.
Why does a hydraulic pump experience cavitation?
Cavitation is caused by low oil level, restricted suction lines, high oil viscosity at low temperatures, or a clogged suction filter.
Are Cat hydraulic pump parts interchangeable between different equipment models?
Only if the models share the same hydraulic system specifications; always verify with the parts manual or dealer before interchange.
