423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317

423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317
423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317 423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317

Large Image :  423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317

Product Details:
Place of Origin: USA
Brand Name: CAT
Certification: ISO
Model Number: 423-0097、397-3941、214-1091
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 2
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317

Description
Rotation Direction: Clockwise (CW, Standard), Counterclockwise (CCW, Custom Order Only) All Pump Types: FKM Seals Suitable For Oil Temperature Up To 120°C; Ideal For Desert/mining Use
Mounting Standard: SAE A/B/C/D, Custom Flange/foot Mounting For Special Equipment Main Pumps, Pilot Pumps: Confirm Base Plate Dimensions And Bolt Hole Positions Before Customization
Seal Material: Nitrile Rubber (NBR, Standard), Fluororubber (FKM, Custom For High-temperature Oil)
Highlight:

Small excavator hydraulic pump

,

3-10 ton excavator pump

,

Caterpillar 305.5E hydraulic pump

423-0097, 397-3941, 214-1091 Small Excavator 3-10 Ton Hydraulic Pump
Product Overview

High-performance hydraulic pumps designed for small excavators in the 3-10 ton range, compatible with Cat 305.5E, 306E, 307D/E, 308E, 312D, and 317 models.

Hydraulic Pump Specifications
Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise
Gear Pump (Pilot) 560-0886 Full Range Excavators 8.2 21 Clockwise
Axial Piston Pump 295-9426 349 Series 160 36 Clockwise
Gear Pump (Auxiliary) 175-6253 Loaders/Backhoes 10.5 24 Clockwise

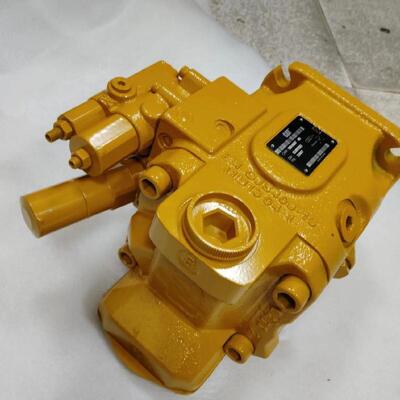

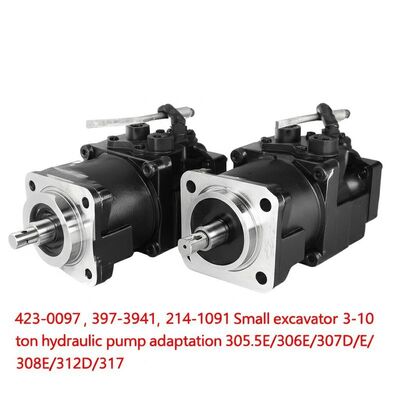

Product Image
423-0097、397-3941、214-1091 Small excavator 3-10 ton hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317 0
Compatible Equipment by Category
1. Mini Excavators

Main Pump: 487-6207 CA4876207, 566-7021, 241-7972, 163-9762, 241-9299

  • Adaptation: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc.

Pilot/Gear Pump: 560-0886, 211-6626

2. Small Excavators (3-10 Tons)

Main Pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

  • Adaptation: 305.5E/306E/307D/308E/312D/317, etc.

Pilot/Gear Pump: 126-2016, 284-3536

3. Medium Excavators (20-36 Tons)

Main Pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102

  • Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.

Rotary Pumps: 204-4916, 204-4922

Pilot/Gear Pump: 175-6253, 397-6960

4. Large Excavators (Over 37 Tons)

Main Pump/Rotary Pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

  • Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc.

Pilot/Gear Pump: 564-9801, 234-4638

5. Loaders/Backhoes (415F/416F/422F/426F/428F, etc.)

Main Pump: 307-3063 CA3073063, 20R-6569, 161-6634, 235-4110, 100-3259, 121-7385

  • Adaptation: 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Pilot/Gear Pump: 175-6253, 397-6960

Frequently Asked Questions
Q1: Are Cat hydraulic pumps compatible with non-Cat hydraulic oil?

They can be, but the oil must meet Cat's official specifications (e.g., Cat DEO Hydraulic Oil). Using unapproved oil may cause pump wear and void warranty.

Q2: What is the displacement of Cat pump part number 423-0097?

The 423-0097 axial piston pump has a displacement of approximately 65 cc/r, suitable for small excavators like 305.5E/306E.

Q3: How to identify a remanufactured Cat hydraulic pump?

Remanufactured pumps often have a "Reman" label, a unique part number suffix, and are certified by Cat to meet OEM performance standards.

Q4: What causes hydraulic pump oil leaks?

Leaks are typically caused by damaged seals/gaskets, loose fittings, cracked pump housing, or excessive system pressure.

Q5: Can a Cat hydraulic pump's rotation direction be reversed?

No, most Cat pumps are designed for fixed clockwise rotation (viewed from the drive shaft end), and reversing may cause internal damage.
