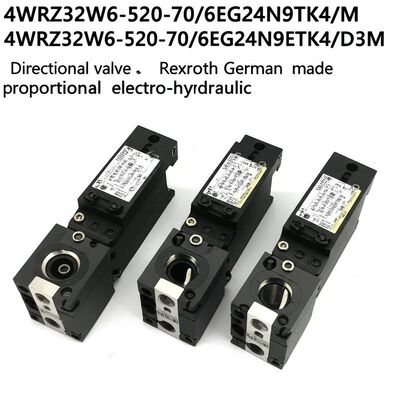

Rexroth 4WRZ Proportional Directional Valves
4WRZ32W6-520-70/6EG24N9TK4/M
4WRZ32W6-520-70/6EG24N9ETK4/D3M
4WRZ32W6-520-70/6EG24N9ETK4/M
German-made proportional hydraulic electro-hydraulic solenoid directional valves for precision flow control applications.
Product Specifications
Model Configuration Examples
| Complete Model |
Model Code Breakdown |
Core Parameters |
Release Status |
| 4WRE 6 E04-2X/V |
4WRE: Base Model
6: Nominal Size
E: 4/3 3-position 4-way (spring-centered)
04: Rated Flow 4L/min (Δp=10bar)
2X: Component Series
V: Seal Material (FKM Fluororubber) |
Valve Type: 4/3 3-position 4-way
Flow Rate: 4L/min
Seal: FKM
Power Supply: DC24V
Interface: ±10V/4-20mA |
Officially Released (Mass Production) |
| 4WRE 6 E08-2X/V |
4WRE: Base Model
6: Nominal Size
E: 4/3 3-position 4-way (spring-centered)
08: Rated Flow 8L/min (Δp=10bar)
2X: Component Series
V: Seal Material (FKM Fluororubber) |
Valve Type: 4/3 3-position 4-way
Flow Rate: 8L/min
Seal: FKM
Power Supply: DC24V
Interface: ±10V/4-20mA |
Officially Released (Mass Production) |
| 4WRE 6 E16-2X/V |
4WRE: Base Model
6: Nominal Size
E: 4/3 3-position 4-way (spring-centered)
16: Rated Flow 16L/min (Δp=10bar)
2X: Component Series
V: Seal Material (FKM Fluororubber) |
Valve Type: 4/3 3-position 4-way
Flow Rate: 16L/min
Seal: FKM
Power Supply: DC24V
Interface: ±10V/4-20mA |
Officially Released (Mass Production) |
| 4WRE 6 E32-2X/V |
4WRE: Base Model
6: Nominal Size
E: 4/3 3-position 4-way (spring-centered)
32: Rated Flow 32L/min (Δp=10bar)
2X: Component Series
V: Seal Material (FKM Fluororubber) |
Valve Type: 4/3 3-position 4-way
Flow Rate: 32L/min
Seal: FKM
Power Supply: DC24V
Interface: ±10V/4-20mA |
Officially Released (Mass Production) |
| 4WRE 6 J08-2X/V |
4WRE: Base Model
6: Nominal Size
J: 4/2 2-position 4-way
08: Rated Flow 8L/min (Δp=10bar)
2X: Component Series
V: Seal Material (FKM Fluororubber) |
Valve Type: 4/2 2-position 4-way
Flow Rate: 8L/min
Seal: FKM
Power Supply: DC24V
Interface: ±10V/4-20mA |
Officially Released (Mass Production) |
| 4WRE 6 E08-2X/VJ |
4WRE: Base Model
6: Nominal Size
E: 4/3 3-position 4-way (spring-centered)
08: Rated Flow 8L/min (Δp=10bar)
2X: Component Series
V: Seal Material (FKM Fluororubber)
J: Special Protection (Seawater-Resistant) |
Valve Type: 4/3 3-position 4-way
Flow Rate: 8L/min
Seal: FKM
Protection: Seawater corrosion resistance
Power Supply: DC24V
Interface: ±10V/4-20mA |
Officially Released (Specialized Mass Production) |
![4WRZ32W6-520-7
<div class=]()
Available Model Variants
4WRZ16E1-100-7X/6EG24N9EK4/M
4WRZ16E1-100-7X/6EG24N9K4/D3M
4WRZ16E1-100-7X/6EG24N9K4/M
4WRZ16E180-7X/6EG24N9EK4/M
4WRZ16E180-7X/6EG24N9K4/D3M
4WRZ16E180-7X/6EG24N9K4/M
4WRZ16E150-7X/6EG24N9TK4/D3M
4WRZ16E150-7X/6EG24N9TK4/M
4WRZ16E150-7X/6EG24N9ETK4/D3M
4WRZ16E150-7X/6EG24N9ETK4/M
4WRZ16E150-7X/6EG24N9EK4/D3M
4WRZ16E150-7X/6EG24N9K4/D3M
4WRZ16E125-7X/6EG24N9EK4/M
4WRZ16E125-7X/6EG24N9K4/D3M
4WRZ16E125-7X/6EG24N9K4/M
4WRZ16E100-7X/6EG24N9TK4/D3M
4WRZ16E100-7X/6EG24N9TK4/M
4WRZ16E100-7X/6EG24N9ETK4/D3M
4WRZ16E100-7X/6EG24N9ETK4/M
4WRZ16E100-7X/6EG24N9EK4/D3M
4WRZ16E100-7X/6EG24N9EK4/M
4WRZ16E1-100-7X/6EG24N9ETK4/M
4WRZ16E100-7X/6EG24N9K4/M
4WRZ16E100-7X/6EG24N9K4/D3M
Frequently Asked Questions
How does the proportional control work on 4WRZ valves?
The electric input signal (e.g., 0-10 V) activates the proportional solenoid, which moves the pilot spool; pilot oil pressure then displaces the main spool proportionally to the input signal.
What input signal types are compatible with 4WRZ valves?
Analog signals (e.g., ±10 V) are standard; some variants with integrated electronics (OBE) may support digital signals.
How to adjust the flow rate of a 4WRZ valve?
Modify the electrical input signal amplitude; flow rate increases proportionally with signal strength (within the valve's maximum flow rating).
What happens if the electrical input signal is interrupted?
The solenoids de-energize, and centering springs return the main spool to the central position, stopping flow to working ports.
How to reverse flow direction with a 4WRZ valve?
Activate the opposite proportional solenoid (e.g., solenoid "A" for P→A/B→T, solenoid "B" for P→B/A→T).
