Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure

Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure
Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure
Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure

Gambar besar :  Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure

Detail produk:
Tempat asal: Jerman
Nama merek: Rexroth
Sertifikasi: ISO
Nomor model: A4VSO355LR2G/22R-VPB13N00 A4VSO355LR2G/22R-PPB13N00 A4VSO355E2/22R-PZB13N00 A4VSO250LR2/22R-VPB13N00
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: 2
Kemasan rincian: Kotak kayu
Waktu pengiriman: 2 minggu
Syarat-syarat pembayaran: MoneyGram, Western Union, T/T, D/P, D/A, L/C.
Menyediakan kemampuan: 100
Kontak

Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure

Deskripsi
Tipe poros: Kunci atau splined Kondisi: Prinsip meshing internal
Tekanan: Standar, tekanan tinggi Arah rotasi: Searah jarum jam atau berlawanan arah jarum jam
Berat: 2.5-22 kg Tekanan maksimum: 315 bar
Pemindahan: 28cc, 45cc, 71cc, 100cc, 140cc, 180cc, 250cc, 355cc, 500cc Paket transportasi: Kotak kayu
Jenis kontrol: Tekanan kompensasi, penginderaan beban Jenis segel: Segel bibir atau segel mekanis
Menyoroti:

Rexroth A4VSO355LR2G hydraulic pump

,

355cc high pressure pump

,

315 bar gear pump

A4VSO Series Variable High-Pressure Piston Pump

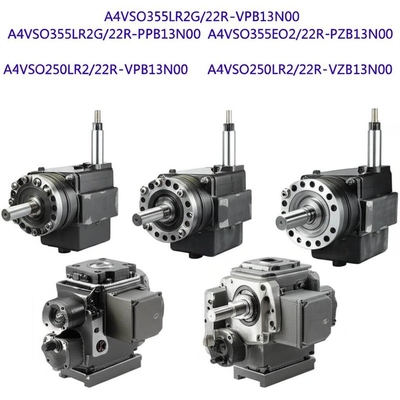

Models: A4VSO355LR2G/22R-VPB13N00, A4VSO355LR2G/22R-PPB13N00, A4VSO355EO2/22R-PZB13N00, A4VSO250LR2/22R-VPB13N00, A4VSO250LR2/22R-VZB13N00
German Rexroth hydraulic pump designed for high-pressure applications with variable displacement.
Contact: whatsapp +85267220981 | email yli97584@gmail.com
Brand Name Rexroth
Place of Origin Fujian, China
Warranty 12 Months
Video outgoing-inspection Provided
Machinery Test Report Provided
Application Machinery Repair Shops
Material Iron
Condition Original
Quality 100% Tested Great Performance
Certification ISO
Feature Long Life, Low Noise
Function Filter Diesel Oil
Power Hydraulic Power
Payment Term T/T 100%
Rexroth A4VSO355LR2G Hydraulic Pump 355cc 315 Bar High Pressure 0
Frequently Asked Questions
Installation
The pump can be installed in various orientations (horizontal or vertical). For vertical installation with the shaft pointing upwards, external bearing flushing is strongly recommended to ensure adequate lubrication for the front bearing and shaft seal.
Operation & Fluid Management
Q5: What hydraulic oil should I use, and what is the optimal viscosity?
  • Oil Types: Recommended fluids include mineral oils (RC 90220), environmentally friendly fluids (RC 90221), and HF fluids (HFA, HFB, HFC - check seal compatibility, typically FKM for HFD; RC 90223). Specify the fluid type when ordering.
  • Viscosity Range: The optimal operating viscosity range (at operating temperature) is 16 to 36 mm²/s. Absolute limits are:
    • Minimum: 10 mm²/s (short-term, max. case drain temp 90°C)
    • Maximum: 1000 mm²/s (short-term, cold start).
  • Selection: Select a viscosity grade (e.g., VG 46, VG 68) so that the viscosity at the operating temperature (typically tank temperature in open circuits) falls within the optimal range. Generally, opting for a higher viscosity grade is advised.
Q6: What are the fluid cleanliness requirements?
To ensure reliable operation and long service life, the oil cleanliness should be at least NAS 1638 Class 9 or ISO/DIS 4406 18/15.
Q7: Why does my pump get overheated?
Common causes for excessive heating include:
  • Internal Leakage: Excessive internal leakage within the pump components converts hydraulic energy to heat.
  • Mechanical Friction: Dry or semi-dry friction due to worn parts or inadequate lubrication generates heat.
  • Fluid Friction: Inadequate tank capacity or cooling, causing the system to overheat.
  • Clogged Return Line Filter: A blocked return filter creates high backpressure, leading to increased temperature.
  • Low Oil Level: Insufficient oil in the reservoir reduces cooling capacity.

Label:

Rexroth piston,

Pompa Piston Aksial,

Pompa piston listrik
