Product Details:
|
| Displacement (Vg Max): | 71 Cm³/rev | Series: | A4VSO Series 30 (swash Plate, Open Circuit) |
|---|---|---|---|
| Nominal Pressure: | 350 Bar (35 MPa) | Maximum Speed: | ≈ 2200 Rpm (size 71, Dependent On Suction Conditions) |
| Control: | EO1 – Electro-proportional Displacement Control (external Electric Command, Min. Pilot Pressure ~20 Bar) |

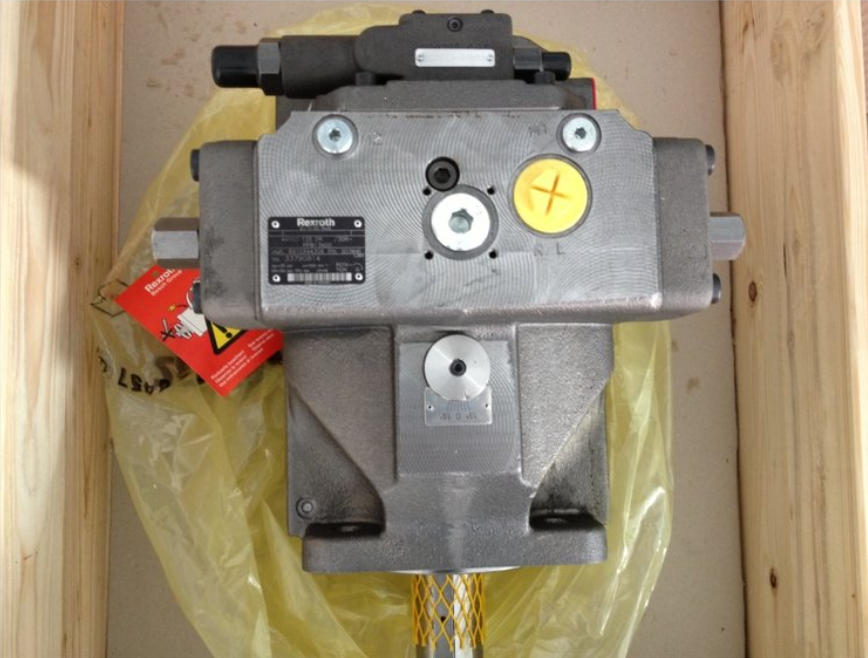

The A4VSO71EO1/30L-PPB13N00 is an axial piston variable displacement pump from the Rexroth A4VSO Series 30, manufactured in Germany, and engineered for open-circuit hydrostatic drives in both industrial hydraulic power units and mining equipment hydraulic systems.
It uses a swash plate design where output flow is proportional to drive speed and displacement, with stepless adjustment via swash plate angle. The EO1 control is an electro-proportional displacement control: an external analog signal (typically ±10 V, 0-10 V, or 4-20 mA via an external proportional amplifier) sets the swash plate angle and therefore the pump flow, enabling PLC- or DCS-based systems to command flow precisely without hydraulic pilot pressure.
Rated at 350 bar nominal / 400 bar peak, it is built for continuous 24/7 duty under shock loads, dust, and wide temperature swings typical of steel plants, mining loaders, and underground conveyors.
| Parameter | Specification |
|---|---|
| Model | A4VSO71EO1/30L-PPB13N00 |
| Series | A4VSO Series 30 (swash plate, open circuit) |
| Displacement (Vg max) | 71 cm³/rev |
| Nominal Pressure | 350 bar (35 MPa) |
| Peak Pressure | 400 bar (40 MPa) |
| Maximum Speed | ≈ 2200 rpm (size 71, dependent on suction conditions) |
| Flow @ 2200 rpm | ≈ 156 L/min (theoretical) |
| Flow @ 1500 rpm | ≈ 107 L/min (theoretical) |
| Power @ 350 bar / 2200 rpm | ≈ 91 kW |
| Power @ 350 bar / 1500 rpm | ≈ 62 kW |
| Torque @ 350 bar | ≈ 395 Nm |
| Rotation | L - Left-hand (viewed from shaft end) |
| Control | EO1 - Electro-proportional displacement control (external electric command, min. pilot pressure ~20 bar) |
| Shaft | P - DIN metric parallel keyed shaft (DIN 6885) |
| Seals | P - NBR with FKM shaft seal (standard for mineral oil HLP) |
| Mounting Flange | B - ISO 3019-2 metric 4-bolt |
| Ports | 13 - SAE B pressure + SAE S suction, side 90° offset, metric bolts |
| Through-drive | N00 - No auxiliary pump, no through-drive shaft |
| Fluid | Mineral oil (HLP); HFC permissible under reduced data |
| Cleanliness | ISO 4406 18/16/13 / NAS 1638 Class 9 recommended |
| Case Drain | 2 ports, route to tank, backpressure ≤ 2 bar |
| Weight (approx.) | ≈ 53 kg |
Mining loaders, LHD units, crushers, conveyor tensioning systems require PLC-commanded variable flow for boom, bucket, steer, and brake circuits → EO1 lets the machine controller schedule flow electrically.
Steel plant rolling stands, ceramic presses, forging presses benefit from precise electric flow ramping to reduce pressure spikes and heat generation.
Left-hand rotation (L) matches specific gearbox inputs on popular industrial drivelines.
German-origin reliability reduces unplanned downtime in continuous-process and underground environments.
