A4VSO71EO2/30L-PPB25N00 Rexroth axial piston pump – Made in Germany

The A4VSO71EO2/30L-PPB25N00 is an axial piston variable displacement pump from the Rexroth A4VSO Series 30, manufactured in Germany for open-circuit hydrostatic drives. It uses a swash plate design where output flow is proportional to drive speed and displacement, with stepless adjustment via swash plate angle.

The EO2 control is an electro-proportional displacement control: an external analog signal (typically ±10 V or 4-20 mA via a proportional amplifier with LVDT feedback) sets the swash plate angle and therefore the pump flow, making it suitable for PLC- or CNC-controlled hydraulic systems. Rated at 350 bar nominal / 400 bar peak, it serves continuous-duty automation, test bench, and process hydraulic applications.

• A4VSO - Axial piston variable pump, open circuit, swash plate
• 71 - Nominal displacement 71 cm³/rev
• EO2 - Electro-proportional displacement control, high pilot pressure type (external signal sets flow)
• 30 - Series 30 construction
• L - Left-hand rotation
• PPB25N00 - P: NBR+FKM seals; P: parallel key shaft; B: ISO 4-bolt flange; 25: SAE side-offset ports with B1 plugged; N00: no through-drive / no aux pump

• Made in Germany - Rexroth German production; original label, test sheet, and COO available on request
• EO2 Remote Flow Control - Flow set by ±10 V / 4-20 mA command; no mechanical lever or hydraulic pilot required for basic proportionality
• Swash Plate Variable Displacement - Infinitely variable flow, visual swivel angle indicator included
• 350 bar Continuous Duty - Hardened cylinder block, heavy-duty bearings, low-noise port geometry
• Automation-Ready - Integrates with PLC, CNC, and Industry 4.0 hydraulic skids; fast response via proportional solenoid
• Modular A4VSO Platform - Same mounting envelope as DR/DFR/LR controls for easy retrofit
• Through-Drive Ready Body (N00) - Base variant without tandem shaft; tandem versions exist under other suffixes

• Automated Test Benches - Calibration rigs, component endurance test stands, servo-hydraulic labs
• CNC & Special Machines - Flow-programmed production cells, press feeding systems, clamping cycles
• Process Industry - Remote-setpoint hydraulic power units, dosing systems, mixer drives
• Metallurgy & Ceramics - Ceramic presses, roller table hydraulics, auxiliary pump stations
• Mining & Tunnelling - Crusher control skids, TBM auxiliary circuits requiring electronic flow command
• Marine & Ports - Deck machinery power packs with PLC flow scheduling

• Origin: Sourced from Rexroth Germany production channels; pre-shipment pressure/flow/leak test performed

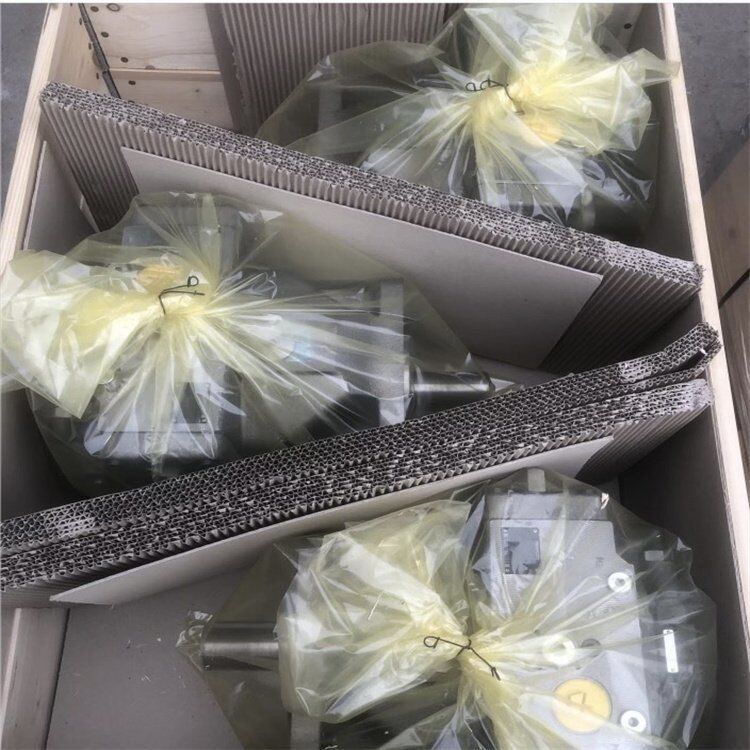

• Export Packaging: Fumigation-free wooden crate, VCI anti-rust film, corner protectors
• Documentation: Commercial Invoice, Packing List, Certificate of Origin, factory test report
• Warranty: 12 months against manufacturing defects

We export genuine A4VSO71EO2/30L-PPB25N00 - Made in Germany worldwide. Active sales/export coverage includes:

• Europe: Germany, France, Italy, Spain, United Kingdom, Netherlands, Belgium, Switzerland, Austria, Poland, Czech Republic, Turkey, Sweden, Finland
• Asia-Pacific: China, India, Japan, South Korea, Malaysia, Thailand, Vietnam, Indonesia, Singapore, Australia, New Zealand
• Americas: United States, Canada, Mexico, Brazil, Argentina, Chile, Colombia
• Middle East: UAE, Saudi Arabia, Qatar, Kuwait, Oman, Israel
• Africa: South Africa, Egypt, Nigeria, Kenya, Morocco

Incoterms: EXW / FOB / CIF / DDP

Freight: DHL/FedEx/UPS for single-unit urgent orders; LCL/FCL sea for project batches
