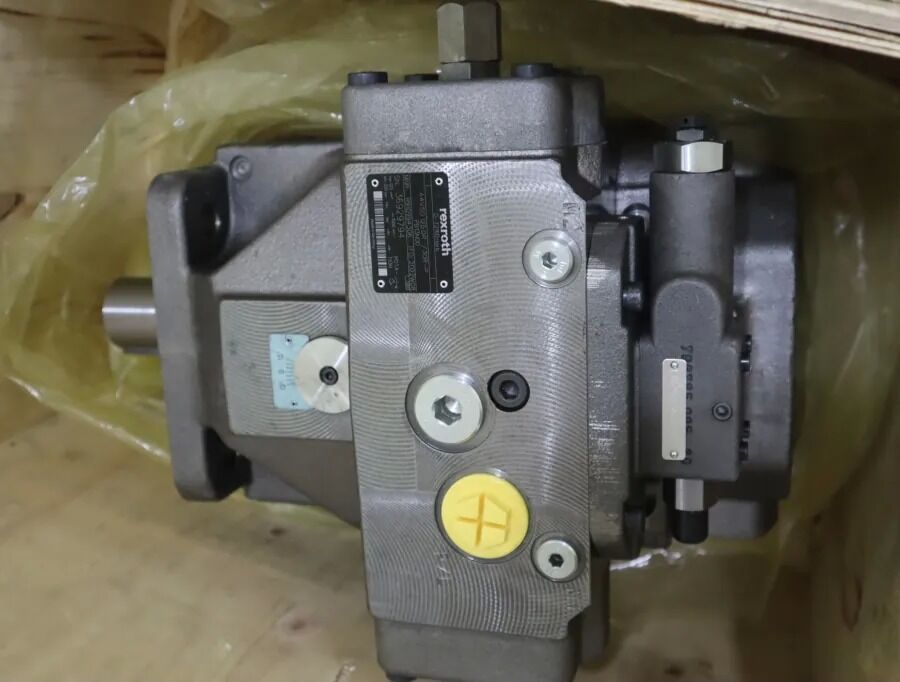

A4VSO125DR/30L-PPB13N00 Rexroth Axial Piston Pump
Product Overview
The A4VSO125DR/30L-PPB13N00 is an axial piston variable displacement pump from the Rexroth A4VSO Series 30, manufactured in Germany for open-circuit hydrostatic drives. It uses a swash plate design where output flow is proportional to drive speed and displacement, with stepless adjustment via swash plate angle. The DR control provides constant-pressure regulation: when system pressure reaches the setpoint, the swash plate angle reduces automatically to maintain pressure with minimal flow, cutting energy loss during hold cycles. Rated at 350 bar nominal / 400 bar peak, it is built for continuous duty in steel, mining, press, and marine hydraulic systems.
Technical Specifications (Size 125)
| Parameter |
Value |
| Model |
A4VSO125DR/30L-PPB13N00 |
| Series |
A4VSO Series 30 |
| Displacement (Vg max) |
125 cm³/rev (125 mL/rev) |
| Nominal Pressure |
350 bar (35 MPa) |
| Peak Pressure |
400 bar (40 MPa) |
| Max. Speed |
≈ 2600 rpm (size 125, dependent on suction) |
| Flow @ 1800 rpm |
≈ 225 L/min |
| Power @ 350 bar / 1800 rpm |
≈ 131 kW |
| Torque @ 350 bar |
≈ 696 Nm |
| Rotation |
Left-hand (L, viewed from shaft end) |
| Control |
DR - Constant pressure control |
| Shaft |
P - Parallel keyed metric shaft (DIN 6885) |
| Seals |
P - NBR with FKM shaft seal (standard) |
| Mounting Flange |
B - ISO 4-bolt metric |
| Ports |
13 - SAE B/S ports, side 90° offset, metric bolts |
| Through-drive |
N00 - Without through-drive / no aux pump |
| Fluid |
Mineral oil (HLP), HFC (reduced data) |
| Cleanliness |
NAS 9 recommended |
| Weight (approx.) |
≈ 87-88 kg |
Model Code Breakdown
A4VSO - Axial piston variable pump, open circuit, swash plate
125 - Nominal displacement 125 cm³/rev
DR - Constant pressure control (pressure compensator)
30 - Series 30 construction
L - Left-hand rotation
PPB13N00 - P: NBR seals; P: parallel key shaft; B: ISO 4-bolt flange; 13: SAE side-offset ports; N00: no through-drive, no auxiliary pump
Key Features
- Made in Germany - Rexroth German production, original packaging and test documentation available
- DR Constant-Pressure Control - Auto-reduces displacement at set pressure; ideal for clamping, holding, and press cycles
- Swash Plate Variable Displacement - Flow infinitely adjustable; visual swivel angle indicator included
- 350 bar Continuous Duty - High-pressure housing, hardened cylinder block, heavy-duty bearings
- Low Noise & Good Suction - Optimized port geometry for stable inlet conditions
- Modular A4VSO Platform - Same footprint across controls (DR / DFR / LR / EO2) for easy retrofit
- NBR+FKM Seal Standard - P-code sealing for mineral oil; FKM shaft seal for extended life
Typical Applications
- Metallurgy & Steel - Rolling stands, continuous casters, hydraulic bolt tensioners
- Metal Forming - Forging presses, straightening presses, die-clamping systems
- Ceramics & Refractories - Ceramic powder presses, brick presses
- Mining & Tunnelling - Crusher hydraulics, roof-support power packs, TBM aux circuits
- Marine & Offshore - Winch power units, hatch covers, steering gear supplies
- Industrial Power Packs - Test benches, injection molding machines, rubber vulcanizers
Quality Assurance & Packaging
Origin: Sourced from Rexroth Germany production channels; COO and test sheet available on request.
Pre-shipment Test: Pressure hold, flow sweep, leak check at set DR cut-off.
Export Packaging: Fumigation-free wooden case, VCI anti-rust film, corner protectors.
Warranty: 12 months against manufacturing defect.
Countries Available for Sale
We export genuine A4VSO125DR/30L-PPB13N00 - Made in Germany worldwide. Active sales/export coverage includes:
- Europe: Germany, France, Italy, Spain, United Kingdom, Netherlands, Belgium, Switzerland, Austria, Poland, Czech Republic, Turkey, Sweden, Finland
- Asia-Pacific: China, India, Japan, South Korea, Malaysia, Thailand, Vietnam, Indonesia, Singapore, Australia, New Zealand
- Americas: United States, Canada, Mexico, Brazil, Argentina, Chile, Colombia
- Middle East: UAE, Saudi Arabia, Qatar, Kuwait, Oman, Israel
- Africa: South Africa, Egypt, Nigeria, Kenya, Morocco
Incoterms: EXW / FOB / CIF / DDP.
Freight: DHL/FedEx/UPS for urgent single units; LCL/FCL sea for project batches. Full export docs (CI, PL, COO) provided.
Frequently Asked Questions
Q: Is the A4VSO125DR/30L-PPB13N00 made in Germany?
A: Yes. This configuration is produced in Rexroth Germany facilities. We provide original label photos, test report, and certificate of origin on request.
Q: What does DR control do vs LR2G?
A: DR is constant-pressure control - displacement drops to near zero at set pressure. LR2G is hyperbolic constant-power control. DR is preferred for clamp/hold; LR2G for power-limited prime movers.
Q: Can I replace an old A4VSO125DR/30R- … with this L-rotation unit?
A: Only if your motor/drive train requires left-hand rotation. R and L shafts rotate opposite; mixing them will reverse pump direction. Confirm rotation before ordering.
Q: Does PPB13N00 fit standard SAE hoses?
A: Yes. Code 13 means SAE pressure (B) and suction (S) flanges on side, 90° offset, with metric mounting bolts. Adapters to NPT/ORFS are common but not built-in.
Q: Lead time?
A: Stock units 1-3 working days; non-stock 1-2 weeks depending on quantity.
