A4VSO180EO2/30L-PPB13N00 Variable displacement piston pump from Rexroth, Germany

A4VSO180EO2/30L-PPB13N00 Variable displacement piston pump from Rexroth, Germany
A4VSO180EO2/30L-PPB13N00 Variable displacement piston pump from Rexroth, Germany

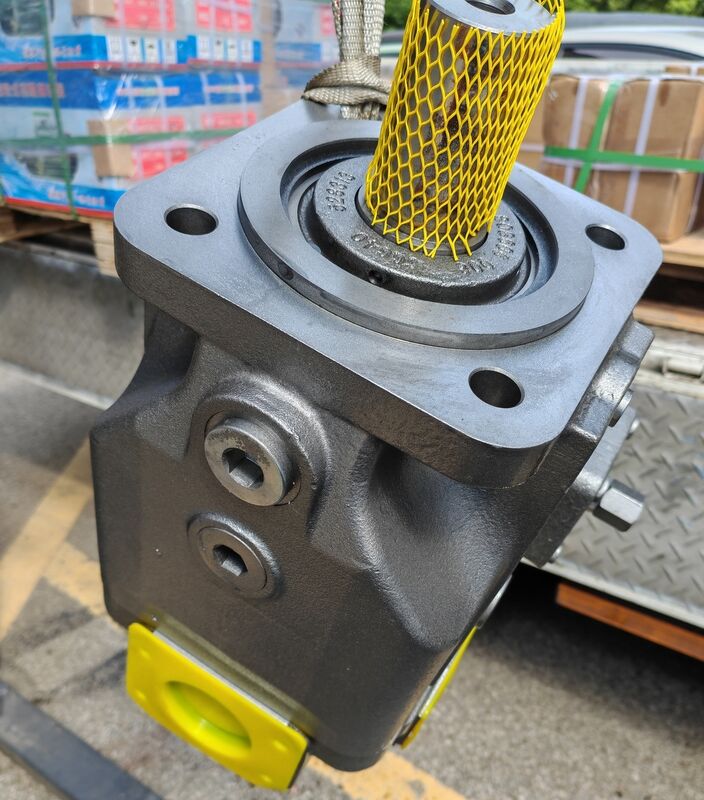

Large Image :  A4VSO180EO2/30L-PPB13N00 Variable displacement piston pump from Rexroth, Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: A4VSO180EO2/30L-PPB13N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

A4VSO180EO2/30L-PPB13N00 Variable displacement piston pump from Rexroth, Germany

Description
Control Type: EO2 – Electro-Proportional Displacement: 180 Cm³/r
Origin: Germany Model: A4VSO180EO2/30L-PPB13N00
Series: A4VSO Open Circuit Axial Piston Pump

A4VSO180EO2/30L-PPB13N00 Variable Displacement Piston Pump
The Rexroth A4VSO180EO2/30L-PPB13N00 is a genuine German-produced open-circuit axial piston variable pump from the proven A4VSO series. It features EO2 electro-proportional displacement control, allowing pump flow to be set remotely via an analog electrical signal (±10 V or 4-20 mA) from a PLC or CNC controller.
With a displacement of 180 cm³/r and PPB13 SAE flange & port configuration (compact smaller SAE porting vs. PPB25), this model is ideal for space-limited hydraulic power units and automated machinery requiring precise, programmable flow without manual adjustment. It is rated for 350 bar continuous / 400 bar peak operation.
Technical Specifications
Parameter Value
Manufacturer Rexroth, Made in Germany
Series A4VSO - Open Circuit Swashplate Axial Piston Variable Pump
Model Code A4VSO180EO2/30L-PPB13N00
Geometric Displacement (Vg max) 180 cm³/r
Nominal Pressure 350 bar
Peak Pressure 400 bar
Maximum Speed (nnom) Approx. 1800 rpm
Theoretical Flow @1500 rpm Approx. 270 L/min
Theoretical Flow @1800 rpm Approx. 324 L/min
Drive Power @350 bar & 1500 rpm Approx. 158 kW
Control Type EO2 - Electro-Proportional Displacement Control (electric signal sets swashplate angle / flow)
Rotation L - Left-hand (viewed from shaft end)
Flange & Port PPB13 - SAE Flange & SAE Port (compact porting)
Through Drive N00 - Without Through Drive (tandem-ready variants available on other A4VSO sizes)
Hydraulic Fluid Mineral Oil HLP, HFC Water-Glycol Permissible (Derated)
Approximate Weight 102-103 kg
Rexroth A4VSO series hydraulic pump
EO2 Electro-Proportional Control - Key Advantage
Unlike pressure-compensated (DR) or pilot-controlled (DFR) pumps, EO2 enables electric flow command:
  • Pump displacement — and therefore flow — follows a linear analog input signal
  • Enables fully automated, software-controlled hydraulic systems
  • Eliminates manual flow-setting valves in many applications
  • Fast-response proportional solenoid for dynamic processes
  • Compatible with external pressure limiting or cut-off for system safety
Typical Applications
  • Automated production lines with PLC-controlled hydraulic cycles
  • Hydraulic test benches & calibration rigs requiring programmable flow
  • Material testing machines (tensile/compression) with servo-hydraulic actuation
  • Packaging & converting machinery with variable flow demand
  • R&D laboratory hydraulic systems and university engineering labs
  • Retrofit projects upgrading manual/displacement-controlled pumps to electronic control
Global Sales Countries / Regions
Distributed through Rexroth's authorized global dealer network, including:
  • Europe: Germany, Italy, France, UK, Spain, Netherlands, Austria, Switzerland, Poland
  • Asia-Pacific: China, Japan, South Korea, India, Taiwan, Thailand, Malaysia, Vietnam, Australia
  • Americas: USA, Canada, Mexico, Brazil, Chile (industrial regions)
  • Middle East & Africa: UAE, Saudi Arabia, Turkey, South Africa
Frequently Asked Questions
Q1: What is the difference between PPB13 and PPB25 on A4VSO180 pumps?
A1: Both use SAE flanges and ports. PPB13 has the smaller SAE port size for compact manifold integration; PPB25 uses larger SAE ports for higher-flow piping. Pump displacement, pressure and flow performance are identical — select based on your manifold/hose standard.
Q2: Does EO2 control require additional electronic components?
A2: Yes. An external proportional amplifier (e.g. Rexroth VT-series) or a PLC analog output card is required to supply and monitor the command signal to the EO2 solenoid. Some versions include onboard electronics — verify with your supplier.
Q3: Can this pump be used in a closed hydrostatic transmission?
A3: No. The A4VSO series is for open circuit (open loop) only. For closed-loop track or wheel motor drives, use the A4VG or A4VM series.
