A4VSO250DR/30L-PPB13N00 Mining piston pump, industrial hydraulic pump, German Rexroth

A4VSO250DR/30L-PPB13N00 Mining piston pump, industrial hydraulic pump, German Rexroth
A4VSO250DR/30L-PPB13N00 Mining piston pump, industrial hydraulic pump, German Rexroth

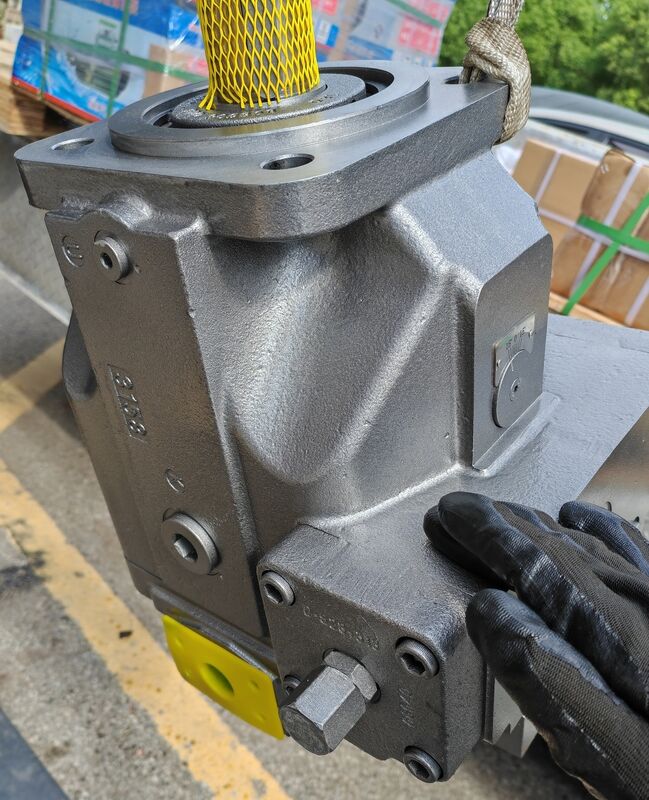

Large Image :  A4VSO250DR/30L-PPB13N00 Mining piston pump, industrial hydraulic pump, German Rexroth

Product Details:
Place of Origin: German
Brand Name: Rexroth
Certification: ISO
Model Number: A4VSO250DR/30L-PPB13N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,D/P,T/T,D/A,L/C
Supply Ability: 100
Contact Now

A4VSO250DR/30L-PPB13N00 Mining piston pump, industrial hydraulic pump, German Rexroth

Description
Brand: Rexroth Series: A4VSO Open Circuit Axial Piston Pump
Displacement: 250 Cm³/r Control: DR (Constant Pressure)
Port Config: PPB13 SAE

A4VSO250DR/30L-PPB13N00 Mining Piston Pump, Industrial Hydraulic Pump, German Rexroth
Product Introduction

The Rexroth A4VSO250DR/30L-PPB13N00 is a genuine German-made A4VSO series open-circuit axial piston variable pump with 250 cm³/r displacement and DR constant pressure control. Designed for continuous heavy-duty service, it is widely specified in mining hydraulic power units, mineral processing plants, crusher main drives, and underground support systems.

The DR control maintains a preset system pressure by reducing displacement toward zero at setpoint, minimizing energy loss and heat generation in constant-pressure circuits. Port configuration is PPB13 (SAE smaller port/flange vs PPB25) — commonly selected for compact manifold integration in mining skids.

Technical Specifications
Parameter Value
Manufacturer Rexroth, Made in Germany
Series A4VSO - Open Circuit Swashplate Axial Piston Variable Pump
Model Code A4VSO250DR/30L-PPB13N00
Nominal Displacement (Vg max) 250 cm³/r
Nominal Pressure 350 bar (35 MPa)
Peak Pressure 400 bar (40 MPa)
Maximum Speed (nnom) Approx. 1500 rpm
Theoretical Flow @1500 rpm Approx. 375 L/min
Drive Power @350 bar & 1500 rpm Approx. 219 kW
Control Type DR - Constant Pressure Control (Pressure Compensated)
Rotation L - Left-hand (viewed from shaft end)
Flange & Port PPB13 - SAE Flange & Port (smaller than PPB25)
Through Drive N00 - Without Through Drive (tandem variants available on other A4VSO250 codes)
Sealing / Fluid NBR standard - Mineral Oil HLP, HFC water-glycol acceptable (derated)
Approx. Weight 184 kg
Rexroth A4VSO250 series hydraulic pump
A4VSO250DRG/30R-FKD75U99E
A4VSO250DRG/30R-PKD63K21E
A4VSO250DRG/30R-PKD63K22E
A4VSO250DRG/30R-PKD63K22ESO580
A4VSO250DRG/30R-PKD63K22ESO580
A4VSO250DRG/30R-PKD63K22-SO580
A4VSO250DRG/30R-PKD63N00E
A4VSO250DRG/30R-PKD63N00E
A4VSO250DRG/30R-PKD63N00-SO91
A4VSO250DRG/30R-PKD63N00-SO91
A4VSO250DRG/30R-PPB13N00
A4VSO250DRG/30R-PPB13N00E
A4VSO250DRG/30R-PPB13N00E
A4VSO250DRG/30R-PPB13N00E
A4VSO250DRG/30R-PPB13N00E
A4VSO250DRG/30R-PPB13N00E
A4VSO250DRG/30R-PPB25N00
A4VSO250DRG/30R-PSD63K24-SO859
A4VSO250DRG/30R-VKD63N00
A4VSO250DRG/30R-VKD63N00
A4VSO250DRG/30R-VKD75U99E-SO206
A4VSO250DRG/30R-VSD75U18E
A4VSO250DRG/30R-VSD75U18E
A4VSO250DRG/30R-VSD75U99E
A4VSO250DRG/30R-VSD75U99E
A4VSO250DRGN/30R-PKD63N00E
A4VSO250DRGNT/30R-PKD63N00E
A4VSO250DRGNT/30R-PSD63N00E
A4VSO250DRN/30R-PKD63N00E
A4VSO250DS1/30W-VKD63T000N
A4VSO250DS1/30W-VKD63T020NE
A4VSO250EM1036/30R-PPB13N00-SO221
A4VSO250EO1/30R-FKD63K08E
A4VSO250EO1/30R-PKD63K02
A4VSO250EO1/30R-PKD63K02E
A4VSO250EO1/30R-PKD63K03
A4VSO250EO1/30R-PKD63K08
A4VSO250EO1/30R-PKD63K08E
A4VSO250EO1/30R-PKD63N00
A4VSO250EO1/30R-PKD63N00E
A4VSO250EO1/30R-PKD75K24E
A4VSO250EO1/30R-PKD75U99E
A4VSO250EO1/30R-VKD63N00E
A4VSO250EO2/30R-FKD63K08E
A4VSO250EO2/30R-PZB13N00
A4VSO250EO2/30R-VKD63K16E
A4VSO250EO2/30R-VKD63K17E
A4VSO250EO2/30R-VKD63K18
A4VSO250EO2/30R-VKD63N00
A4VSO250EO2/30R-VSD63K16
A4VSO250FRG/30R-PKD63N00
A4VSO250FRG/30R-PKD63N00E
A4VSO250FRG/30R-PKD63N00E
A4VSO250HD1/30R-PKD63K57E
A4VSO250HD1/30R-PKD63N00
A4VSO250HD1BP/30R-PKD63N00
A4VSO250HD1BT/30R-PKD63K22
A4VSO250HD1BT/30R-PKD63K22E
A4VSO250HD1BT/30R-PKD63K22E
Key Features
  • 250 cm³/r large displacement for high-flow mining & industrial HPUs
  • DR constant pressure control — auto destrokes at set pressure, reduces overflow loss
  • Proven 350/400 bar pressure rating for harsh underground and surface mining environments
  • PPB13 SAE porting for compact manifold mounting on mining skids
  • Low pulsation, low noise, excellent suction even with long suction lines
  • Modular A4VSO platform — interchangeable controls across sizes 40-500
  • Case drain must be connected above tank oil level; housing pre-fill required before start
Typical Applications
  • Mining & Mineral Processing — crusher hydraulics, conveyor tensioning, thickener rake drives, flotation cell clamping
  • Underground Coal / Metal Mines — roof support (shield) pump stations, mine winder auxiliary hydraulics
  • Tunnel Boring Machines (TBM) — main hydraulic power pack pressure supply
  • Heavy Industrial Plants — blast furnace hydraulic stations, continuous caster clamping circuits
  • Quarry & Aggregate — jaw/cone crusher setting & clamp systems
Global Sales / Service Countries

Supplied through Rexroth's global distribution network, including:

  • Europe: Germany, Poland, Czech Republic, Italy, France, UK, Spain
  • CIS & Eastern Europe: Russia (subject to regulations), Ukraine, Kazakhstan
  • Asia-Pacific: China, Australia, India, Indonesia, Japan, South Korea, Vietnam, Thailand
  • Americas: USA, Canada, Mexico, Chile (mining region), Brazil
  • Middle East & Africa: South Africa (mining sector), UAE, Turkey
Frequently Asked Questions
Q1: What is the difference between PPB13 and PPB25 on A4VSO250 pumps?
A: Both use SAE flanges and ports, but PPB13 has the smaller SAE port/flange size suited for compact manifold blocks, while PPB25 uses larger SAE ports for higher flow plumbing. Pump performance (displacement, pressure, flow) is identical — selection depends on your hydraulic manifold/standard.
Q2: Is DR control suitable for a mining crusher hydraulic power unit?
A: Yes. DR constant pressure control is common on crusher HPUs and clamping circuits where system pressure must be held steady with minimal flow when idle — the pump strokes near-zero, saving energy and reducing heat.
Q3: Can this pump be used in a closed hydrostatic transmission?
A: No. A4VSO is an open-circuit pump. Closed-circuit (track drive, wheel motor) applications require A4VG or A4VM series.
