A4VSO500EO2/30L-PPB13N00 Rexroth high displacement industrial piston pump made in Germany

A4VSO500EO2/30L-PPB13N00 Rexroth high displacement industrial piston pump made in Germany
A4VSO500EO2/30L-PPB13N00 Rexroth high displacement industrial piston pump made in Germany

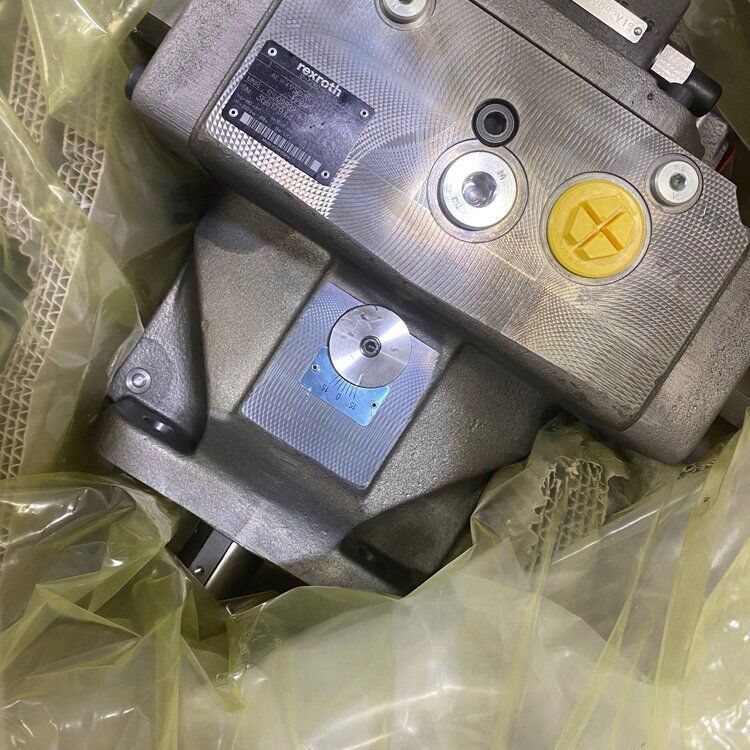

Large Image :  A4VSO500EO2/30L-PPB13N00 Rexroth high displacement industrial piston pump made in Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: A4VSO500EO2/30L-PPB13N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,L/C,D/A
Supply Ability: 100
Contact Now

A4VSO500EO2/30L-PPB13N00 Rexroth high displacement industrial piston pump made in Germany

Description
Brand​: Rexroth Product Type​: Open Circuit Axial Piston Variable Pump
Nominal Displacement​: 500 Cm³/r Control Type​: Electro-Proportional (EO2)
Country Of Origin​: Germany

A4VSO500EO2/30L-PPB13N00 Rexroth High Displacement Industrial Piston Pump
Product Specifications
Series Rexroth A4VSO open circuit swashplate axial piston variable pump
Model A4VSO500EO2/30L-PPB13N00 (500 = displacement 500 cm³/r, EO2 = electro-proportional control, 30 = series 30, L = left-hand rotation/view from shaft end, PPB13 = SAE flange & port, N00 = no through drive)
Geometric Displacement Vg max 500 cm³/r
Nominal Pressure / Peak Pressure 350 bar / 400 bar
Max Speed nnom Approx. 1320 rpm (rated @1500 rpm with derating or sufficient inlet pressure)
Theoretical Flow @1500 rpm ≈ 750 L/min
Required Drive Power ≈ 385 kW @ 350 bar & rated speed
Torque @350 bar & Vg max ≈ 2783 Nm
Rotation / Mounting Left-hand rotation per code "L", ISO flange mounting, SAE ports (PPB13)
Control Type EO2 -- Electro-proportional control (electric signal sets swashplate angle / flow proportionally)
Hydraulic Fluid Mineral oil (HLP), HFC water-glycol permissible on selected versions (derated)
Approx. Weight ≈ 300-320 kg
Rexroth A4VSO industrial piston pump unit
Related Models
A4VSO355DS1/30W-PKD63T020NE
A4VSO355DS1/30W-PRD63T031N
A4VSO355EO2/30R-PKD63K16
A4VSO355EO2/30R-PKD63K52
A4VSO355EO2/30R-PKD63K52-SO30
A4VSO355EO2/30R-PKD75K02E
A4VSO355EO2/30R-VKD75K68E
A4VSO355HD1GBP/30R-PKD63N00
A4VSO355HD1U/30R-PKD63N00
A4VSO355HD1U/30R-PKD63N00E
A4VSO355HS/30R-PKD63N00E
A4VSO355HSE/30R+A4VSO71HSE/10RE
A4VSO355HSE/30R-PKD63N00E
A4VSO355HSE/30R-PPB13N00ESO2
A4VSO355HSE/30R-VPB25U33E
A4VSO355LR2DF/30R-PKD63N00
A4VSO355LR2DF/30R-PRD63N00E
A4VSO355LR2DF/30R-PRD63N00E
A4VSO355LR2DNT/30R-PKD63N00E
A4VSO355LR2DNT/30R-PKD63N00E
A4VSO355LR2G/30L-VRD75U18E
A4VSO355LR2G/30L-VRD75U99E
A4VSO355LR2G/30R-PKD63N00
A4VSO355LR2G/30R-PKD63N00E
A4VSO355LR2G/30R-PPB13N00E
A4VSO355LR2G/30R-PPB13N00E
A4VSO355LR2G/30R-PPB13N00E
A4VSO355LR2G/30R-PRD63K99E
A4VSO355LR2N/30R-PKD63K15
A4VSO355LR2N/30R-PPB13K04E
A4VSO40DFR/10L-PKD63K05
A4VSO40DFR/10R-PKD63K03
A4VSO40DFR/10R-PKD63K15
A4VSO40DFR/10R-PKD63N00
A4VSO40DFR/10R-PKD63N00E
A4VSO40DFR/10X-PKD63N00
A4VSO40DFR/10X-PKD63N00-SO62
A4VSO40DP/10R-PKD63N00
A4VSO40DP/10R-PKD63N00E
A4VSO40DP/10R-PKD63N00ES1406
A4VSO40DR/10R-PKD63K15E
A4VSO40DR/10R-PKD63K57
A4VSO40DR/10R-PKD63N00E
A4VSO40DR/10R-PKD63N00E
A4VSO40DR/10R-PKD63N00E
A4VSO40DR/10R-PPB13K25
A4VSO40DR/10R-PPB13K25E
Global Distribution

Distributed globally through Rexroth's authorized dealer network. Main markets include:

  • Europe: Germany, Italy, France, UK, Spain, etc.
  • Asia: China, Japan, South Korea, India, Southeast Asia (Thailand, Malaysia, Vietnam, etc.)
  • Americas: USA, Canada, Mexico, Brazil
  • Others: Australia, Middle East industrial countries
Frequently Asked Questions
Q1: What does EO2 control mean on this pump?
EO2 is electro-proportional control. The pump displacement (and thus flow) is adjusted proportionally by an electrical control signal (typically ±10 V or 4-20 mA) via a proportional solenoid—suitable for automated, precise flow control.
Q2: Can this pump be used in a closed hydraulic circuit?
No. The A4VSO series is designed exclusively for open circuit (open loop) systems. For closed circuits, use A4VG or A4VM series closed-circuit pumps.
Q3: What should be checked before first startup?
Fill the pump housing with clean hydraulic oil through the case drain port to bleed air. Ensure the case drain line discharges above the tank oil level, and verify motor rotation direction matches the pump's specified "L" (left-hand) rotation.
