A4VSO250EO1/30L-PPB25N00 Excavator parts, loader motor, Rexroth piston pump, Germany

A4VSO250EO1/30L-PPB25N00 Excavator parts, loader motor, Rexroth piston pump, Germany
A4VSO250EO1/30L-PPB25N00 Excavator parts, loader motor, Rexroth piston pump, Germany

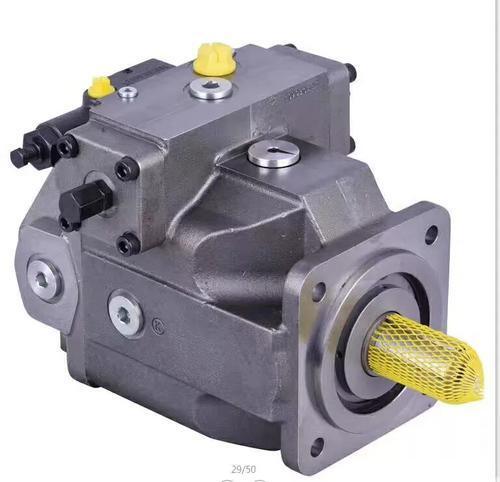

Large Image :  A4VSO250EO1/30L-PPB25N00 Excavator parts, loader motor, Rexroth piston pump, Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: A4VSO250EO1/30L-PPB25N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

A4VSO250EO1/30L-PPB25N00 Excavator parts, loader motor, Rexroth piston pump, Germany

Description
Salable / Supply Region​: Global — Available Via Rexroth Authorized Industrial Hydraulics Distributors Package / Condition​: Original Factory Wooden Crate, New Unused, German Import
Net Weight (Approx.)​: 148 Kg Recommended Viscosity​: 16 – 100 Mm²/s (ISO VG 46 @ Operating Temp)
Case Drain​: Two Case Drain Ports — Must Be Routed To Tank < 2 Bar Backpressure

A4VSO250EO1/30L-PPB25N00 Excavator parts, loader motor, Rexroth piston pump, Germany
Product Specifications
Model A4VSO250EO1/30L-PPB25N00
Brand / Origin Rexroth / Germany
Type Swashplate-type axial piston variable pump (Open circuit)
Displacement (Vg max) 250 cm³/rev
Control Type EO1 -- Electro-proportional displacement control (pump flow ∝ input command signal; min. pilot pressure ~20 bar)
Nominal Pressure 350 bar (35 MPa) Continuous
Peak Pressure 400 bar (40 MPa) Intermittent
Max. Speed (nₘₐₓ) 1500 rpm @ Vg max
Theoretical Flow @ 1500 rpm ≈ 375 L/min (n × Vg ÷ 1000)
Rotation Direction L -- Counter-clockwise (viewed from shaft end)
Mounting Flange ISO 3019-2 / Series 30, 4-bolt
Through-drive Yes (PPB = through-drive capable; N00 = no auxiliary pump fitted)
Port Configuration PPB25 -- SAE flange side ports (P & T 90° apart), second pressure port B1 opposite B plugged with SAE flange blank
Seal Material FKM (Viton, standard for mineral oil HLP)
Case Drain Two case drain ports -- must be routed to tank < 2 bar backpressure
Recommended Viscosity 16 - 100 mm²/s (ISO VG 46 @ operating temp)
Cleanliness Requirement ISO 4406 18/16/13 (NAS 1638 Class 8-9)
Net Weight (Approx.) ≈ 148 kg (dry, excl. coupling)
Package / Condition Original factory wooden crate, new unused, German import
Salable / Supply Region Global -- Available via Rexroth authorized industrial hydraulics distributors
Related Models
A4VSO250DRG/30R-PKD63N00-SO91
A4VSO250DRG/30R-PPB13N00
A4VSO250DRG/30R-PPB13N00E
A4VSO250DRG/30R-PPB25N00
A4VSO250DRG/30R-PSD63K24-SO859
A4VSO250DRG/30R-VKD63N00
A4VSO250DRG/30R-VKD75U99E-SO206
A4VSO250DRG/30R-VSD75U18E
A4VSO250DRG/30R-VSD75U99E
A4VSO250DRGN/30R-PKD63N00E
A4VSO250DRGNT/30R-PKD63N00E
A4VSO250DRGNT/30R-PSD63N00E
A4VSO250DRN/30R-PKD63N00E
A4VSO250DS1/30W-VKD63T000N
A4VSO250DS1/30W-VKD63T020NE
A4VSO250EM1036/30R-PPB13N00-SO221
A4VSO250EO1/30R-FKD63K08E
A4VSO250EO1/30R-PKD63K02
A4VSO250EO1/30R-PKD63K02E
A4VSO250EO1/30R-PKD63K03
A4VSO250EO1/30R-PKD63K08
A4VSO250EO1/30R-PKD63K08E
A4VSO250EO1/30R-PKD63N00
A4VSO250EO1/30R-PKD63N00E
A4VSO250EO1/30R-PKD75K24E
A4VSO250EO1/30R-PKD75U99E
A4VSO250EO1/30R-VKD63N00E
A4VSO250EO2/30R-FKD63K08E
A4VSO250EO2/30R-PZB13N00
A4VSO250EO2/30R-VKD63K16E
A4VSO250EO2/30R-VKD63K17E
A4VSO250EO2/30R-VKD63K18
A4VSO250EO2/30R-VKD63N00
A4VSO250EO2/30R-VSD63K16
Model Code Breakdown
  • A4VSO -- Axial piston variable pump, open circuit
  • 250 -- Displacement 250 cm³/rev
  • EO1 -- Electro-proportional displacement control (low pilot pressure type, min. ~20 bar)
  • 30 -- Design Series 30
  • L -- Counter-clockwise rotation (viewed from shaft end)
  • PPB25N00 -- ISO flange w/ through-drive (PP), SAE side ports + second pressure port B1 plugged (B25), no auxiliary pump (N00)
Typical Application Scenarios

Although sometimes listed alongside excavator/loader parts in aftermarket catalogs, the A4VSO series is an industrial open-circuit pump and is primarily used in:

  • Industrial Hydraulic Power Units (HPU) -- Centralized pump stations supplying multiple press or machine circuits with electronically controlled flow
  • Hydraulic Presses -- For programmable ram speed control via EO1 + external proportional amplifier
  • Plastic Injection Molding Machines -- As the main or auxiliary pump in high-precision flow control loops
  • Die-Casting / Forging Machinery -- Where remote flow adjustment and load-adaptive operation are required
  • Steel & Rolling Mill Auxiliaries -- Clamping, balancing, or lubrication systems needing variable flow
  • Marine / Offshore Deck Equipment -- Winch or crane power packs (open circuit, not travel drives)
  • Test Benches -- Calibrated flow generation for component testing
Note: Mobile excavators and wheel loaders typically use A4VG (closed circuit), A11VO (axial open), or A2FO (fixed displacement) as main pumps. A4VSO is not a direct drop-in replacement for excavator main pumps unless the machine was custom-engineered with an open-circuit industrial HPU.
Frequently Asked Questions
What does EO1 (electro-proportional displacement) control do?
EO1 varies the pump's swash plate angle -- and therefore output flow -- in proportion to an external electrical command signal (typically ±10 V, 4-20 mA, or PWM via an external amplifier). The pump has an onboard LVDT for position feedback. EO1 provides no pressure limiting; system pressure is load-determined. A separate relief valve is mandatory.
What is the difference between EO1 and EO2?
  • EO1: Min. pilot pressure ~20 bar (suitable for Size 40-250)
  • EO2: Min. pilot pressure ~50-100 bar (typically for Size 355/500+ or high stiffness requirement)
For A4VSO250, EO1 is the standard electro-proportional option.
Can I mount a second pump on the back?
Yes. The PPB code indicates through-drive capability. An A4VSO (same/smaller) or gear pump can be flange-mounted to the rear. N00 = no auxiliary pump pre-fitted, through-drive shaft is present.
What are critical installation requirements?
  • Case Drain: Plumb directly to tank, backpressure ≤ 1.5-2 bar. Never tee into main return
  • Suction Line: Short & large-diameter; absolute inlet pressure ≥ 0.8 bar. Use 100 µm suction strainer
  • Pilot Pressure (EO1): Supply pilot oil ≥ 20 bar to the EO1 pilot port (usually X or pilot supply port)
  • Rotation Check: "L" = counter-clockwise from shaft end -- verify prime mover direction
  • Bleed: Fill case and suction with oil, vent before first start-up
Does EO1 need a separate amplifier?
Yes. The pump has the solenoid and LVDT but requires an external proportional amplifier (e.g. Rexroth VT 5035-1X or PLC analog output with current driver). Amplifier ordered separately.
Is a system relief valve still required?
Yes, absolutely. EO1 controls flow only -- install a properly sized system safety relief valve (e.g. DB type) set above max working pressure + margin (~10-15%).
What oil cleanliness is required?
Maintain ISO 4406 18/16/13 (NAS 1638 Class 8-9) minimum using a return-line filter β₁₀ ≥ 200 (10 µm nominal). Contamination is the #1 cause of A4VSO premature wear.
