R910994306 A4VS0125DR/30R-PPB13N00 Rexroth Axial Variable Piston Pump Germany

R910994306 A4VS0125DR/30R-PPB13N00 Rexroth Axial Variable Piston Pump Germany
R910994306 A4VS0125DR/30R-PPB13N00 Rexroth Axial Variable Piston Pump Germany

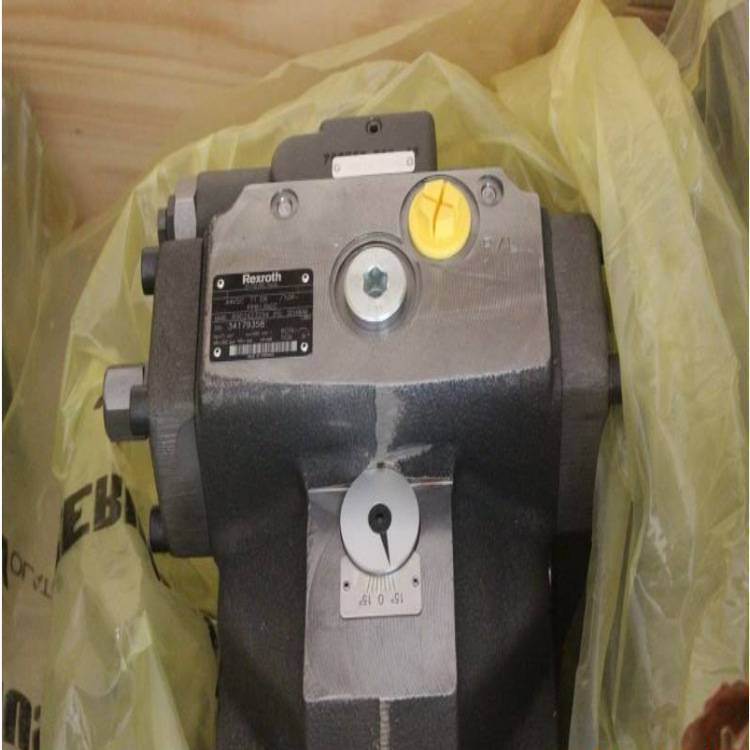

Large Image :  R910994306 A4VS0125DR/30R-PPB13N00 Rexroth Axial Variable Piston Pump Germany

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO
Model Number: R910994306 A4VS0125DR/30R-PPB13N00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 2 weeks
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100
Contact Now

R910994306 A4VS0125DR/30R-PPB13N00 Rexroth Axial Variable Piston Pump Germany

Description
Weight​: 87 - 88 Kg Compatible Fluids​: Mineral Oils (HL/HLP), Water Glycol (HFC)
Mounting Flange​: ISO 3019-2 (4-bolt, Metric) Shaft Type​: Parallel Key Shaft (DIN 6885)
Nominal Speed​: 1500 Rpm​ (Max ~1800 Rpm, Requires Good Inlet Conditions)
Highlight:

Rexroth axial variable piston pump

,

A4VS0125DR piston pump Germany

,

PPB13N00 variable piston pump

Parameter Category

Parameter

Specification / Description

General Information​

Manufacturer / Model​

Rexroth, A4VSO​ Series (Heavy-Duty Industrial)

Part Number​

R910994306

Pump Type​

Swashplate Axial Piston Pump (Open Circuit)

Hydraulic Performance​

Displacement​

125 cm³/rev​

Nominal Pressure (Continuous)​

350 bar​

Peak Pressure (Intermittent)​

400 bar​

Nominal Speed​

1500 rpm​ (Max ~1800 rpm, requires good inlet conditions)

Max. Theoretical Flow @ 1800 rpm​

~225 L/min

Control Type​

DR - Pressure Control (Pressure Limiting)​

Mechanical Interface​

Shaft Type​

Parallel Key Shaft (DIN 6885)

Rotation Direction​

Clockwise (R)​ (viewed from shaft end)

Mounting Flange​

ISO 3019-2 (4-bolt, metric)

Port Configuration​

PPB13: SAE flanged ports, metric screws, Series 13 interface

Through Drive​

N00: No through-drive (cannot mount auxiliary pump)

Media & Sealing​

Seal Material​

NBR​ (Standard for mineral oil)

Compatible Fluids​

Mineral Oils (HL/HLP), Water Glycol (HFC)

Weight​

Approx. 87 - 88 kg​

R910994306 A4VS0125DR/30R-PPB13N00 Rexroth Axial Variable Pisto</p> <table style= A4VSO40DP/10R-PPB13N00 A4VSO250LR2/30R-PZB13K34 A4VSO250LR2Z/30R-PPB13N00 A4VSO250DRG/30R-PPB13K04 A4VSO500LR2/30R-PPH13N00 A4VSO250HSE/30R-PPB13N00 A4VSO250DR/30R-PPB13K26 A4VSO71EM1018/10R-PPB13N00 A4VSO71LR2/10R-PPB13K06 A4VSO40EO1/10R-PPB25K01 A4VSO250EO1/30R-PPB13N00 A4VSO40DR/10R-PZB13N00 A4VSO250LR2DN/30R-PZB13N00 A4VSO250LR2DN/30R-PPB13K35 A4VSO40LR2D/10R-PZB13N00 A4VSO250LR2DN/30R-PPB13K31 A4VSO250DS1E/30W-PZB13T100N A4VSO250LR3D/30R-PZB13K99 A4VSO500HS/30R-PPH13N00 A4VSO71DR/10R-PPB13K01 A4VSO250HD1P/30R-PPB13N00 A4VSO500HSE/30L-PPH13N00 A4VSO500HSE/30R-PPH13N00 A4VSO250LR2D/30R-PPB13K27 A4VSO250EM1035/30R-PPB13N00 A4VSO40DRG/10R-PPB13K01 A4VSO250HD1B/30R-VZB13N00 A4VSO180EM1035/30R-PPB13N00 A4VSO250HD1GBT/30R-PPB13N00 A4VSO71HSE/10R-PPB13K33 A4VSO71HSE/10R-PZB13N00 A4VSO250EO2/30R-PPB13K35 A4VSO250EO2/30R-PZB13N00 A4VSO71DFR/10R-PZB13K27 A4VSO250EO1/30R-PPB13K51 A4VSO500HS/30L-PPH13N00 A4VSO40EM2007/10R-PPB13N00 A4VSO71DS1/10W-PPB13T041N A4VSO180DFR/30R-PPB13K33 A4VSO250LR2/30R-PPB13K04 A4VSO71LR2N/10R-PPB13KB2 A4VSO71LR2S/10R-PPB13N00 A4VSO250DRG/30R-PZB13N00 A4VSO125DR/30R-PZB13N00 A4VSO250DP/30L-PPB13N00 A4VSO40LR2/10L-PPB13K01 A4VSO250DRG/30R-PPB13K51 A4VSO250EO2/30R-PPB25K99 A4VSO500LR2N/30R-PPH13N00 A4VSO250LR2GN/30R-PPB13N00 A4VSO250LR2N/30R-PPB13K33 A4VSO125DRG/30R-PPB13K33 A4VSO71LR3G/10R-PPB13K27 A4VSO71HSE/10R-PZB13K99 A4VSO250EO1/30R-VPB13K01 A4VSO250LR2F/30R-PPB13N00 A4VSO250HD1/30R-PPB13K35 A4VSO71DR/10R-PZB13K33 A4VSO250HSE/30R-PZB13K35 A4VSO250HSE/30R-PZB13K99 A4VSO71DR/10R-PZB13K99 A4VSO71DR/10R-VPB13N00 A4VSO71DRG/10R-PPB13K33 A4VSO40LR2D/10R-PPB13K57 A4VSO250DRG/30R-PPB13K33 A4VSO71DR/10R-VZB13N00 A4VSO71DFR/10R-PZB13N00 A4VSO71DRG/10R-PPB13K27 A4VSO71DRG/10R-PPB13K26 A4VSO250LR3H/30R-PPB13N00 A4VSO71EM3035/10R-PPB13N00 A4VSO40LR2S/10R-PPB13N00 A4VSO500MA/30R-PPH13N00 A4VSO71DR/10R-PZB13K31 A4VSO71LR2/10R-PPB13K33 A4VSO250LR3N/30R-PZB13K99 A4VSO40DP/10R-PZB13N00 A4VSO71DRG/10R-PPB13K99 A4VSO250HSE/30R-PZB13K34 A4VSO71DRG/10R-PPB13K24 A4VSO125EO1/30R-PPB13N00 A4VSO71DRG/10R-PPB13K04 A4VSO40EM1039/10R-PPB13N00 A4VSO500DS1E/30W-PZH13N000N A4VSO71DFR1/10R-PZB13N00 A4VSO40DR/10L-PPB13N00 A4VSO500LR2D/30R-PPH13N00 A4VSO250HD1/30L-PPB13N00 A4VSO125DR/30R-PZB13K31 A4VSO250LR2Z/30R-PPB25N00 A4VSO71LR2Z/10R-PPB13O75 A4VSO355DRG/30R-VPB13N00 A4VSO125DRG/30R-PZB13N00 A4VSO250EM1007/30R-PPB13K01 A4VSO71DRG/10R-PZB13KB04 A4VSO125HD1GB/30R-PPB13N00 A4VSO250DRG/30R-PPB13K26 A4VSO500DRG/30R-VPH13N00 A4VSO250DRG/30R-EPB13N00 A4VSO250EM2035/30R-PPB13N00 A4VSO40LR2/10R-PPB13N00

FAQ - Frequently Asked Questions

Q1: What is the main application of the A4VSO 125 size pump?

A:​ The A4VSO 125 is a heavy-duty industrial pump​ designed for high-pressure systems requiring flows up to ~225 L/min. It is commonly used in metal forming (presses), injection molding, large machine tools, and heavy lifting equipment​ where 350 bar continuous pressure and robust construction are required.

Q2: How does the DR pressure control work?

A:​ The DR control is a pressure compensator. Below the set pressure, the pump delivers maximum flow (125 cc). When system pressure reaches the set point (adjusted via a screw on the control cover), the swashplate automatically de-strokes to maintain constant pressure, delivering only the minimal flow needed to compensate for system leakage. This saves significant energy compared to a fixed pump with a relief valve.

Q3: What drive motor power is required for this pump?

A:​ At 1500 rpm and 350 bar, the theoretical mechanical input power is approximately 109 kW. It is strongly recommended to use a 110 kW (≈150 HP)​ electric motor or engine to provide a safe margin for starting torque and peak pressure (400 bar) demands.

Q4: Can I add a gear pump to the back of this unit?

A:​ No.​ The code N00​ explicitly indicates no through-drive capability. The shaft does not protrude from the rear housing. If you require a charge pump or auxiliary pump, you must select a version with a through-drive suffix (e.g., K01, K02, etc.).

Q5: What are the critical suction (inlet) conditions?

A:​ This is a large displacement pump and requires excellent inlet conditions. At 1500 rpm, the absolute inlet pressure should be ≥ 0.8 bar​ (approx. -0.2 bar gauge). If running at the maximum speed of 1800 rpm, a pressurized inlet (boost pump) is mandatory​ to prevent severe cavitation and damage.
